Snap Hook with Swivel 60mm | DG-SH060

Quick Answer

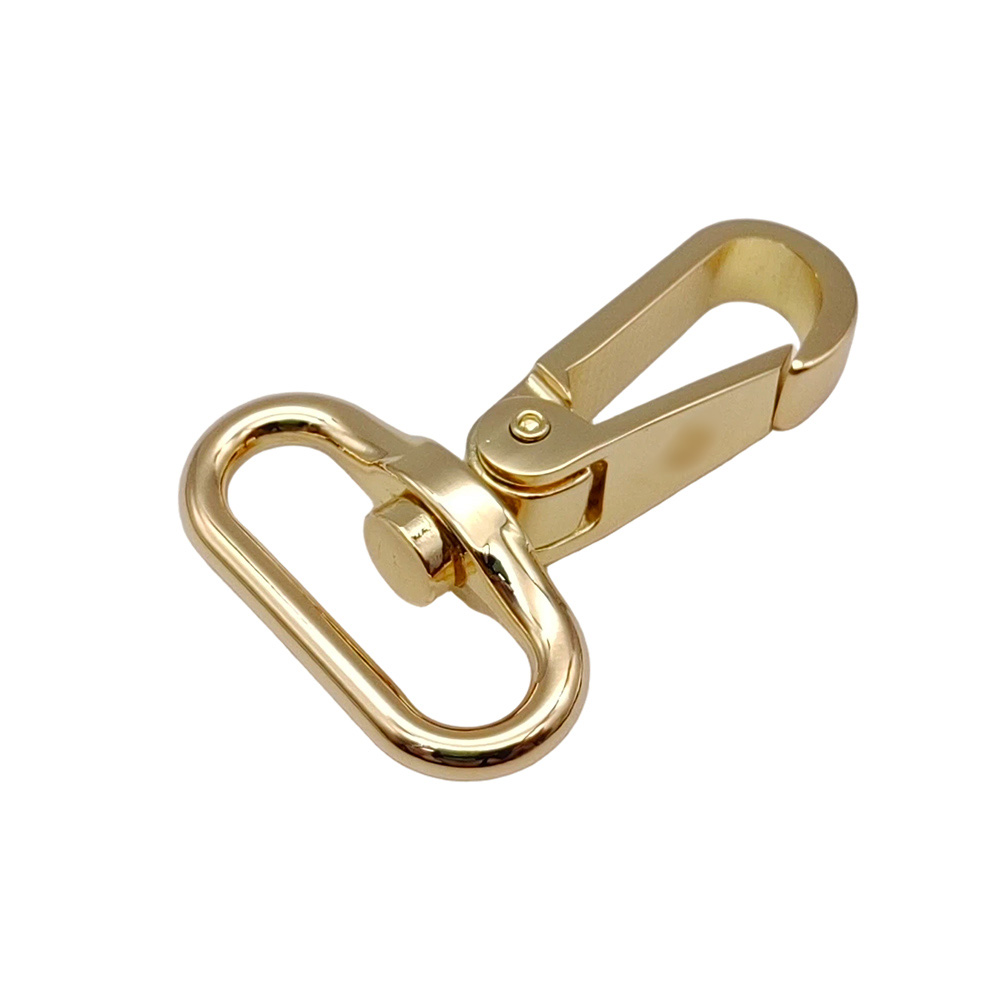

What is a snap hook with swivel? It is a metal connection fitting that combines a spring-loaded trigger, a rotating shaft and an oval connecting eye. This 60mm version is made from zinc alloy and shown with a gold-tone finish. The design allows a strap, cord, ring or leather tab to be attached while the hook body turns independently, helping reduce twisting during normal accessory use. Buyers commonly specify this format for handbags, purses, keychains, lanyards, small leather goods and DIY hardware projects. The supplied sample weighs approximately 31.3 g per piece.

Key Takeaways

• The 60mm format suits compact bags, lanyards, keychains and craft assemblies.
• The spring gate opens through trigger pressure and closes after release.
• The swivel shaft helps the attached strap move with less twisting.
• Zinc alloy supports a compact die-cast shape with a substantial metal feel.
• The oval eye must be checked against the buyer’s strap, cord or ring size.
• Gold-tone plating requires careful polishing, inspection and protective packaging.
• Pull-force performance should be confirmed before any demanding application.

How the Trigger, Eye and Swivel Work Together

A snap hook with swivel has three functional areas that should be evaluated separately during sampling. The trigger controls access to the hook opening. The spring returns the gate after the trigger is released. The swivel shaft connects the hook body to the oval eye while allowing relative rotation. In practical use, these parts work as one connector, but each has a different quality risk.

The phrase spring hook describes the spring-return principle, while clip hooks is a broader search term used for small attachment hardware. Buyers may also see this style described as a snap hook with swivel or a swivel hook snap. In some catalogues, swivel snap hooks and hook snaps are used as category labels for similar release hardware. These names are not always used consistently across marketplaces, so a technical drawing and sample photo should accompany the quotation.

During inspection, open the gate repeatedly and check for a consistent return. Then rotate the body through its normal range and look for rough spots, excessive looseness or visible interference between the shaft and the eye. A polished exterior cannot compensate for an inconsistent spring action or an incorrectly sized connection point.

Choosing the Correct Size for Bags and Lanyards

The supplied drawing indicates an overall length of approximately 60mm. It also marks approximately 40mm, 32mm and 11mm on different sections. These figures should be verified against the factory drawing before tooling or bulk production because buyers need to know whether a dimension refers to the eye opening, hook body or local width.

The overall length affects visual proportion and the amount of hardware visible on a bag strap. The eye opening affects assembly. The hook opening affects which ring or tab can pass through it. Local width affects how the component sits beside webbing or leather. A buyer who checks only the overall length may receive a part that looks correct but cannot be assembled efficiently.

For a prototype review, place the hardware beside the actual strap, cord and complementary ring. Test the complete assembly rather than measuring the hook alone. This is especially useful when comparing swivel snaps, a metal snap clip and a metal snap hook that appear similar in an online catalogue but have different internal clearances. A spring loaded snap hook should be checked in the same assembled condition, because the strap can affect access to the gate.

Material Choice: Zinc Alloy for Accessory Hardware

Zinc alloy is often selected when a project needs a shaped metal component with rounded contours, integrated details and a decorative surface. Die casting can form the hook body, eye and curved transitions efficiently, while trimming and polishing prepare the surface for finishing. The result is different from a stamped flat fitting and should be assessed as a three-dimensional component.

For a buyer comparing a snap hook with swivel with other metal options, the decision should include more than color. Review the required shape, weight, edge profile, spring assembly, surface finish, quantity and intended use. Zinc alloy is a practical option for fashion hardware and accessory components, but the final choice should be linked to the application and any available mechanical test data.

A gold-tone surface normally depends on casting preparation, grinding, polishing and plating control. Curved surfaces and recessed areas can show variation if the pre-plating surface is not consistent. Buyers should request a finish sample and inspect the visible front, inner curve, trigger area and oval eye rather than approving color from one flat photograph.

Quick Knowledge: Terminology Buyers Should Know

What is the difference between a fixed eye and a swivel eye?

A fixed eye keeps the hook and attachment point in one orientation. A swivel eye allows the hook body to rotate. When a strap changes direction during use, the swivel version can reduce forced twisting in the strap and make the connection feel more flexible.

Why do buyers use different names for the same fitting?

Search behaviour varies by industry. One buyer may search for a snap hook, another for hook and snap, snap and hook, or hook snap swivel. Some buyers also describe the mechanism as swivel and snap, especially when they want both rotation and quick release. In lanyard and purse sourcing, swivel snaps and swivel snap clips are also used. The actual geometry, opening, eye size and spring action matter more than the wording alone.

When should a buyer avoid relying on appearance?

Appearance cannot confirm spring performance, dimensional tolerance, plating adhesion or pull-force capability. A production sample, drawing and inspection plan should be reviewed together before a bulk order is released.

Comparison Table for Material and Hardware Selection

Applications and a Practical Buyer Scenario

For a handbag project, the oval eye can connect to a short leather tab while the hook attaches to a ring on the bag body. For a lanyard, swivel hooks for lanyards help the strap turn when the wearer changes direction. For a purse, swivel hooks for purses can connect a detachable strap without forcing the strap to remain in one fixed orientation. For a keychain, a key chain snap hook provides a compact release point for a ring or short cord.

A typical development issue appears when a designer chooses a component by catalogue photo alone. The first sample may have the correct color but an eye opening that is too small for the leather tab. The practical solution is to submit the real strap material, confirm the clear opening and approve a complete assembled sample. This approach is more reliable than changing the order after production.

Buyers may also compare clip snap hook, snap trigger hook and swivel snap clips when searching for alternatives. A product may be listed as a swivel snap hook even when the page uses a shorter name elsewhere. DG Buddy recommends confirming the product drawing, opening direction and attachment method before treating these names as interchangeable.

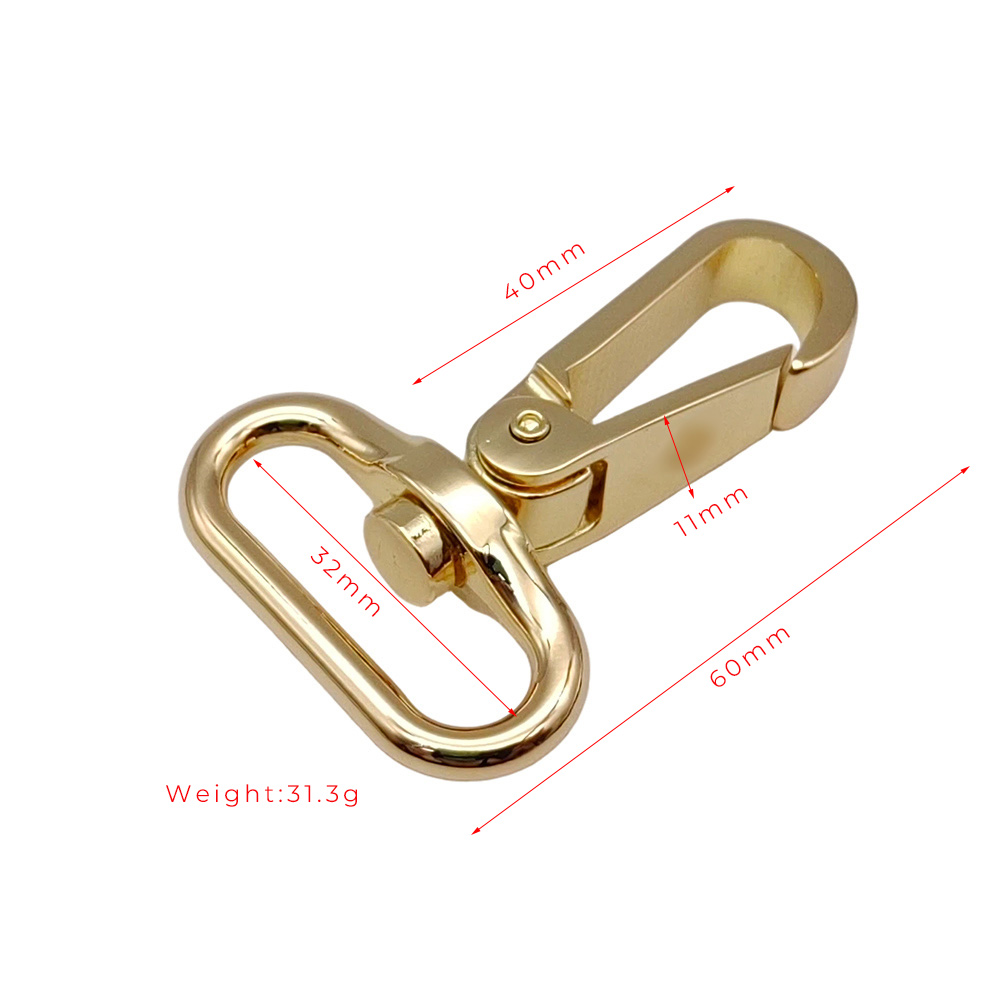

Technical Drawing Explanation

• Overall Length, approximately 60mm: This controls the visual scale of the fitting and helps the buyer check whether it suits a compact or larger accessory.
• Hook Body Length, approximately 40mm: This helps estimate how much of the metal body will remain visible after attachment.
• Oval Eye Dimension, approximately 32mm: This is relevant to strap, cord and ring compatibility, but the exact internal opening should be confirmed.
• Local Width, approximately 11mm: This helps buyers assess side clearance beside webbing, leather or another metal part.
• Hook Opening: The clear opening determines whether the complementary ring or tab can be inserted without forcing the spring gate.
• Weight, approximately 31.3g: Weight affects the hand feel of the finished product and shipping calculations, but it is not a load rating.
• Swivel Shaft: The shaft controls rotational movement and should be checked for smooth travel without excessive play.
• Spring Gate: The gate should close consistently after release and should not remain partially open during normal handling.

Manufacturing and Quality Checkpoints

In our factory, a suitable development route begins with zinc alloy preparation and die casting. Trimming removes casting overflow. Grinding and polishing refine the edges and curved surfaces. Assembly brings together the hook body, spring gate, shaft and eye. Electroplating then creates the requested color effect, followed by appearance checking, functional checking and protective packing.

Each stage has a buyer-facing reason. Poor trimming can leave marks near the gate. Insufficient polishing can make the gold-tone finish uneven. Incorrect assembly can create rough rotation or inconsistent closure. Plating variation may be more visible inside the curved hook than on the outer face. A practical QC inspection should therefore sample both appearance and movement, not just count pieces.

For larger projects, the inspection plan can include dimensional checks, gate cycling, swivel movement, finish comparison against an approved sample and packing review. If the buyer needs a defined pull-force requirement, that requirement should be agreed before production rather than assumed from the product name.

Factory Expert Tips for Purchasing

• Send the actual strap or leather thickness when requesting a quotation.
• Ask for a drawing showing internal openings, not only the overall length.
• Approve the gold-tone finish under the lighting used for product photography.
• Check the gate and swivel movement on multiple samples, not just one piece.
• Define whether the item is decorative hardware or a component with a tested load requirement.
• Use pearl foam and individual protection when the finish must arrive without rubbing marks.

Common Buying Mistakes

1. Choosing by color before checking the eye and hook openings.
2. Assuming a rotating fitting has a verified load rating.
3. Comparing catalogue names instead of comparing drawings and samples.
4. Ignoring the effect of polishing and packaging on a plated finish.
5. Approving a sample without testing it with the final strap or ring.
6. Requesting a custom logo before confirming the available marking area.

Buyer Decision Guide and OEM Options

This fitting is a good match for fashion brands, handbag developers, lanyard producers, small leather-goods factories and designers who need a compact rotating connector. It may not be suitable when the project requires certified safety equipment, a documented high-load rating or a different attachment geometry.

For OEM development, the normal discussion can cover custom mold review, laser logo, emboss logo, deboss logo, oil filling, electroplating, private label packaging, barcode, hang tag and retail box requirements. Color matching and size changes should be reviewed against the intended order quantity because each change can affect tooling, sampling and inspection.

The standard MOQ for this individual hardware item is 1000 pcs, negotiable based on order details. Free stock samples available; custom sample fees fully deductible from bulk orders. Courier charges are borne by the customer. Custom samples require a sampling fee.

Care, Storage and Transportation

Gold-tone plated hardware should be stored in a dry area away from direct contact with acidic materials, sweat residue, wet leather and unprotected metal parts. During assembly, use clean gloves or a soft cloth to reduce fingerprints and scratches. Do not place loose pieces together in a carton where the curved surfaces can rub during transportation. If the finished product will be exposed to humidity or frequent handling, the buyer should evaluate a production sample under the actual use conditions.

Why Choose DG Buddy for This Hardware

DG Buddy brings nearly 20 years of manufacturing experience to hardware development, with support for sampling, OEM communication, finish review, dimensional discussion and QC inspection. The useful advantage for a buyer is not a generic quality claim; it is the ability to discuss the spring, eye, swivel movement, surface preparation, packaging and intended assembly before the order is finalized.

FAQ

What is the lead time for this snap hook?

Sample time for custom or development samples is 5–7 Days. Production Time is 10–15 Days, and Delivery Time is 10–15 Days. Actual timing depends on finish approval, quantity, packaging requirements and whether a new mold or logo process is required.

What is the MOQ?

The standard MOQ is 1000 pcs (negotiable based on order details) because this is individual hardware rather than chain material. Buyers should provide the required color, logo, size and packaging details when requesting a quotation.

Can DG Buddy support OEM customization?

OEM customization can be reviewed for mold, logo, color, material, size, private label packaging, barcode, hang tag and retail box requirements. The final solution depends on the available marking area, order quantity and technical drawing approval.

Are free samples available?

Free stock samples available; custom sample fees fully deductible from bulk orders. Custom samples require a sampling fee. Courier charges are borne by the customer. A buyer should test the sample with the actual strap, ring or cord before approving bulk production.

What should buyers confirm about the plating?

Confirm the requested color, polishing level, plating process, appearance standard and packaging protection. The supplied image indicates a gold-tone finish, but the exact plating specification should be confirmed before publication or order placement.

Does the product have a certified load capacity?

No load-capacity or pull-force data has been supplied for this item. It should not be promoted as safety equipment or as suitable for demanding load-bearing use unless the buyer and factory agree on a test method and documented requirement.

What packaging is used?

The standard packaging is Pearl Foam + OPP Bag + Export Carton. Customized Packaging Available. The complete option is Pearl Foam + OPP Bag + Export Carton or Customized Packaging.

Request a Sample or OEM Quotation

Share your target size, strap or ring dimensions, finish reference, estimated quantity, logo requirement and packaging plan. DG Buddy can then review whether the standard 60mm format is suitable or whether a custom development route is more appropriate. Request a sample to evaluate the spring gate, swivel movement, eye clearance and gold-tone finish on the complete assembly.
