Zinc Alloy Swivel Hook with Welded Oval Ring — DG-SW040

Quick Answer

A swivel hook is a bag hardware fitting that combines a spring-loaded trigger gate with a rotating joint, so the attached strap or lanyard can turn freely without twisting. This swivel hook pairs a die-cast zinc alloy trigger body with a fully welded oval ring, giving it the load path of a snap hook while adding 360° rotation at the base. Buyers sourcing a hook with swivel construction for handbags, crossbody straps, or lanyards typically compare gate strength, ring weld quality, and plating consistency before committing to a supplier. At 25.3g and finished in light gold, it’s sized for mid-weight strap applications rather than heavy rigging use.

Key Takeaways

• This swivel hook uses a die-cast zinc alloy body with a fully welded oval ring for strap attachment.
• The swivel shaft rotates independently of the trigger gate, so straps don’t twist during use.
• A spring swivel hook design like this relies on gate tension, not a separate lock, for security.
• Overall hook length is 39.5mm with a 9.5mm gate opening, sized for standard bag strap webbing.
• At 25.3g, it suits handbags, lanyards, and keychains rather than heavy-duty rigging loads.
• Light gold electroplating is standard; other finishes are available through OEM customization.

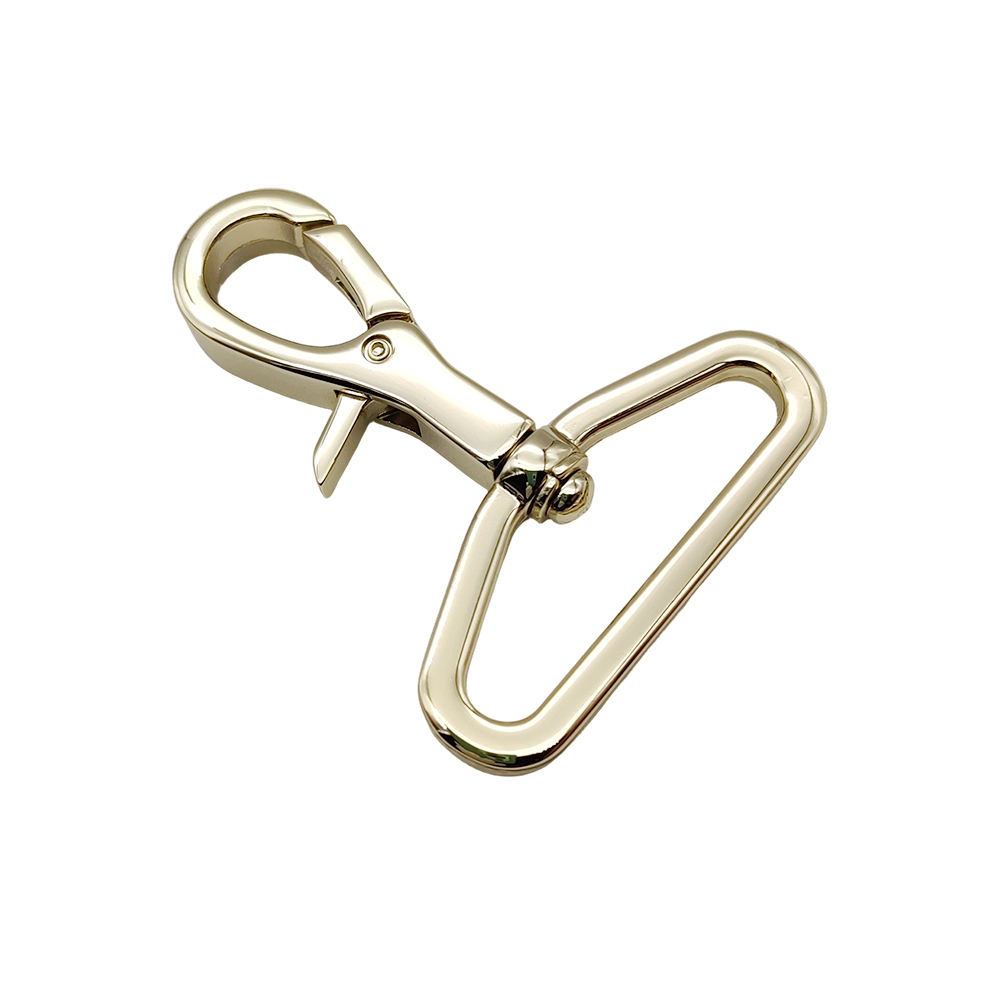

How the Swivel Joint Rotates

The swivel joint sits between the trigger hook and the ring, and it’s the part buyers ask about most. Inside the joint, a swivel shaft is riveted through the die-cast body, letting the ring end spin independently from the hook end. On a well-made swivel hook, this rotation stays smooth through the life of the part instead of stiffening up after repeated flexing. One thing buyers often ask is whether the joint binds under load — on this design, the pin diameter and bore tolerance are matched closely enough that the swivel and hook sections stay smooth even when the strap is under tension.

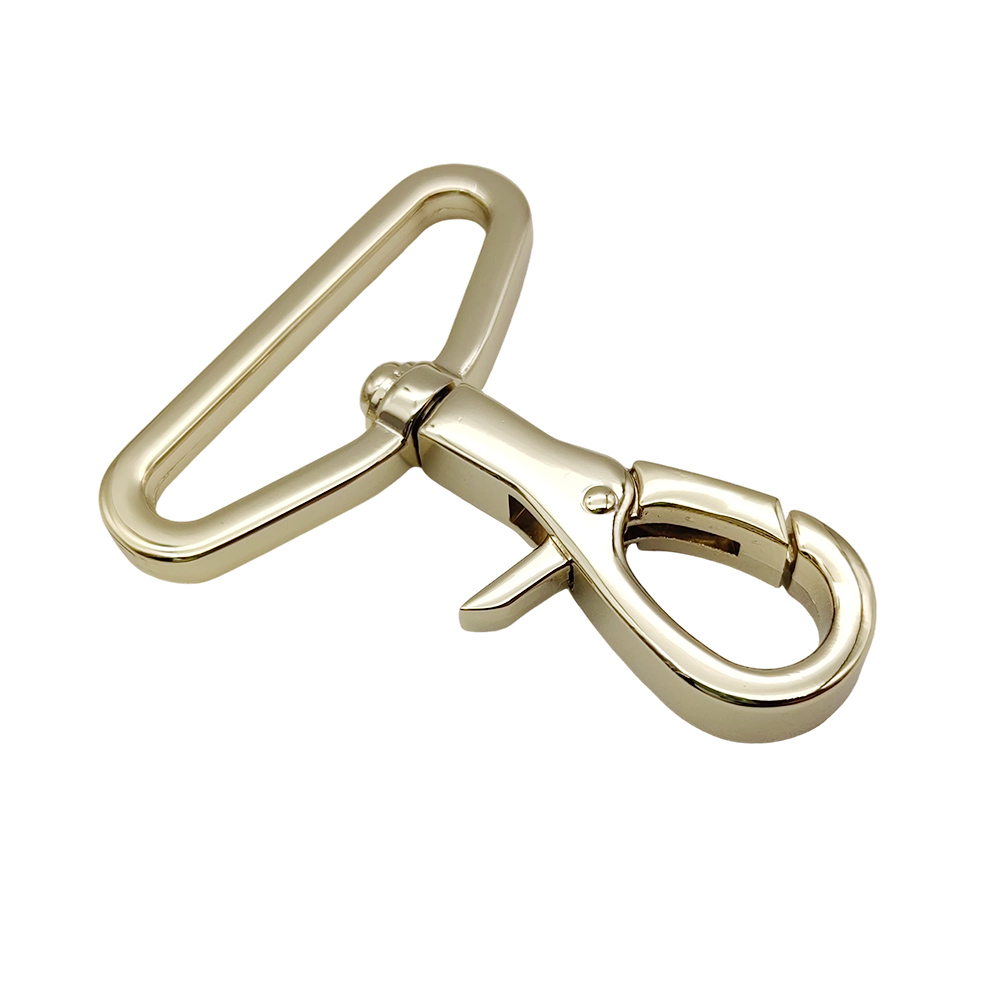

Spring Gate and Trigger Mechanism

The trigger gate is a stamped spring gate that closes against the hook nose under constant spring pressure. Pressing the small lever retracts the gate so the hook and swivel opening can slide onto a D-ring, strap loop, or lanyard clip; releasing it lets the gate snap hook shut again. This is a snap hook with swivel action rather than a screw-gate or twist-lock closure, which is why assembly lines can attach it in a single motion.

Some buyers refer to this same style as a swivel latch hook or a swivel hook latch, since the trigger works as a simple latch rather than a multi-step lock. During prototype development, we’ve found that gate spring force needs to be strong enough to stay closed under strap movement, but not so stiff that it’s hard to operate one-handed. Checking the swivel hook spring tension on samples before bulk ordering is the easiest way to avoid receiving a batch that feels weak or overly stiff in hand.

Quick Knowledge: Swivel Hooks Explained

What Is a Swivel Hook?

A swivel hook is bag or lanyard hardware that adds a rotating joint to a standard snap hook, letting the attached strap turn without twisting the hook body itself. This part is sometimes listed as a swivel eye snap hook in catalogs, since it combines a swiveling eye-style joint with a standard trigger closure.

Why Rotation Matters in Bag Hardware

Straps naturally twist as bags are picked up, worn, and set down. Without rotation at the joint, that twist transfers directly into the strap material, shortening its life and pulling stitching out of alignment. This is why an eye swivel hook design is preferred over a fixed-eye alternative on straps that see daily handling.

Snap Hook vs Carabiner Clip

Zinc Alloy Construction and Die Casting

This swivel hook is produced from zinc alloy using die casting, the standard process for bag hardware that needs a crisp, consistent shape at scale. In our factory, the zinc alloy die casting stage fills the mold cavity under pressure, capturing the rounded trigger profile and the ring seat in one shot before any secondary machining.

Zinc alloy is favored over softer metals for this part because it holds tighter dimensional tolerance through thousands of cycles than stamped sheet alternatives, while still taking a clean electroplating finish. Buyers sourcing swivel snap hooks for handbag programs often compare zinc alloy against other base metals at this stage before finalizing a spec.

Zinc Alloy vs Brass Bag Hardware

Ring and Loop Design

This swivel hook uses an oval welded ring rather than a stamped open loop, closing the ring into one continuous piece before it’s fitted onto the swivel shaft. An oval welded ring resists spreading under repeated strap tension in a way a butt-jointed ring cannot. On this part, the ring measures 40.5mm by 19.5mm, sized to accept common webbing and leather strap widths without the strap folding awkwardly inside the loop.

Sizing for Bag Straps and Lanyards

Overall hook length runs 39.5mm, with a 9.5mm gate opening that fits standard strap webbing and most lanyard cord. Buyers evaluating a swivel hook lanyard setup should check the gate opening against their cord diameter first, since a mismatch is one of the most common return reasons we see. For bag straps, the 40.5mm by 19.5mm ring comfortably accepts flat webbing up to roughly 15mm wide, which covers the majority of crossbody and tote strap widths on the market today.

Applications in Handbag and Lanyard Manufacturing

Swivel hooks for bags like this one show up most often on removable crossbody straps, where the hook and ring let a customer detach and reattach the strap without tools. One European handbag brand we worked with was sourcing a lanyard with snap hook fittings for a promotional tote line and kept running into stock parts that spun stiffly after a few weeks of samples sitting in a warehouse.

We reworked the swivel pin tolerance and switched to a slightly heavier spring gate for their production run, which solved the stiffness without changing the outward dimensions they had already approved. That kind of adjustment is common with lanyard snap hook orders, since cord diameter and how the hook will actually be handled day to day often only becomes clear once a brand tests real samples. A swivel hook snap action that feels stiff straight out of the packaging typically loosens after light use, but it should never require force to close.

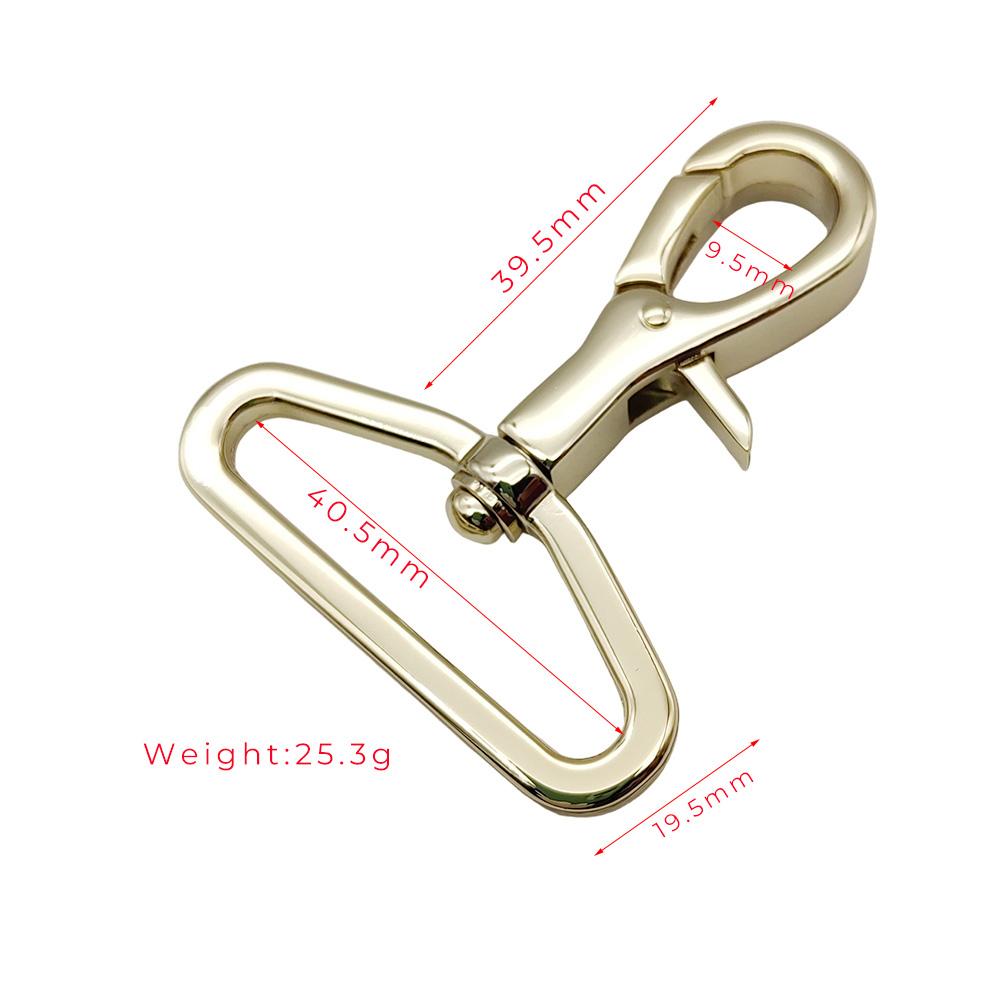

Reading the Technical Drawing

• Overall Length (39.5mm): Determines how far the hook extends from the strap end, which affects how it sits against a shoulder or hand.
• Gate Opening (9.5mm): Sets the maximum cord or loop thickness the trigger hook can accept; too narrow and installation becomes difficult.
• Ring Length (40.5mm): Controls how much webbing or leather can pass through the loop without folding.
• Ring Width (19.5mm): Works with ring length to determine strap width compatibility and how flat the strap lies.
• Weight (25.3g): A useful check for buyers comparing suppliers, since an underweight part often signals thinner wall sections in the die casting.
• Swivel Shaft Diameter: Not marked on the size chart but confirmed during tooling review, since it governs how much load the rotation point can carry.

From Raw Material to Finished Swivel Hook

Production starts with zinc alloy ingot, melted and injected into the mold under pressure during die casting. Parts come out of the mold with a thin flash line that has to be trimmed before anything else happens. After trimming, each piece goes through grinding to remove casting marks, followed by multiple rounds of polishing — this step matters more than it sounds, since the curved trigger nose and the inside of the ring are both hard to reach and easy to leave dull if polishing is rushed.

Once the base metal is smooth, the trigger spring and gate are assembled and the ring is fitted onto the swivel shaft. From there, parts go through electroplating to apply the light gold finish, followed by salt spray testing on sample batches to check how the plating holds up under humidity. Every finished piece then goes through 100% QC Inspection for rotation, gate action, and finish before packing.

Factory Expert Tips

• How to choose gate strength: Ask for the spring wire diameter, not just “strong” or “durable” — wire diameter is what actually determines gate tension.
• How to choose plating: Light gold and gunmetal tend to show wear differently; request salt spray test results if your product will see regular skin contact or humidity.
• How to avoid scratching during transit: Specify pearl foam separators between rows in the export carton rather than loose bagging alone.
• How to evaluate a supplier: Ask to see the mold for this exact swivel hook size rather than a similar one — shared tooling across sizes is a common shortcut that affects tolerance.

Common Buying Mistakes

• Choosing a swivel hook by finish color alone and ignoring gate spring tension.
• Assuming all snap hook sizes share the same ring wire diameter.
• Skipping a rotation test on stock samples before ordering bulk.
• Ignoring how zinc alloy wall thickness affects both weight and long-term durability.
• Not confirming whether the ring is welded closed or left as an open stamped loop.

Who This Swivel Hook Suits

This size and finish combination tends to work well for fashion brands developing removable straps, OEM factories building crossbody bag lines, and small-MOQ brands that need a stock part while their custom mold is in development. Luxury brands running fully custom hardware programs may prefer a heavier-gauge alternative instead, and designers prototyping a single sample piece are usually better served starting from stock before committing to tooling changes.

OEM Customization Options

Beyond the standard light gold finish, this swivel hook can be produced with a custom mold sized to your exact strap width, along with laser logo, emboss logo, or deboss logo marking on the trigger face. Oil filling is available for deep-engraved logos that need color contrast, and the full part can be finished with electroplating in nickel, gunmetal, or matte black to match a bag strap hardware set. For branded programs we also support private label packaging, barcode labeling, and hang tag attachment, plus a retail box option for direct-to-consumer lines.

Care and Maintenance

Zinc alloy hardware holds up well under normal handling, but humidity and prolonged sweat contact can dull electroplating over time, so breathable storage is better than sealed plastic for the long term. During transport, keep pieces separated to avoid metal-on-metal contact that can scratch the plating. For cleaning, a dry or lightly damp cloth is enough — acidic cleaners or prolonged water exposure can accelerate wear on the plating layer faster than on the base zinc alloy itself.

Frequently Asked Questions

What is the lead time for this swivel hook?

Free stock samples are available within 1-3 days. Custom sample development takes 5-7 days, and bulk production runs 10-15 days after sample approval, with delivery scheduled over a similar 10-15 day window depending on order volume and destination.

What is the MOQ for a custom swivel hook order?

As individual bag hardware, MOQ is 1000 pcs, negotiable based on your order details, finish requirements, and whether tooling changes are involved.

Can you build a custom mold for a different size?

Yes. We regularly develop custom molds for swivel hook and snap hook variations based on a buyer’s strap width or gate opening requirement. Tooling lead time is discussed once your drawing or sample is reviewed.

Do you offer free samples?

Free stock samples are available for evaluation. Custom samples require a sampling fee, which is fully deductible from your bulk order once confirmed. Courier charges for sample shipping are borne by the customer.

What finishes are available besides light gold?

Nickel, gunmetal, matte black, and antique finishes are all achievable through our electroplating line, along with oil-filled or painted logo options for branded programs.

Can you add a logo to the trigger hook?

Yes, laser marking, emboss, and deboss logo processes all work on this trigger face, and oil filling can be added for logos that need visible color contrast against the base finish.

Do you provide certification documentation?

We maintain quality certification documentation and are happy to provide the current valid certificates upon request during your sourcing evaluation.

How is packaging handled for export orders?

Standard packaging is pearl foam plus OPP bag inside an export carton, with customized packaging available for branded or retail-ready orders.

Why Buyers Work With DG Buddy

We’ve been producing bag hardware components like this swivel hook for nearly 20 years, which means our tooling team has already solved most of the tolerance and spring-tension issues a new mold might run into. We support full OEM development from drawing to finished part, keep sample turnaround fast so you’re not waiting weeks to test fit, and run QC Inspection before packing rather than spot-checking a sample batch. Communication stays direct with the engineer handling your project, not routed through a general sales queue, which matters most once a production run is underway and questions need same-day answers.
