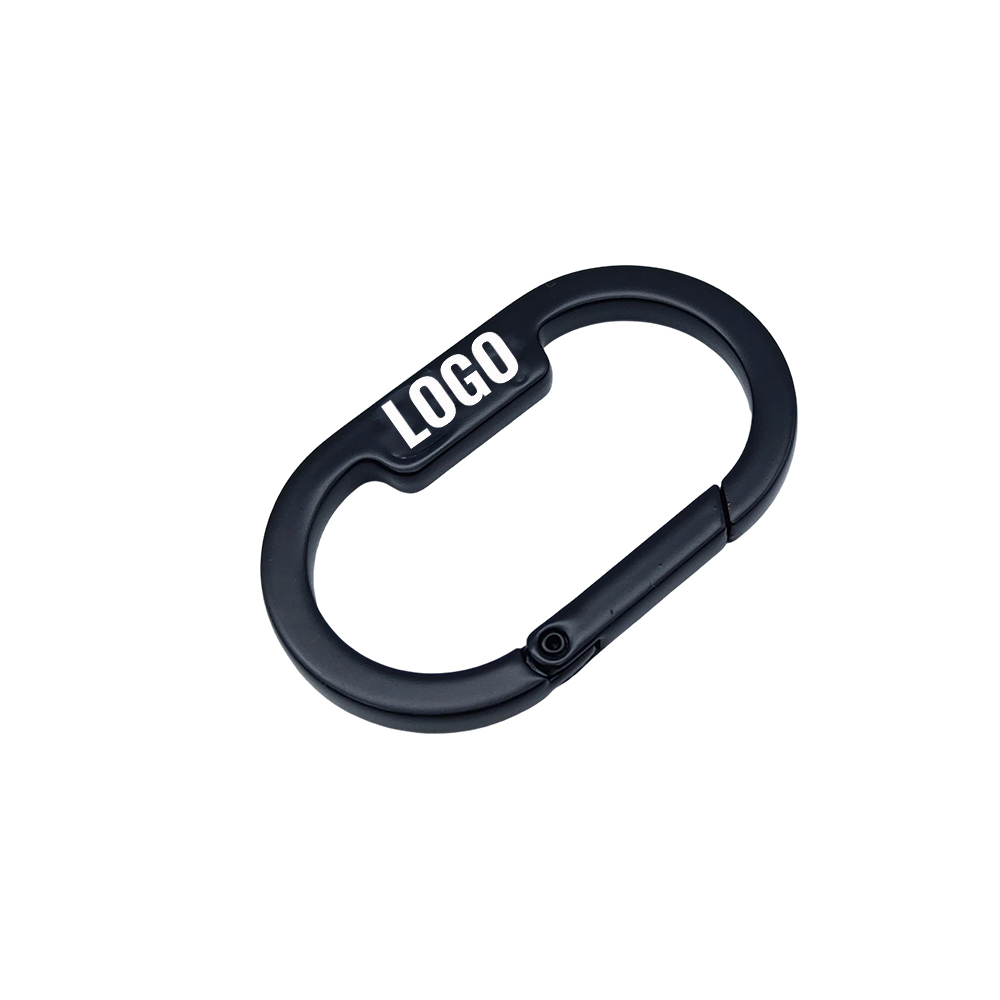

A 50mm oval spring gate ring built from die-cast zinc alloy with a 4.3mm wire diameter and integrated logo tab. The one-hand gate action suits handbag straps, chains, and keychain hardware needing reliable daily use. Nearly 20 years of manufacturing experience, free stock samples available, OEM customization supported.
A custom spring gate O-ring is an oval-shaped connector hardware fitted with a spring-loaded gate, used to attach straps, chains, or D-rings to handbags and accessories without stitching or riveting. It’s also sold under names like oval push gate ring or bag hardware O-ring, depending on the region. The DG-RG050 is a 50mm zinc alloy version with a 4.3mm wire diameter and a cast-in logo tab, built for one-hand operation and repeated daily use on luxury handbag hardware, bag charms, and keychain accessories.
Buyers new to hardware sourcing sometimes lump spring gate rings in with trigger snap hooks, but the two solve different problems. When the question comes up as spring gate ring vs snap hook, the short answer is: a trigger snap hook is designed for quick attach-and-detach cycles, which is why it has a lever and a rotating swivel eye. A spring gate ring, by contrast, is built to be opened once during assembly and then stay closed through the life of the product — the gate exists so the strap or chain can be threaded through during manufacturing, not so the end user swaps it in and out.
Some buyers search for this style as a custom logo carabiner ring, but true carabiner hardware uses a lever-action gate rather than the simple spring gate shown here, so it’s worth confirming which mechanism your development actually needs before tooling starts.

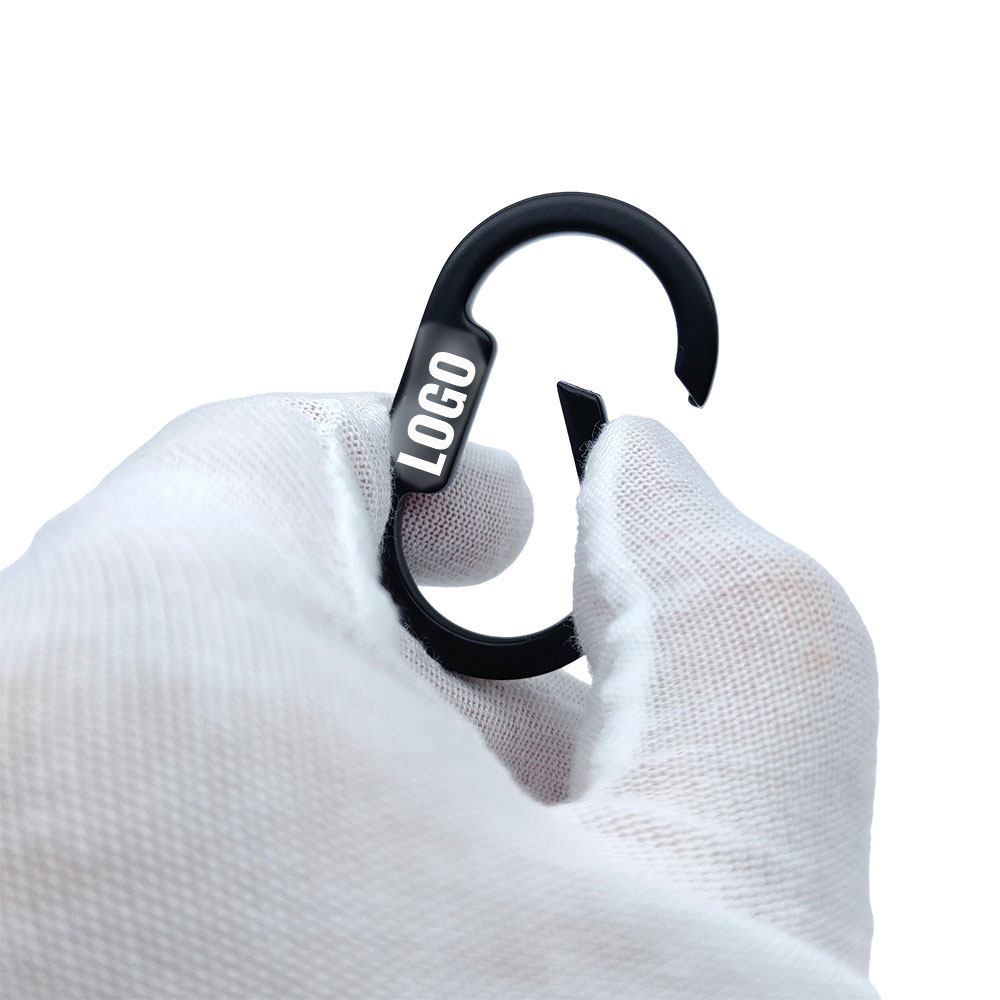

The gate is the single component most likely to fail on a low-cost version of this part. If the spring tension is too light, the gate can creep open under load and the ring slips off whatever it’s connecting. If it’s too tight, assembly workers on the brand’s side end up fighting the part, which slows down their production line and creates complaints that have nothing to do with the ring’s strength. We tune gate tension during tooling trials specifically so it holds firmly closed under normal handling but still opens with a clean, controlled motion.

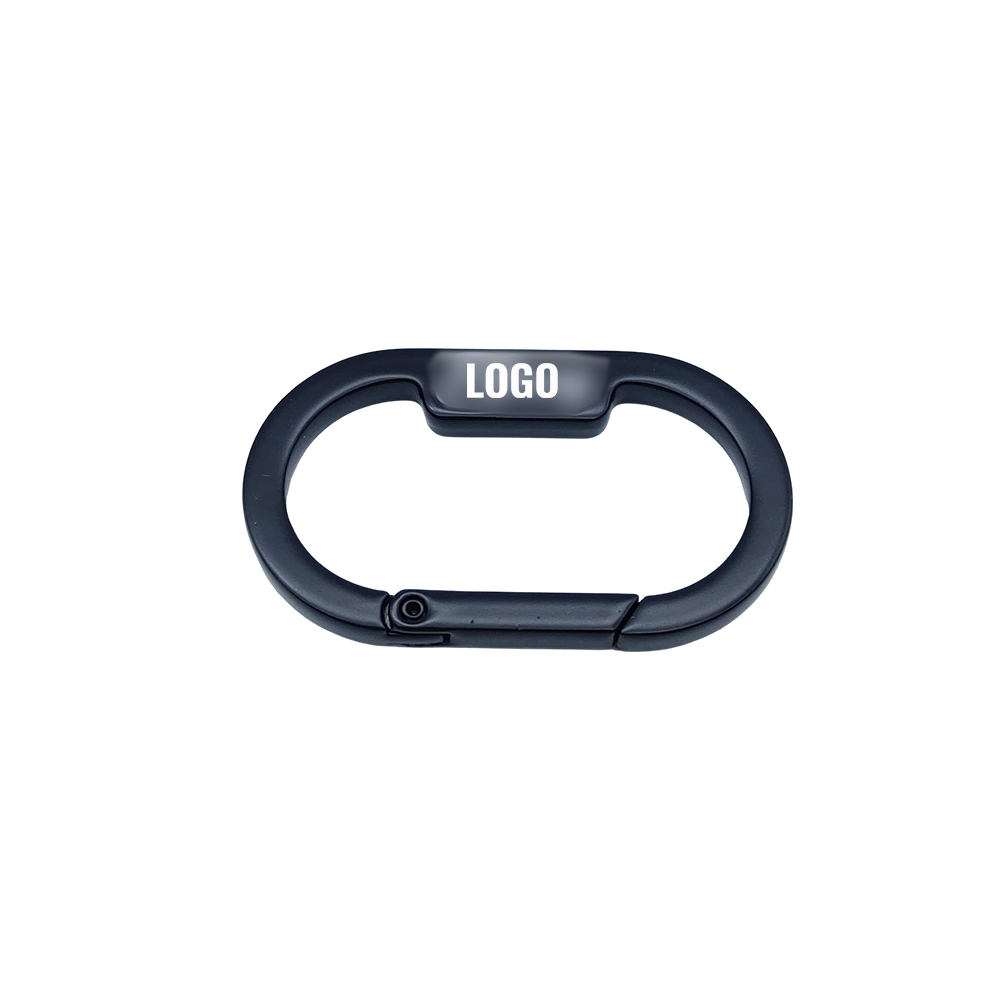

The oval shape on the DG-RG050 isn’t just aesthetic. An oval body gives more usable internal width for threading flat webbing or chain link through, compared to a round ring of the same wire diameter. This is a common request from bag brands working with flat bag chain, since a round profile can pinch or twist flat links at the connection point.
Material choice affects cost, finish quality, and how the part behaves under stress. Here’s how the two most common options compare for a part in this size and shape.
| Factor | Zinc Alloy (Die Cast) | Brass (Stamped/Cast) |
|---|---|---|
| Best manufacturing process | Die casting | Stamping or sand casting |
| Detail on logo tab | Sharp, since mold fills fine detail well | Softer edges unless CNC-finished |
| Weight | Lighter for the same volume | Noticeably heavier |
| Cost at 1000+ pcs | Lower | Higher, due to raw material cost |
| Plating adhesion | Very good with proper pre-treatment | Excellent, brass takes plating naturally |
| Tooling lead time | Shorter | Longer for cast versions |
| Typical use case | Fashion and mid-to-premium handbags | High-end leather goods where weight signals quality |
| Corrosion resistance (unplated) | Lower, plating is essential | Higher base resistance |
For the DG-RG050, zinc alloy is the right call: the part is a connector rather than a load-bearing chain link carrying constant tension, so the strength margin zinc alloy provides is more than sufficient, and the material lets us hold tighter tolerance on the logo tab. As a zinc alloy snap ring rather than a brass one, it also plates more evenly across the curved gate area, which is where uneven finish tends to show up first.

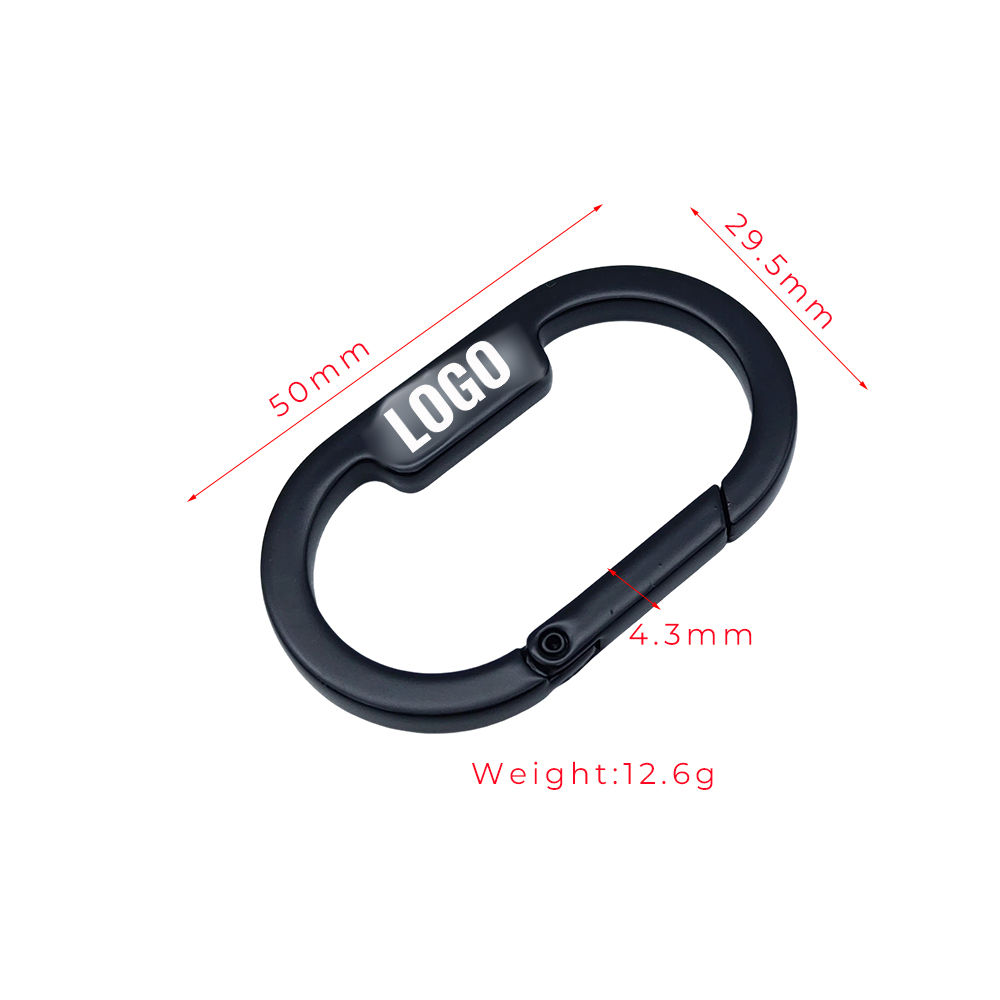

The dimensions on a hardware drawing aren’t just for reference — each one tells a buyer something about fit and function.
When customers compare suppliers, the manufacturing steps are usually where quality actually gets decided, so it’s worth walking through what happens to this part before it ships.
We start with raw zinc alloy ingot, which is melted and injected into the mold under pressure during die casting — this is what lets us hold a sharp, consistent logo tab shape across thousands of parts instead of the shape drifting piece to piece. Once the ring is cast, it goes through trimming to remove the flash left by the mold parting line, followed by grinding to knock down the trim marks.
From there the part moves into multiple stages of polishing before plating, which matters more than it sounds: a ring that skips a polishing stage will show plating that looks uneven once it hits the curved and recessed areas around the gate. After polishing, parts are electroplated to the requested finish, then a batch goes through salt spray testing to confirm the plating will hold up under humidity and handling over time. Every finished lot goes through 100% visual inspection before packing, checking gate action, plating consistency, and logo clarity, rather than relying on spot-checking a sample.
This part tends to work well across a range of buyers, but for different reasons:
Beyond the stock version shown, this ring can be adapted in several directions depending on your brand requirements. Most requests we get for a custom logo spring gate ring fall into one of the categories below. Custom mold development lets us change the overall size, wire diameter, or oval proportions to match an existing hardware family.
On the logo side, we support laser engraving, emboss, and deboss logo treatments in addition to the cast-in tab shown here, and oil filling can be used to add color contrast into an engraved or debossed logo for better visibility. Electroplating is available across the finish range typically used on handbag hardware, and for brand protection we can set up private label packaging with your barcode and hang tag included. Retail box packaging is available for accessory lines sold as standalone products rather than installed on a finished bag.
This style of ring shows up most often as a strap connector on crossbody bags, as a base ring for bag charms, and as a keychain attachment point. During one recent development for a European accessories brand, the customer’s original supplier had been shipping a similar ring where the gate would loosen after a few months of daily use, leading to returns.
The root cause turned out to be a gate design that relied on spring tension alone without a proper stop point, so the metal fatigued faster than expected. We adjusted the gate geometry during our own tooling trial to include a defined closed-position stop, which reduced reliance on spring tension alone to keep the ring shut. It’s a small design detail, but it’s the kind of thing that only shows up when a factory is actually engineering the part rather than just casting from an existing mold.
Zinc alloy hardware with a plated finish responds differently to environmental exposure than raw metal, so care advice should be specific to this construction. Humidity is the main long-term risk, since moisture trapped against the plating in storage can eventually lead to surface oxidation at pinholes in the plating layer. Sweat and skin oils from handbag straps carry salts and acids that accelerate this same process, so parts in constant skin contact benefit from occasional wiping with a dry cloth.
During storage, keeping hardware away from direct contact with other metal parts reduces surface scratching, and during transportation, individual bagging is the simplest way to prevent finish damage from parts rubbing together. For cleaning, a dry or slightly damp soft cloth is sufficient — solvent-based cleaners can strip plating over repeated use.
Standard MOQ is 1000 pieces, though this is negotiable based on your order details, including whether you’re using our stock finish or requesting a custom plating color.
Custom samples requiring new tooling or plating typically take 5–7 days. If you’re working from our current stock finish, sample turnaround is usually 1–3 days since no new setup is required.
Yes, stock samples are free. Custom samples that require tooling or non-standard finishes carry a sampling fee, which is fully deductible from your bulk order once confirmed. Courier charges for samples are borne by the customer.
Yes. We support cast-in logo tabs, laser engraving, emboss, and deboss logo treatments, along with oil filling for color contrast on engraved logos.
Production time is 10–15 days, and delivery time is a further 10–15 days, depending on destination and shipping method.
Standard packaging is pearl foam plus OPP bag inside an export carton. Customized packaging, including private label boxes and hang tags, is available on request for OEM orders.
We maintain quality certification documentation and are happy to provide the current valid certificates upon request during your sourcing evaluation.
Yes, custom mold development is available if you need a different overall size, wire diameter, or gate width to match an existing hardware set.
A spring gate ring is a closed oval shape with a simple spring gate meant to be opened once during assembly. A trigger hook has a lever-operated gate and a rotating eye, built for repeated attach-and-detach use. If your product needs the end user to connect and disconnect it regularly, a trigger hook is usually the better fit; if it’s assembled once and stays closed, a spring gate ring is typically the lower-cost, lower-complexity option.
Yes — as an OEM spring gate ring manufacturer based in China, most of our customers are overseas brands buying at wholesale volume rather than local buyers. We function as a custom logo bag hardware supplier for both stock parts at MOQ and fully tooled OEM development, and we’re set up to handle export documentation and international shipping as part of a standard order.
We’ve been running this factory for close to two decades, which mostly shows up in the details buyers don’t see until something goes wrong elsewhere — gate tension that’s actually been tuned rather than left at mold default, plating that’s been through salt spray testing before it ships, and engineering support that can adjust a design during tooling rather than after a customer complaint. Sampling is handled quickly because we manage it in-house rather than outsourcing, and every production lot goes through 100% inspection before packing. If you’re comparing suppliers, we’re glad to walk through drawings together and flag anything in a spec that might cause problems downstream before tooling starts.
If you already have technical drawings for a similar part, send them over and we can flag any tolerance or gate-tension details worth adjusting before tooling starts. If you’re still evaluating suppliers, a free stock sample is the easiest way to check gate action and finish quality firsthand. We’re happy to review your bag chain or hardware set and suggest where this ring fits alongside your existing components.
Want to see how our hardware feels in your hand? Download our 2026 Premium Hardware Catalog today, or request a batch of free stock samples for your next quality test—we usually ship them out within 12 hours.
| Field | Detail |
|---|---|
| Product Name | Oval Spring Gate Ring |
| Model | DG-RG050 |
| Material | Zinc Alloy |
| Weight | 12.6g |
| Structure | Oval Ring + Spring Gate + Logo Tab |
| Finish Options | Matte Black (shown); Gunmetal, Nickel, Antique Brass available on request |
| Size / Dimensions | 50mm (L) x 29.5mm (W), Wire Diameter 4.3mm |
| Application | Handbags, bag charms, keychains, wallet-on-chain |
| Installation Method | Spring gate opens to thread onto strap/chain/D-ring |
| Manufacturing Process | Die Casting |
| Surface Treatment | Electroplating |
| Customization | OEM / ODM |
| Packaging | Pearl Foam + OPP Bag + Export Carton or Customized Packaging |
| MOQ | 1000 pcs (negotiable based on order details) |
| Sample Time | 5–7 Days |
| Production Time | 10–15 Days |
| Delivery Time | 10–15 Days |
