DG-RG044 Oval Spring Gate Ring – Zinc Alloy Bag O-Ring Hardware

Oval Spring Gate Ring – Zinc Alloy Bag O-Ring Hardware

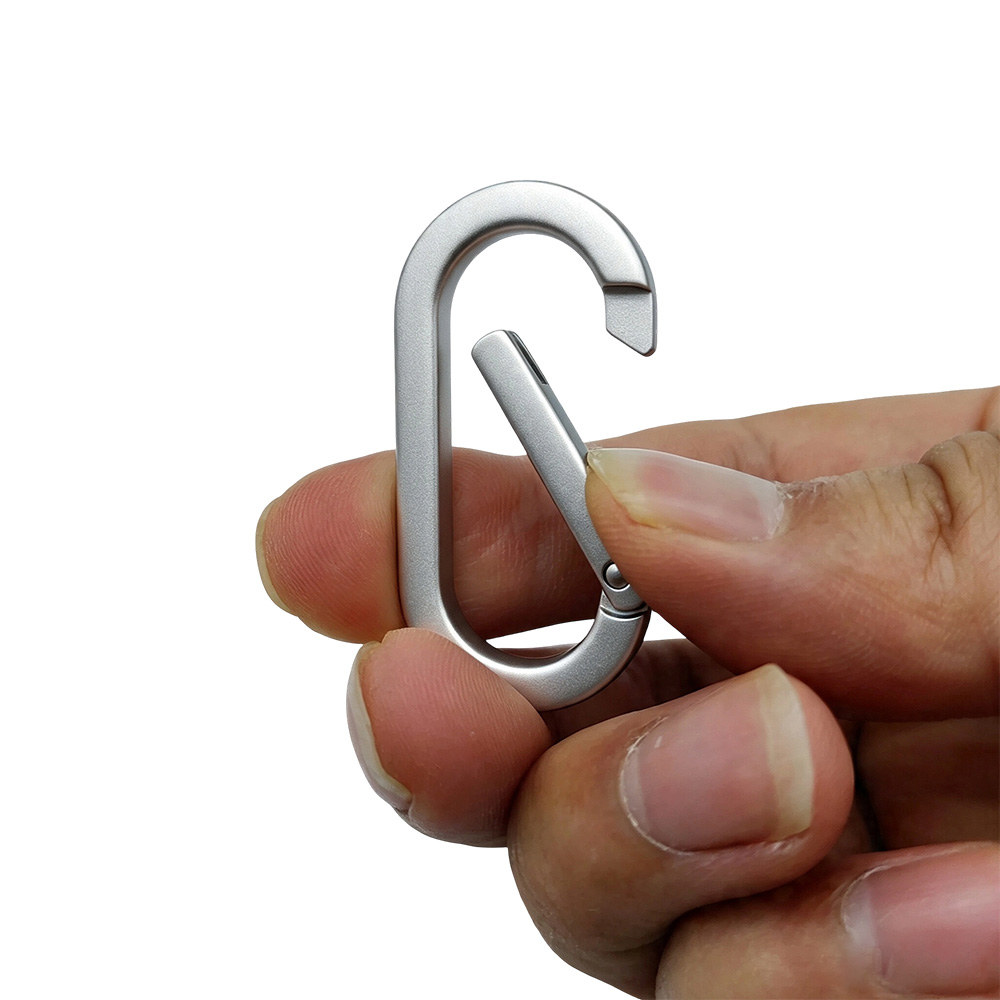

If you’ve ever sourced spring gate ring hardware for a strap or chain project, you already know the spec sheet only tells half the story — the part that actually matters is whether the gate snaps shut the same way on piece #1 and piece #10,000. This oval spring gate ring is built as a tool-free connector: press the gate inward, loop it over a strap end or chain link, and it closes back into a clean oval profile. Below we walk through the details that separate a dependable oval spring gate ring from one that ends up in a customer return pile.

What This Oval Spring Gate Ring Actually Is

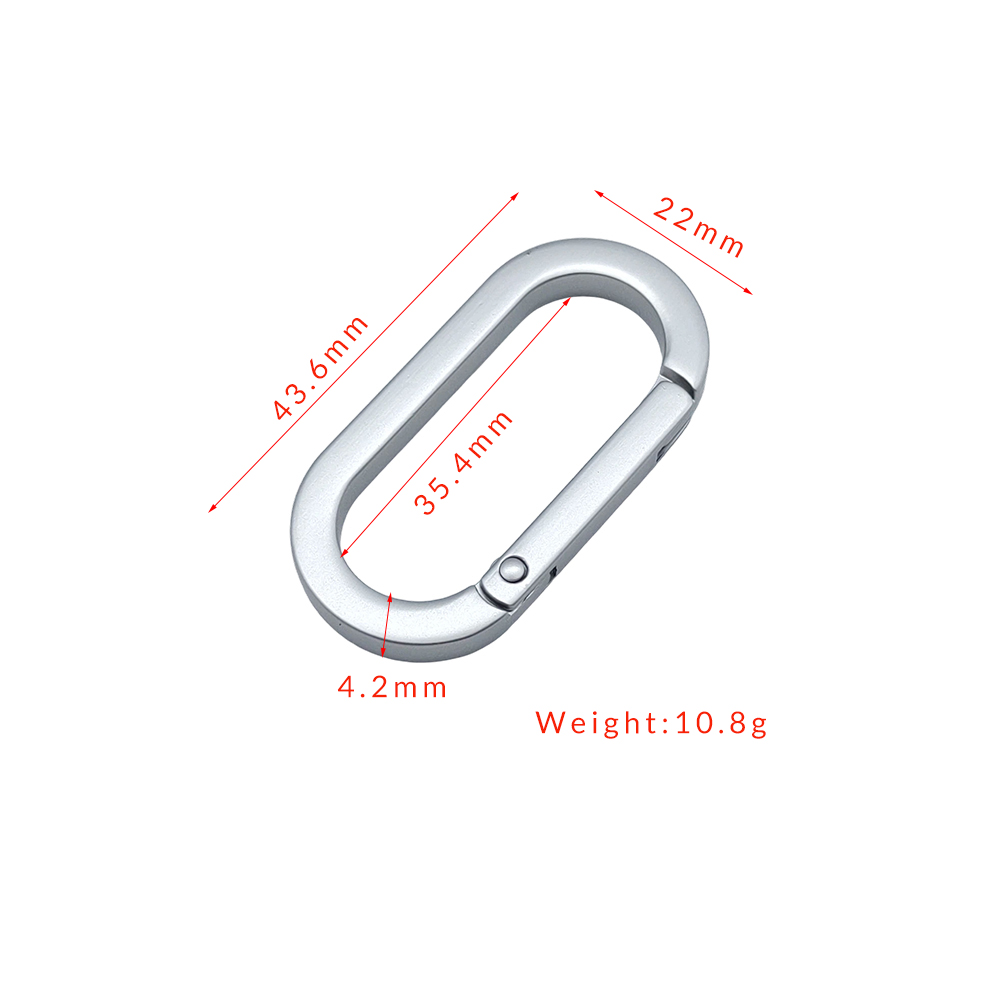

An oval spring gate ring is a cast metal connector with one straight bar hinged on a pivot pin and held closed by internal spring tension — press the bar inward and it swings open along the long axis of the oval, then a return spring pulls it flush shut the moment you release it. This particular metal spring gate O-ring measures 43.6mm x 22mm overall, with a 4.2mm wire gauge and a 35.4mm gate opening,

which is enough clearance to loop over most 20-25mm webbing or a mid-size chain link. In our factory we treat this as a hybrid part — it does the connecting job of a snap hook but keeps the closed silhouette of a ring, which is why buyers use it both as a functional strap joiner and as a visible design element on the bag’s hardware line.
NADCA die casting industry standards

The Gate Closure Is Where Most Buyer Complaints Actually Start

One thing buyers often ask us about isn’t the ring’s shape — it’s whether the gate will hold. On lower-grade casting runs, the return spring is either too weak (the gate doesn’t fully seat flush, so a strap edge or thread catches in the gap) or too stiff (the gate feels gritty and buyers assume it’s already worn out of the box). Neither failure shows up on a spec sheet, only in hand.

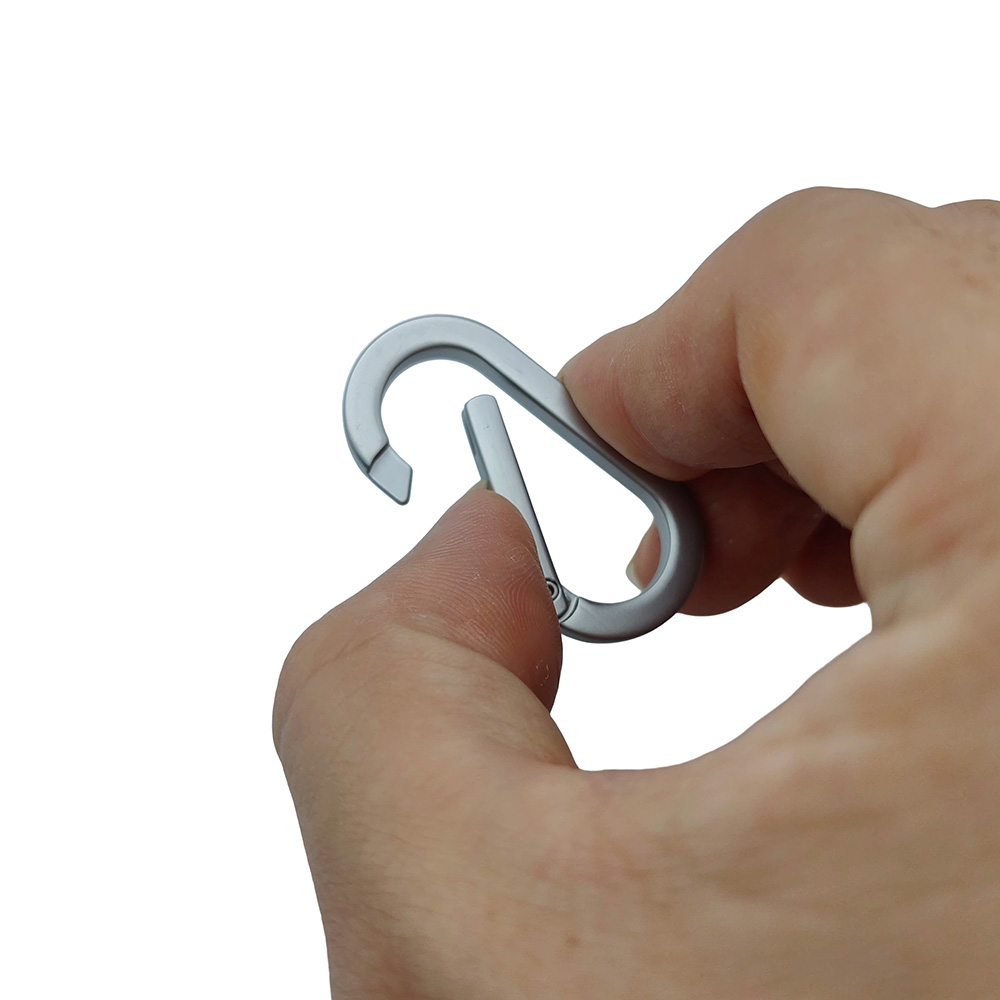

During mass production, we run a closed-gate flush test on sample batches from every mold cavity — the bar has to sit level with the ring body with zero visible gap, checked under raking light where a sub-0.2mm lip is easy to spot. This kind of push gate snap hook mechanism is only as good as its weakest cavity, which is why single-cavity spot checks aren’t enough for a bulk order — we sample across cavities, not just off the first shot.

Pivot Wear and Spring Fatigue Over Repeated Use

The second real concern is longevity of motion, not just day-one function. A spring gate ring on a rotating handbag strap can see thousands of open-close cycles over its working life, and the pivot pin is the first point of wear. We use a hardened pin with a slightly oversized head relative to the barrel diameter, which keeps the bar from developing side-play that eventually lets the gate sit crooked.

For plated finishes, we also watch for micro-abrasion at the pivot point after cycling — a thin plating layer there will wear through to base metal faster than the rest of the ring, which is a detail buyers rarely think to ask about until a returned sample shows brassing at the hinge. As a quick release ring, its whole value proposition depends on that pivot staying tight through the product’s usable life, not just through the first demo click.

Getting Size and Finish Consistent Across a Bulk Order

Sizing sounds simple until a buyer is matching this ring to an existing chain link or an already-approved strap width, and the gate opening turns out a millimeter tighter than the sample. We hold dimensional tolerance on the 35.4mm opening and the 4.2mm wire gauge specifically because those two numbers determine fit, not the outer 43.6mm length. Finish consistency is the other recurring pain point in this category — polished silver, gunmetal, and gold-tone platings can drift in tone batch to batch if the plating bath isn’t controlled,

which is a well-known headache across bag hardware sourcing generally. We run finish samples against a retained reference piece before releasing a production batch, and we recommend buyers do the same on their end with an approved golden sample before mass production starts, especially for mixed-metal hardware sets where this ring needs to match a zipper pull or buckle from the same collection.

Inside the Factory: From Zinc Casting to a Closed Ring

This ring starts as die-cast zinc alloy, chosen over stamped steel here because the closed oval shape and integrated pivot boss are easier to hold to tolerance in casting than in stamping and folding. After deburring, parts go through barrel polishing before plating — this step matters more than it sounds, since any casting flash left on the gate’s contact edge will telegraph straight through even a heavy plating layer and show up as a rough seam line.

We plate in small batches and run a 48-hour salt spray test on sample lots from each production run to check for early corrosion at the pivot and along the plating edge; any lot that shows spotting before the full test window gets pulled rather than shipped. Finished pieces go through full-shipment inspection rather than spot sampling alone, checking gate closure, plating tone, and weight consistency before packing — with weight running close to our target 10.8g per piece as a quick proxy for casting density.
ISO 9227 salt spray testing standard

Custom Options for OEM/ODM Buyers

Most buyers sourcing this as bag ring hardware wholesale aren’t ordering it off the shelf — they need it to match an existing hardware line. We can open a dedicated mold for a different wire gauge or overall size based on your drawing, adjust the gate opening to fit a specific webbing width, and match plating to a Pantone or physical reference sample.

Custom logo marking on the flat face of the wire is possible on larger-gauge versions, done by laser engraving for fine detail or embossing for a bolder mark, depending on the depth you need. For buyers testing a new hardware set, we’re happy to work from your sketch or an existing sample as a custom spring gate ring manufacturer reference point rather than starting from a blank brief.

Care and Maintenance

Zinc alloy hardware like this holds up well in normal use, but a few storage habits extend plating life meaningfully. Keep unused stock in a dry environment away from direct humidity — condensation sitting in the gate hinge is the most common cause of early spring stiffness we see reported. Avoid prolonged contact with saltwater or high-chlorine environments, which accelerates plating breakdown at the pivot faster than on the flat ring body. For buyers shipping into the EU market, we maintain quality certification documentation and are happy to provide the current valid certificates upon request during your sourcing evaluation, so this isn’t something you need to chase down after the order is already placed.

Where This Ring Shows Up in Real Production

We’ve seen this style specified in a few recurring scenarios. A mid-size European handbag brand redesigning a crossbody strap needed a connector that could be removed for strap swaps without visible screws — the oval spring gate ring became the joint between the leather strap tab and the bag’s D-ring, chosen specifically because the closed silhouette read as intentional rather than utilitarian.

A Southeast Asian outdoor gear brand building a modular tote used it to let customers detach and reposition a shoulder strap between two anchor points, where the gate’s holding strength under lateral pull mattered more than finish. And in a fast-fashion accessories line producing charm-and-bag combinations, the ring served purely as a quick-attach point for interchangeable bag charms, where finish matching across a multi-piece hardware set was the deciding factor over strength. These are illustrative composite scenarios based on common sourcing patterns we see, not specific named clients.

Frequently Asked Questions

What’s the minimum order quantity for this spring gate ring?
The standard MOQ is 1000 pcs, and this is negotiable based on your specific order details — smaller trial quantities can sometimes be arranged alongside a related hardware order.

Can I get a sample before committing to a bulk order?
Yes. In-stock sizes ship as free samples, with the express cost covered by you. If you need a custom size or finish that requires new tooling, that sample carries a fee which is fully deductible from your bulk order once confirmed.

How long does production take once I place an order?
Production runs 15-20 days after the order and any required deposit are confirmed, followed by 10-15 days for shipping depending on the destination and method chosen.

What wire thickness works best for my strap width?
As a general rule, the gate opening should clear your strap or webbing thickness with a small margin for movement — this 4.2mm wire gauge version suits most standard bag webbing, but we can adjust the gauge and opening size for thicker leather straps or chain links on a custom order.

Do you offer custom plating colors to match our other hardware?
Yes, we can match a physical reference sample or a Pantone reference for custom orders, and we recommend approving a golden sample against your existing hardware line before mass production to avoid tone mismatches across a set.

Is this hardware compliant for hardware sold into the EU market?
We maintain quality certification documentation covering relevant compliance standards and are happy to share the current valid certificates upon request during your sourcing evaluation.

Can the gate mechanism be engraved with our logo?
Logo marking is possible on the flat face of the ring, typically via laser engraving for fine line detail, and is best suited to the standard or a slightly upsized wire gauge for clarity.

What happens if a batch arrives with inconsistent gate closure?
This shouldn’t happen given our full-shipment inspection process, but if you notice inconsistency on arrival, flag it with your batch and packaging reference so we can trace it back to the specific cavity or production run.

Sourcing This Ring for Your Next Order

If this oval spring gate ring is close to what you need but not an exact match on size, gauge, or finish, send over your drawing or a reference sample and we’ll confirm feasibility and lead time before you commit to tooling. For buyers comparing multiple oval spring gate ring for bag straps options, it’s usually faster to start with your target strap or chain thickness and let us work backward to the right gate opening than to start from a fixed ring size.

Related Products & Categories

• Handbag Turn Lock Antique Brass Bag Lock Hardware
• Swivel Snap Hook for Bags in Zinc Alloy for Handbag Straps
• Handbag Lock Hardware
• Zipper Pull Hardware

Conclusion

The DG-RG044 oval spring gate ring is built to solve the one thing buyers actually worry about with this hardware type — a gate that closes flush and stays tight order after order. Whether you’re matching an existing hardware set or starting a new strap design from scratch, our team can turn around a sample within days and walk you through sizing, finish, and MOQ options for your specific bag line. Send us your target strap width or a reference photo, and we’ll confirm feasibility before you commit to a bulk order.
