Metal Rings for Bags, 25.5x16mm Welded Oval Iron Ring DG-MR016

Quick Answer: What Are Metal Rings for Bags?

Metal rings for bags are small closed rings, usually round, oval or D-shaped, that connect straps, handle tabs, charms and webbing loops to a bag body. The DG Buddy DG-RG016 is a welded oval iron ring in gunmetal, with a 25.5 mm x 16 mm inner opening, a 4 mm wire diameter and a weight of 8 g per piece.

Sewing teams and brand developers use bag rings like this on shoulder straps, crossbody bags, backpacks and tote handles. The oval opening takes a 16 mm strap or leather tab without twisting, and the welded seam closes the loop so nothing can slip off.

Key Takeaways

• The inner opening is 25.5 mm x 16 mm, so measure strap width and folded thickness before ordering bag rings.
• A 4 mm iron wire gives a stiff profile at only 8 g, which keeps bag weight under control.
• The weld seam is ground and polished before plating so it sits flush against leather and webbing.
• Gunmetal is shown here; nickel, gold, silver and black plating can be matched to your other hardware.
• Iron is a cost-efficient base for a purse ring, provided the plating system is specified and tested.
• MOQ is 1000 pcs (negotiable based on order details), and free stock samples are available.

Quick Knowledge: Welded Rings in Bag Hardware

What is a welded ring?

A welded ring starts as a straight piece of wire. It is bent into a loop, and the two ends are joined by resistance or butt welding. The joint is then ground smooth. With no mold involved, tooling cost stays low, which is why welded handbag rings usually cost less than cast versions of the same size.

Is an oval ring the same as an O ring?

In everyday trade language, yes. Many buyers type o ring for purses into a search box when they want a closed loop that is not D-shaped. Strictly, a round O ring has equal diameters, while this oval is longer than it is wide, but both work as handbag o rings.

Oval vs round vs D shape

Reading 25.5 x 16 x 4: Sizing the Opening Before You Order

One thing buyers often ask is which strap width fits. The answer depends on thickness as much as width. A 16 mm inner width suits a 15 mm strap comfortably, but if you fold a leather tab in half and stitch it, the folded thickness may fill most of the opening. For a ring for bag strap use, we suggest leaving at least 1 mm of clearance on each side.

Choosing rings for bags starts with this clearance. The 25.5 mm length gives room for a swivel snap hook to sit inside the ring, which matters if the strap is detachable. Adding the 4 mm wire on both sides, the outer size works out to roughly 33.5 mm x 24 mm. Check your pattern against the outer size too, because bag strap rings that look fine on paper can crowd a small clutch once wire thickness is added.

Iron Wire and One Weld Seam: What You Are Buying

Iron is the base metal here. It bends into a clean oval and takes plating well when surface preparation is done properly. It is not a stainless alloy, so the plating layer is what protects it, and we treat plating specification as part of the product.

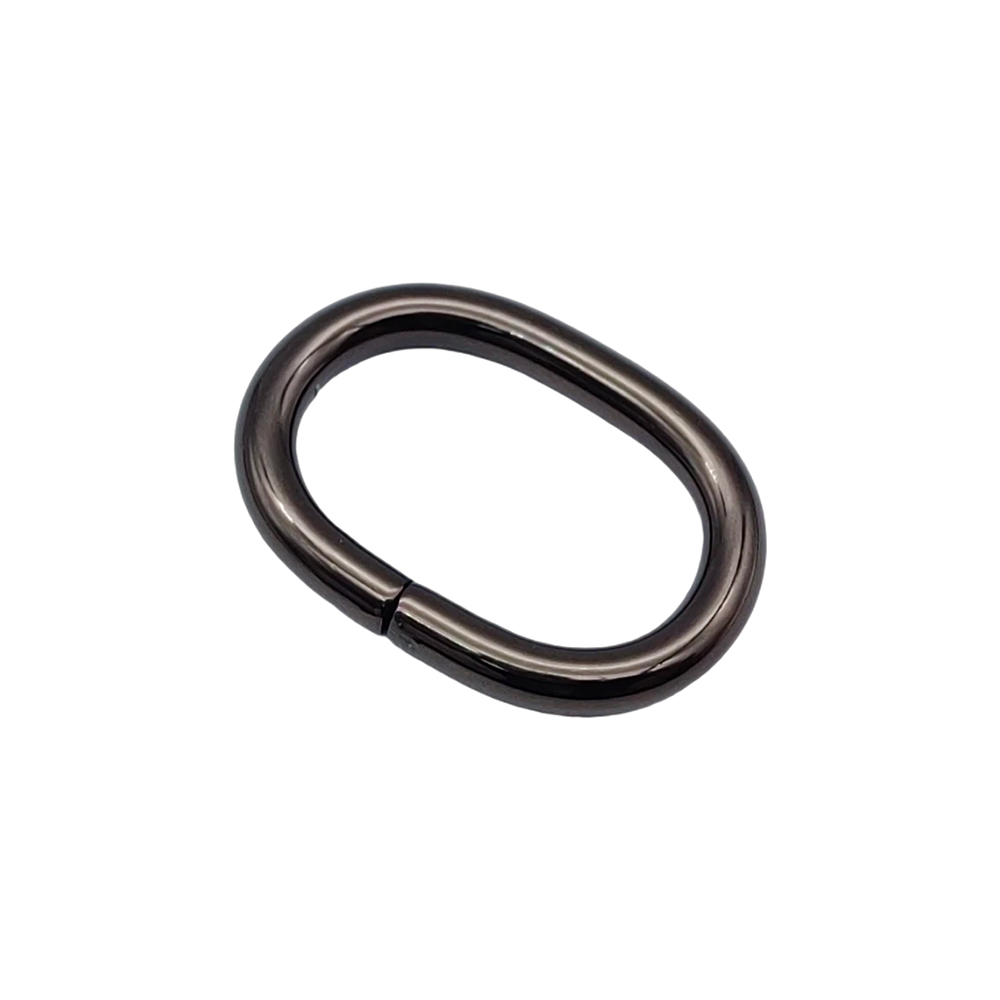

The weld seam is the one spot every buyer of metal rings for bags should inspect. A poorly ground seam leaves a ridge that can wear through leather or fray polyester webbing. Our workers grind the joint until it is level with the wire, then polish the whole ring before it goes to the plating line.

Welded Iron vs Cast Zinc Alloy vs Stainless Steel Rings

If your bags will see heavy sweat or coastal humidity, stainless steel is worth the extra cost. For most metal rings for purses sold through fashion channels, plated welded iron keeps the target price realistic.

Gunmetal Plating on Iron: Why Surface Prep Decides the Result

Instead of simply saying the finish is durable, it helps to explain what happens before color goes on, especially for metal o rings for purses and similar plated stock. The rings are tumbled and polished first so the wire surface is uniform. Any pit left behind shows as a dull patch after electroplating, and gunmetal is unforgiving because the dark tone exposes every scratch.

Plating batches are then checked with a salt spray test, a common corrosion exposure method described in the salt spray test overview. Gunmetal varies slightly between plating lots, so we recommend approving a swatch before bulk production.

Where Purse Rings Actually Go: Straps, Handle Tabs and Bag-Making Builds

The most common job is the strap connection. A snap hook clips into the ring, and the ring is held by a stitched webbing or leather loop. Typical strap jobs include purse strap rings on a clutch with a wrist strap and handbag strap rings on a crossbody where the strap detaches. The same ring also works as a purse ring for a charm.

Handle connections are the second use. For handbag handle rings and purse handle rings, the ring sits in a stitched tab at each end of the handle so it can swing freely. Some designers use a bag handle ring as the pivot for rolled handles, and metal rings for purse handles are common on bucket and hobo styles. Small studios buy these as o rings for bag making.

Here is a development scenario we see regularly. A brand developer sends a bag pattern with a 15 mm leather strap and asks for a gunmetal ring. During prototype development, the folded leather tab did not pass through the first ring freely. We kept the 25.5 mm length, checked the strap thickness, and confirmed the 16 mm width with a sample before production. The lesson: confirm folded thickness, not nominal width.

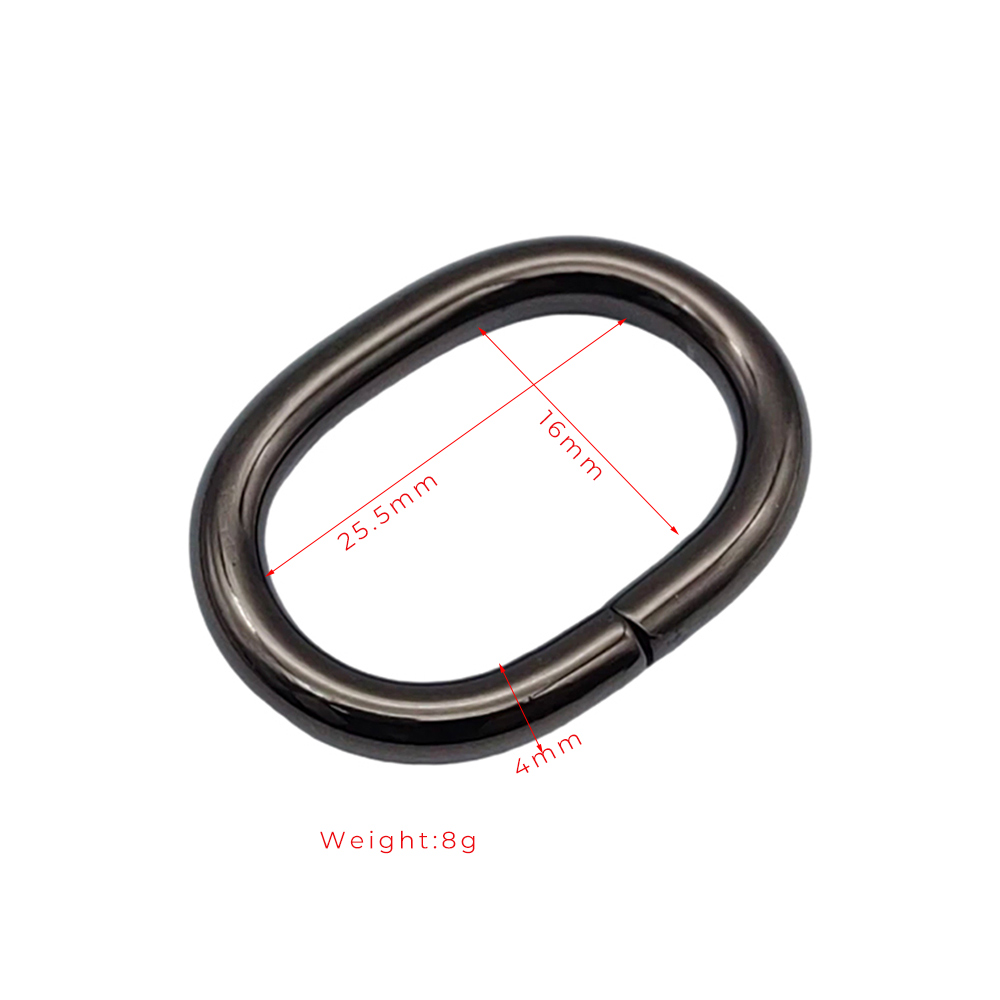

Technical Drawing Explanation: Six Measurements That Matter

• Inner length, 25.5 mm: sets the space for a snap hook or a second strap loop, and decides whether the hook can swing without jamming.
• Inner width, 16 mm: limits the strap width and thickness, which is why we ask for the folded strap thickness.
• Wire diameter, 4 mm: controls stiffness, pull strength and visual weight; thinner wire looks lighter but bends sooner under load.
• Outer size, about 33.5 mm x 24 mm: calculated from the inner size plus wire, it tells the pattern maker how much space the ring needs beside a seam.
• Weld seam position: the joint is the weakest point, so on a strap ring it should sit away from the main pull direction.
• Weight, 8 g: a quick check for incoming inspection; a large deviation can signal a different wire gauge or a heavier plating layer.

From Iron Wire to Packed Carton: A Walk Through Our Workshop

If you visited our workshop, you would first see iron wire coils cut to length. Cut length is controlled because a few tenths of a millimeter changes the final oval size. The wire is then bent, and the ends meet at the weld station.

After welding, the seam is ground and the ring is polished in several stages. We do this before plating because plating will not hide a rough joint; it only makes it more visible. Rings then go through electroplating on racks or in barrels, depending on size. Barrel plating keeps cost down for small rings, but we check for contact marks on every batch.

Next comes the salt spray test on sample pieces, followed by 100% visual inspection for seam gaps, scratches and out-of-round shapes. QC inspection also measures inner size on a sample from each carton. Last, rings are packed in OPP bags, placed in pearl foam where needed, and shipped in export cartons.

Factory Expert Tips

1. Choose size from the folded strap: measure the stitched tab, not the flat strap, then add clearance.
2. Match plating to the rest of the hardware: gunmetal from different suppliers can look very different, so send a physical swatch.
3. Keep the seam out of the pull line: ask your pattern maker to place the seam against the bag body side where possible.
4. Test the connection, not only the ring: pull-test the finished strap assembly, since stitching often fails before the ring does.
5. Separate samples by lot: label each lot so color differences can be traced and corrected early.

Common Buying Mistakes

• Choosing by outer size only and forgetting that the usable opening is smaller.
• Ignoring the weld seam and discovering ridges after strap stitching.
• Assuming iron and stainless steel resist sweat and humidity equally.
• Approving a photo color instead of a physical gunmetal swatch.
• Ordering a thin wire to save weight, then finding the ring bends under a heavy bag.

Buyer Decision Guide: Who Should Choose This Ring

This ring suits fashion brands, small studios and OEM factories building bags in volume, where cost control and a consistent finish matter more than a seamless cast look.

It is less suited to bags used in constant water contact, such as marine or pool products, where stainless steel is safer. It is also not the right pick if you need a gate or spring opening, since this ring is closed and fixed. Small MOQ brands can start with free stock samples and discuss quantity once the fit is confirmed.

OEM Customization for Bag Rings

For OEM bag hardware projects, we can adjust inner length, inner width and wire diameter to match your pattern, and the finish can be changed to nickel, gold, silver, black or a custom color.

Logos need a realistic conversation. With 4 mm wire, laser marking is possible but the mark must be tiny, so we advise putting the logo on the tag or the strap instead. Private label packaging, barcode stickers, hang tags and retail boxes are also supported, and we will review each request against the order quantity.

Care and Maintenance for Plated Iron Rings

Iron relies on its plating, so avoid long storage in humid rooms or sealed bags without a desiccant. Sweat and acidic hand lotions can dull gunmetal over time, so wipe the bag hardware with a dry soft cloth after heavy use.

Do not soak plated iron or use abrasive cleaners, since a scratch that reaches the base metal can start rust. In transport, keep rings in OPP bags to prevent rubbing.

Frequently Asked Questions

What is the MOQ for this welded oval ring?

The MOQ is 1000 pcs (negotiable based on order details). If you are testing a new bag design, tell us the planned quantity and color. Many customers begin with free stock samples, confirm the strap fit, then place a first order.

How long do production and delivery take?

Production time is 10–15 Days, and delivery time is 10–15 Days. Custom samples usually take 5–7 Days. Stock samples are typically shipped within 1–3 days. A new color that needs a plating trial can add time, so send a physical swatch with your first inquiry.

Are samples free?

Free stock samples are available. Custom samples require a sampling fee, and custom sample fees are fully deductible from bulk orders. Courier charges are borne by the customer. Request samples in your target finish and test them with your actual strap and snap hook.

Can you change the size or wire diameter?

Yes. Because this is a welded ring and not a cast part, we can change the inner length, inner width and wire diameter without a casting mold. Please send your strap width, folded thickness and the hook you plan to use. With that information, our engineers can propose a size and confirm the result with a sample before bulk production starts.

Do you provide certification documents?

We maintain quality certification documentation and are happy to provide the current valid certificates upon request during your sourcing evaluation. If your market has specific restricted substance requirements for plated hardware, tell us at the inquiry stage so we can choose the right plating route and prepare the documents your buying team needs.

Will the gunmetal plating rust?

The base metal is iron, so the plating layer is what protects it. We control polishing and electroplating, and we run salt spray tests on sampled batches. Rust usually starts where plating is scratched, so careful packing and dry storage matter. For bags used in wet or coastal conditions, we can discuss a stainless steel version instead.

Can you add a logo or custom packaging?

A logo can be laser marked on the ring, but the 4 mm wire leaves very little space, so many brands place the logo on the strap or tag instead. Standard packing is Pearl Foam + OPP Bag + Export Carton. Customized Packaging Available, including private label bags, barcodes, hang tags and retail boxes, based on your order details.

Why Buyers Work With DG Buddy

DG Buddy has nearly 20 years of manufacturing experience in bag hardware. In practice, that means our engineers can read a pattern, suggest a ring size, and explain the trade-off between iron and stainless steel before you place an order. Samples move quickly, QC inspection is built into each batch, and one contact person follows your project from first inquiry to shipment.

Many buyers source rings, snap hooks and chains from us so colors match across a collection. You can browse related handbag ring hardware, bag strap hardware, swivel snap hooks and bag chains, read our bag hardware sourcing guide, or download the catalog.

Send Us Your Strap Details

If you already have a pattern or a technical drawing, send the strap width, folded thickness and your target finish, and we will check whether 25.5 mm x 16 mm fits. If you are still comparing suppliers, request free stock samples and test them on your own bags. We are happy to review your drawing, suggest a plating route and quote OEM quantities.
