Precision zinc-alloy metal strap adjuster with 26 mm channel and light-gold finish. Smooth slide action for handbags and backpacks. Nearly 20 years of manufacturing experience, free stock samples available, OEM customization supported.
A metal strap adjuster is a dual-channel rectangular hardware component used to lengthen or shorten bag and backpack straps while keeping the webbing securely locked under tension. This zinc-alloy metal strap adjuster features a 26 mm inner channel that functions as a true 1 inch slide buckle, a smooth center bar, light-gold electroplated finish, and distinctive curved ends with a height profile that lowers from the middle toward both sides.
The contoured shape reduces bulk against the body and improves the visual line on handbags and backpacks. Buyers searching for a reliable bag strap adjuster, slide buckle, or 1 inch strap adjuster find this design balances strength, smooth operation, and clean aesthetics. Free stock samples are available and custom sample fees are fully deductible from bulk orders.

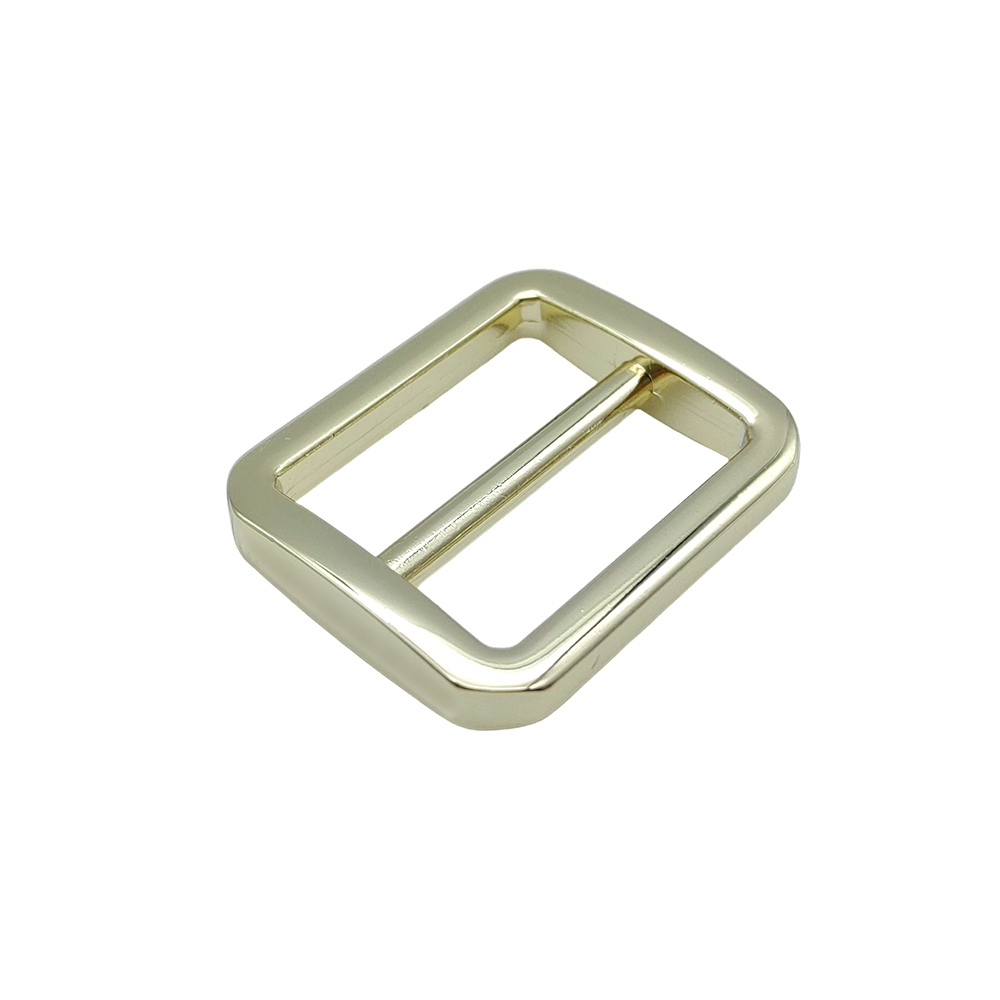

One detail many buyers overlook when selecting a metal strap adjuster is the outer contour. On this model the two short ends are radiused rather than sharp-cornered, and the overall height is highest at the center then gently lowers toward both sides. The result is a lower-profile feel against the shoulder or body and a cleaner silhouette on the finished bag. In factory trials we have seen this geometry reduce the chance of the hardware catching on clothing or lining fabric compared with square-edged frames of the same outer dimensions.
The curved ends also help the light-gold plating maintain better edge coverage because there are fewer sharp corners where plating thickness can thin out. This makes the part especially suitable as a 1 inch strap adjuster on soft leather or fabric shoulder straps.
The heart of any effective slide buckle or strap adjuster slider is the center bar. Here the bar measures 3 mm in thickness and sits inside a dual-channel rectangular frame. Webbing threads under one side, over the bar, and under the opposite side. When tension is applied the friction lock holds; when the strap is relaxed the bar allows smooth sliding for length adjustment. Because the bar is die-cast as part of the zinc-alloy body rather than a separate insert, there is no risk of the bar rotating or loosening over time.
This construction is preferred by buyers who need a metal slide buckle that will survive repeated daily adjustment on backpack straps or purse straps. The 26 mm channel is sized and tested as a reliable 1 inch slide buckle for common webbing widths.
A classic tri-glide uses three parallel bars that create two narrow slots. The dual-channel rectangular design used on this metal strap adjuster employs a single center bar inside a closed frame. Both achieve length adjustment, yet the rectangular frame with curved ends offers a different aesthetic and slightly different webbing path that many handbag designers prefer for visible hardware.
A 26 mm inner channel is sized for standard 1 inch webbing and is commonly specified as a 1 inch strap adjuster. If the channel is even 1 mm too narrow the webbing binds; if it is too wide the lock becomes less secure under load. Dimensional control during die casting and subsequent trimming is therefore critical for a reliable 1 inch slide buckle.
By lowering the height from the middle toward both sides, the hardware presents less bulk against the body. This is especially noticeable on crossbody bags and backpack shoulder straps where the adjuster sits close to the torso.
| Attribute | Zinc Alloy Metal Strap Adjuster | Typical Plastic Strap Adjuster |
|---|---|---|
| Weight consistency | 13.8 g controlled | Variable, often lighter |
| Load capacity | Higher, suitable for daily bag use | Lower, better for light webbing |
| Surface options | Light gold electroplating and multiple finishes | Molded-in color only |
| Edge durability | Polished then plated | Prone to abrasion whitening |
| OEM logo capability | Yes – laser, emboss, deboss | Limited |
| Temperature stability | Stable across normal climates | Can soften or become brittle |
| Perceived quality on luxury bags | High | Functional but lower |
| Recyclability | Metal scrap recoverable | Depends on resin type |
When buyers compare a metal strap adjuster buckle against plastic alternatives, the zinc-alloy version wins on durability, finish range, and the ability to match other metal hardware on the same bag. The light-gold electroplated surface on this model is chosen specifically because it pairs well with both warm-tone and mixed-metal hardware sets. Many brands specifically request a gold slide buckle in the 1 inch strap adjuster size to keep visual consistency across the collection.

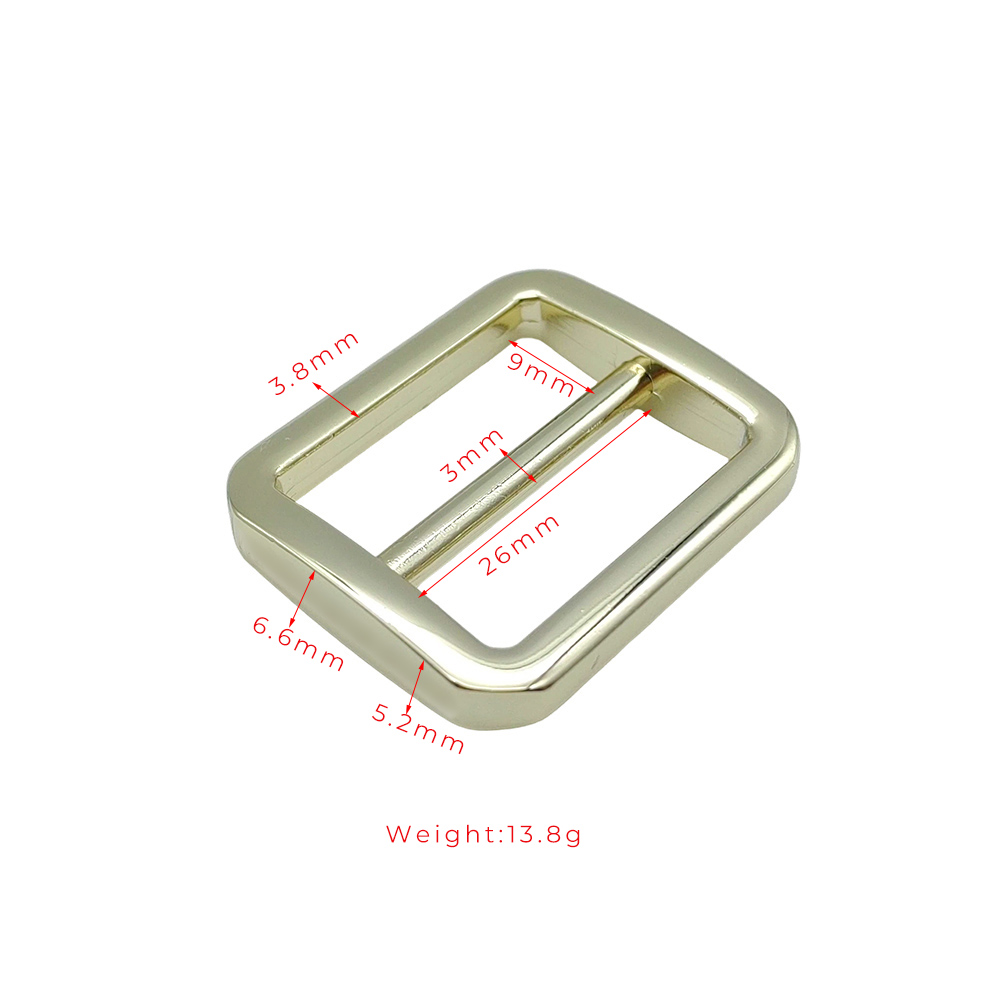

Understanding the numbers on the drawing helps buyers confirm fit before ordering. The 26 mm dimension is the critical inner channel width that accepts 1 inch webbing and is therefore marketed and used as a 1 inch slide buckle. The 3 mm center bar provides the friction surface. Side-wall thickness of 3.8 mm and the height zones of 5.2 mm to 6.6 mm, together with the 9 mm clearance area, determine both strength and how the hardware sits against the strap.
The curved ends and the progressive height reduction from center to sides are not always shown on basic drawings, yet they are intentional design features that improve both comfort and appearance. Weight is held at 13.8 g so that pairs of adjusters do not create imbalance on a backpack or shoulder bag.
In our factory the process begins with selected zinc-alloy ingots that meet the required purity for die casting. Molten metal is injected into the precision mold that forms the rectangular frame, center bar, curved ends, and the tapered height profile in one shot. After casting, each piece is trimmed to remove flash, then moves through staged grinding and multi-step polishing.
The polishing sequence is critical: it removes tool marks from the curved surfaces and prepares the metal so that the subsequent light-gold electroplating bonds evenly, including into the radiused ends and along the center bar. After plating, parts undergo salt-spray evaluation and 100 % visual and functional inspection before packing in pearl foam, OPP bags, and export cartons. This sequence is why the finished metal slide buckle maintains consistent color and smooth slide action across production lots, whether ordered as a standard 1 inch strap adjuster or with minor custom modifications.
This metal strap adjuster suits luxury and mid-to-high fashion brands that need a clean gold slide buckle with contoured ends. It is also appropriate for backpack and outdoor brands that want a durable metal alternative to plastic tri-glide style parts. Brands running small MOQ test orders can still work with us because sample fees are fully deductible and production MOQ remains negotiable.
Designers who already have matching light-gold hardware elsewhere on the bag will find the finish consistent. Brands that require only the lowest possible cost and have no metal hardware elsewhere may still prefer plastic, but they will sacrifice both durability and aesthetic cohesion. For any project that specifies a 1 inch strap adjuster or 1 inch slide buckle, the 26 mm channel on this model provides a direct, proven match.
We support full OEM and ODM development for this strap adjuster slider. Custom mold work can alter the outer contour, channel width, or center-bar thickness. Laser logo, emboss logo, or deboss logo can be added on the frame or bar. Oil-filling, alternative electroplating colors, and private-label packaging (including barcode, hang tag, and retail box) are routine. Because the base geometry is already proven as a 1 inch slide buckle, lead time for most finish and logo changes stays inside the standard 10–15 day production window after sample approval.
A European handbag brand needed a bag strap adjuster that would sit flat against a soft leather shoulder strap without creating a hard ridge. The curved ends and tapered height profile solved the comfort complaint they had experienced with square-edged metal parts. Another backpack line replaced plastic adjusters with this metal slide buckle after field returns showed plastic whitening and breakage at the bar. In both cases the light-gold finish matched existing hardware, and the 26 mm channel accepted their existing 1 inch webbing without modification, functioning exactly as a 1 inch strap adjuster. These are typical outcomes when the engineering details – not just the catalog photo – are reviewed together.
Zinc-alloy hardware with electroplated light-gold finish should be kept dry when possible. Prolonged contact with sweat, salt air, or acidic cleaners can eventually affect the plating. Wipe with a soft dry cloth after use. Avoid ultrasonic cleaners or abrasive polishes. During storage and ocean freight the parts remain protected inside pearl foam and OPP bags; once installed on the bag, normal consumer care is sufficient.
What is the MOQ for this metal strap adjuster?
1000 pcs, negotiable based on order details and finish requirements.
Are free stock samples available?
Yes. Free stock samples are available; custom sample fees are fully deductible from bulk orders. Courier charges are borne by the customer.
What is the sample and production lead time?
Sample time is 5–7 days. Production and delivery are each 10–15 days under normal conditions.
Can the light-gold finish be changed?
Yes. Multiple electroplating colors and other surface treatments are available under OEM programs.
Is the center bar strong enough for daily backpack use?
The 3 mm integral zinc-alloy bar is designed for repeated adjustment under normal bag loads. We recommend confirming with your specific webbing and expected load.
Do you provide quality documentation?
We maintain quality certification documentation and are happy to provide the current valid certificates upon request during your sourcing evaluation.
Can you match an existing strap adjuster from another supplier?
In most cases yes. Send the sample or detailed drawings and we will evaluate tooling and plating match.
Is the 26 mm channel the same as a standard 1 inch slide buckle?
Yes. 26 mm is the practical industry equivalent of a 1 inch strap adjuster / 1 inch slide buckle for common webbing widths.
Nearly 20 years of continuous hardware manufacturing means we have already solved the common problems of channel accuracy, plating adhesion on curved surfaces, and consistent slide feel. Engineering support is available from the first drawing review through mass production. Communication is direct – you speak with people who understand both the factory floor and the buyer’s checklist. The combination of free stock samples, deductible custom sample fees, and flexible MOQ terms lowers the risk of trying a new metal strap adjuster supplier.
Handbag Strap Hardware
Handbag Buckle Hardware
Screw In D Ring – Removable Screw Pin D-Ring for Handbags
S Hook Carabiner Clip – Double Gate Aluminum Bag Hardware
If you already have technical drawings or a physical sample of the strap system this metal strap adjuster will join, send them over and we will confirm channel fit, finish match, and tooling needs. If you are still comparing suppliers for a 1 inch strap adjuster or gold slide buckle, we are happy to prepare a side-by-side evaluation of plating options and dimensional tolerances. Either way, the next step is a short conversation about your webbing width, target finish, and volume timeline.
| Field | Specification |
|---|---|
| Brand | DG Buddy |
| Product Name | Metal Strap Adjuster / Rectangular Slide Buckle |
| Model | DG-BK26 |
| Material | Zinc Alloy |
| Weight | 13.8 g |
| Structure | Rectangular frame with center crossbar (dual channel) |
| Finish Options | Light Gold (electroplated); other finishes available on request |
| Size / Dimensions | Inner channel ≈26 mm (1″); center bar 3 mm; side wall 3.8 mm; height zones 5.2–6.6 mm / 9 mm clearance |
| Application | Handbags, backpacks, shoulder bags, webbing straps |
| Installation Method | Thread webbing through dual channels around center bar |
| Manufacturing Process | Die Casting |
| Surface Treatment | Electroplating |
| Customization | OEM / ODM / logo / color / material / size |
| Packaging | Pearl Foam + OPP Bag + Export Carton or Customized Packaging |
| MOQ | 1000 pcs (negotiable based on order details) |
| Sample Time | 5–7 Days |
| Production Time | 10–15 Days |
| Delivery Time | 10–15 Days |
