Screw In D Ring – Removable Screw Pin D-Ring for Handbags | DG-RG029

Quick Answer

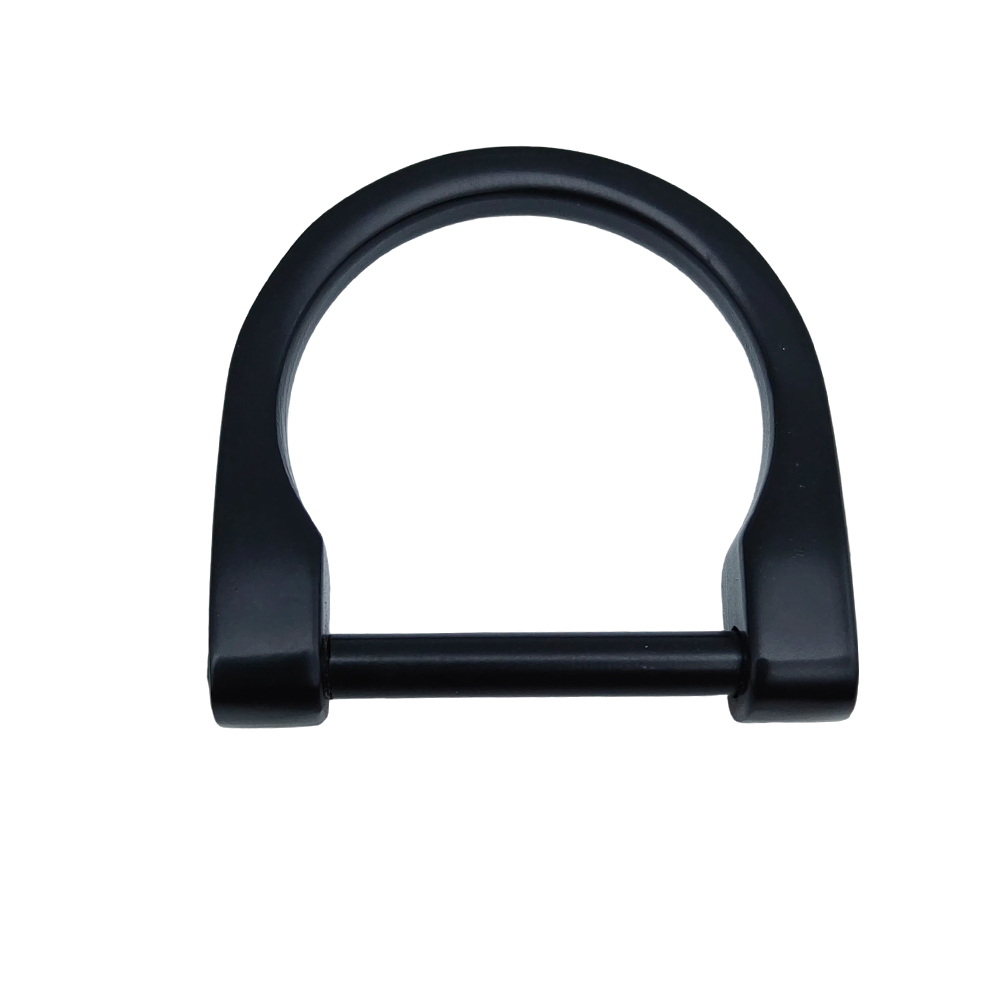

A screw in d ring is a closed D-shaped metal ring fitted with a removable crossbar that threads or screws into place, allowing straps or loops to be attached or detached without permanent riveting. This particular model is a zinc-alloy screw pin d ring designed for handbags, modular strap systems and selected camera applications.

The ring body measures 29 mm on the inner opening, uses a 3.8 mm diameter locking pin that spans 24 mm, and weighs only 16.4 g. Because the pin can be removed with a simple screwdriver, the component functions as both a structural connector and a serviceable part—exactly what many European and North-American bag brands look for when they specify a removable d ring or detachable d ring on production lines.

Key Takeaways

• Screw-pin design lets straps be installed or replaced in minutes without cutting or riveting.
• 29 mm inner opening and 3.8 mm wire diameter suit medium-width leather and webbing straps.
• Zinc-alloy die casting delivers consistent geometry at a lower weight than solid brass.
• Slotted pin head provides positive locking while remaining field-serviceable.
• Multiple surface finishes available for both luxury and commercial bag lines.
• MOQ starts at 1 000 pcs with free stock samples and fully deductible custom-sample fees.
• Nearly 20 years of hardware manufacturing experience supports full OEM development.

Why Buyers Specify a Screw Pin Instead of a Fixed D-Ring

Fixed D-rings are permanently closed. Once the strap is looped and the ends are stitched or riveted, the only way to change the strap is to destroy the work. A screw in d ring solves that problem. The crossbar—often called a screw pin or locking pin—can be withdrawn, the strap inserted, and the pin re-installed. In our factory we see this requirement most often on convertible bags, camera-strap hybrids and limited-edition leather goods where the brand wants the option to swap straps seasonally without returning the bag to the workshop.

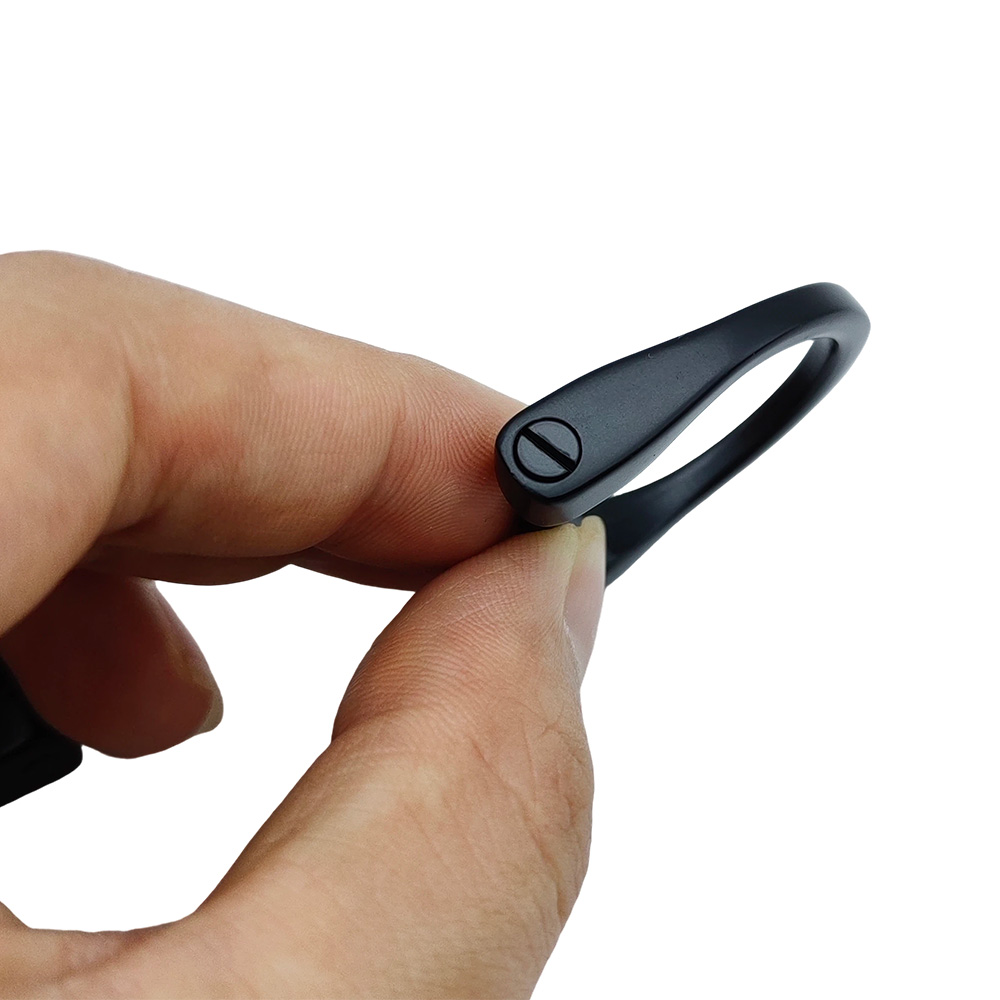

One practical detail buyers notice quickly is the head style. Our version uses a slotted head so a flat screwdriver can apply controlled torque. This is the feature that turns a simple ring into a true screw back d ring or Screw Crossbar D Ring. The same geometry also appears under the name Screw In Dee Ring in some North-American catalogs, so search traffic for both spellings is relevant.

Quick Knowledge

What determines pin retention force?

Retention is governed by thread engagement length, pin diameter tolerance and the hardness of the zinc-alloy body. On this model the 3.8 mm pin engages approximately 4–5 mm of material on each end. Too loose and the pin vibrates out; too tight and assembly becomes slow on the production line. We machine the pilot holes after die casting so the fit stays within ±0.05 mm.

Why zinc alloy rather than brass for a removable d ring?

Brass offers excellent corrosion resistance but adds weight and cost. Zinc alloy, when properly plated, provides more than adequate strength for handbag loads while keeping the finished part at 16.4 g. For most fashion and mid-tier leather goods the weight saving is preferred. Pure brass versions remain available for customers who specifically request them.

Screw pin d ring vs fixed D-ring – practical differences

Reading the Technical Drawing – What Each Dimension Means to a Buyer

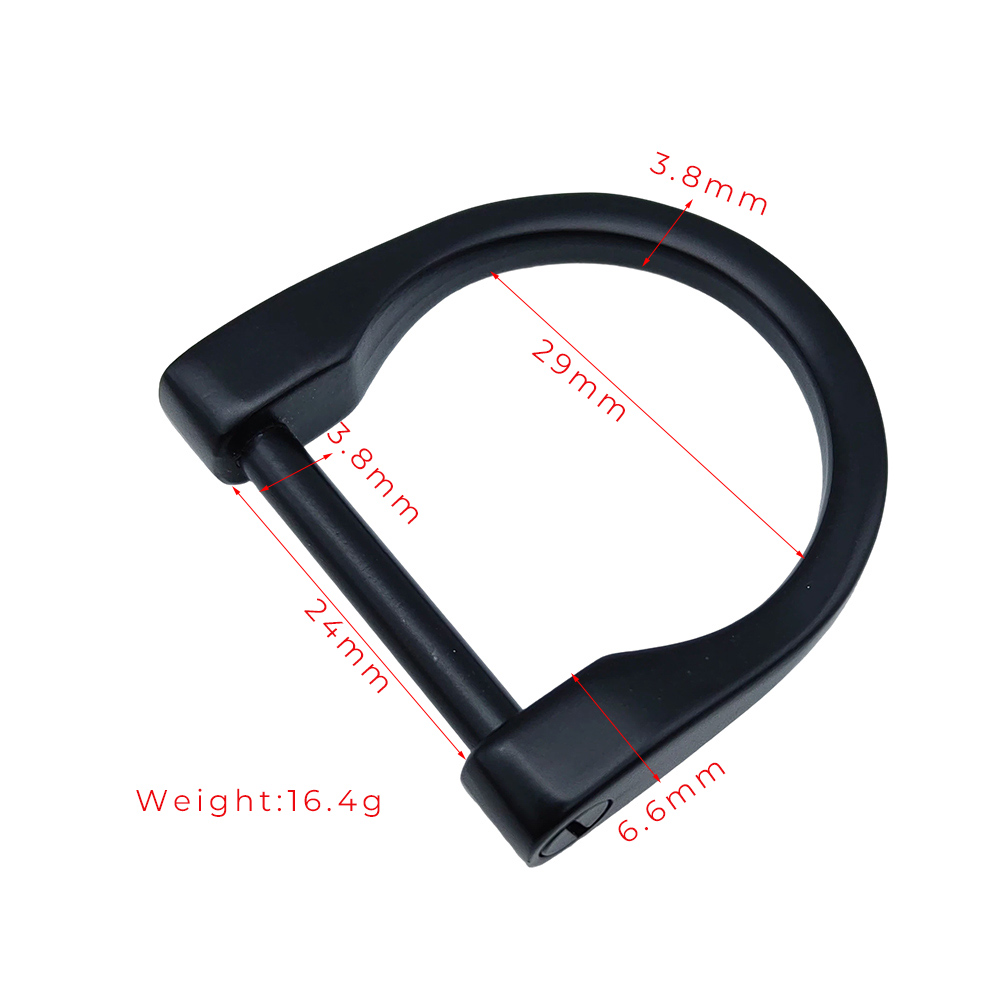

The dimensioned image supplied with this part shows six critical measurements. Understanding them prevents the most common sampling rejections we see.

• 29 mm inner opening – This is the clear space the strap must pass through. For 25 mm webbing or leather the fit is comfortable; for 30 mm material the strap will sit tight and may show distortion.
• 3.8 mm wire diameter – Controls both strength and the visual “heft” of the ring. Thinner wire looks delicate but reduces load capacity; thicker wire adds weight and can look bulky on slim bags.
• 24 mm pin length – Must span the full width of the two end bosses plus a small safety margin. Short pins fail to engage both sides fully.
• 3.8 mm pin diameter – Matches the drilled holes. Any mismatch creates either play or binding.
• 6.6 mm end width – The flat landing area that contacts the strap edge. Too narrow and the strap can cut; too wide and the overall length grows unnecessarily.
• 16.4 g weight – Useful for shipping-cost calculations and for brands that publish total bag weight.

When customers send us a drawing for a custom screw in d ring handbag project, these six numbers are the first things we check against the intended strap and leather thickness.

Material, Surface and Manufacturing Reality

Every batch starts with zinc-alloy ingots melted and injected into a multi-cavity die. After ejection the parts are trimmed, ground to remove the parting line, and then polished in stages. The polishing sequence is especially important on a D-shaped body because the inner curve and the outer radius must receive the same surface energy before plating; otherwise the finish will look uneven under shop lights.

Electroplating or PVD follows. Matte black is currently the most requested finish for this model, but gunmetal, antique brass, bright nickel and custom PVD colors are routine. We run salt-spray verification on every new finish combination so that the plating thickness and adhesion meet the customer’s internal standard—usually 24 h or 48 h neutral salt spray for fashion hardware.

Final assembly inserts the screw pin. Because the pin is a separate component, we can offer different head styles or even stainless-steel pins for customers who need higher corrosion performance on the locking element itself.

Factory Expert Tips for Specifying This Hardware

• Always confirm the actual strap thickness and eyelet diameter before locking the pin diameter. A 3.8 mm pin is ideal for many leather loops but can be oversized for thin webbing.
• Request a plated sample on the exact leather color you will use. Matte black can look different against cognac versus black calf.
• If the bag will be sold in humid climates, ask for the salt-spray report of the chosen finish rather than relying on generic claims.
• For high-volume programs, consider ordering the pins as a separate SKU so that field service or after-sales strap kits can be supplied without shipping complete rings.

Common Buying Mistakes We Still See

• Choosing a fixed D-ring when the design brief later requires strap interchangeability.
• Ignoring the inner-opening measurement and discovering the chosen strap will not pass through.
• Specifying “brass” purely for perceived quality when zinc alloy with proper plating already meets the mechanical and aesthetic requirements at lower weight.
• Ordering the smallest possible MOQ without checking whether the plating rack density will produce consistent color on a complex D shape.
• Forgetting to specify the screwdriver slot orientation relative to the bag’s exterior, which can affect final appearance when the pin is installed.

Who Should (and Should Not) Use This Screw Pin D-Ring

Suitable for

• Luxury and contemporary handbag brands that offer convertible or modular straps.
• Camera-bag or hybrid camera-strap projects that need a secure yet removable connection.
• OEM factories producing private-label lines where after-sales strap replacement is part of the service offer.
• Designers who prototype frequently and want hardware that can be reused across samples.

Less suitable for

• Ultra-lightweight nylon packs where every gram counts and a fixed stamped ring is adequate.
• High-security or anti-theft applications that require non-removable hardware.
• Extremely high-volume fast-fashion programs that prioritize the absolute lowest piece price over serviceability.

OEM Customization Path

Most projects begin with our stock DG-RG029 geometry. From there the usual customization steps are:

• Adjustment of inner opening or wire diameter (new cavity or insert tooling).
• Change of pin length or head style.
• Private-label laser marking or embossed logo on the flat end boss.
• Custom PVD or electroplated finish matched to a Pantone or physical master.
• Retail packaging, barcode, or hang-tag integration.

Tooling lead time for a modified cavity is typically 12–18 days; sampling of the new version follows the standard 5–7 day window once the mold is ready. Custom sample fees are fully deductible from the subsequent bulk order.

Real Application Notes from Recent Projects

A Scandinavian leather-goods brand needed a removable connection for a camera-strap attachment that could also accept a standard shoulder strap. They initially sampled a fixed D-ring and discovered that changing the strap required cutting stitches. Switching to a screw in d ring with the 29 mm opening solved the issue. The same component later appeared on a limited capsule where customers could order additional colored straps as accessories. Because the pin is a d ring locking pin, the brand could supply spare pins in the after-sales kit without shipping complete rings.

Another project for a U.S. designer label used the identical geometry but requested a soft-touch matte black PVD. The visual result was close enough to their existing gun-metal hardware that the two finishes could be mixed on the same bag without color clash.

Care and Maintenance

Zinc-alloy hardware with quality plating tolerates normal handbag use well. Avoid prolonged contact with wet leather that has been treated with acidic cleaners; wipe the metal dry if the bag becomes soaked. Store the bag so that the D-ring is not pressed against abrasive surfaces for long periods. If the pin must be removed repeatedly, a tiny drop of light machine oil on the threads once a year keeps the action smooth. Do not use harsh solvent-based cleaners on matte finishes—they can alter the surface texture.

FAQ

What is the MOQ for this screw pin d ring?
1 000 pieces, negotiable according to total order value and finish complexity.

Can I receive free samples?
Stock samples in standard finishes are free. Custom finishes or modified dimensions require a sampling fee that is fully deductible from the bulk order. Courier charges are paid by the customer.

How long does sampling take?
Stock samples ship in 1–3 days. Custom samples that need new plating or minor tooling changes take 5–7 days after confirmation.

Is the pin a standard 1/4-20 thread?
The current production pin uses a proprietary screw profile optimized for zinc-alloy engagement. If a true 1/4-20 UNC thread is required for camera-tripod compatibility, please confirm so we can evaluate a modified pin.

What packaging is used?
Pearl foam + OPP bag + export carton. Custom retail packaging is available on request.

Can you laser-logo the ring?
Yes. The flat end bosses provide a suitable surface for laser marking or light embossing.

Do you supply the matching screwdriver or spare pins?
Spare pins can be ordered as a separate item. We do not normally include screwdrivers, but can source them if needed for a complete after-sales kit.

What certifications can you provide?
We maintain quality documentation and are happy to supply the current valid certificates upon request during your sourcing evaluation.

Why Teams Continue to Work with DG Buddy

Nearly 20 years of daily hardware production means we have already solved most of the tolerance, plating and assembly questions that appear on new projects. Communication stays with the same engineering contact from first drawing to mass-production approval. When a finish needs adjustment or a pin fit must be tightened by 0.03 mm, the change is measured, documented and implemented without restarting the entire conversation. That continuity is what turns a simple component into a reliable part of a brand’s supply chain.

Related Categories

• Handbag D-Ring & O-Ring Hardware
• Bag Strap Connectors

Related Products

• Zinc-Alloy Swivel Snap Hook with Center Eye
• 25mm Ladder Lock Buckle

Next Step

If you already have strap drawings or a target finish master, send them over and we will check compatibility against the current DG-RG029 geometry. If you are still comparing removable versus fixed solutions, we can prepare a small side-by-side sample set so your team can evaluate installation time and final appearance on the actual leather. Either way, the conversation starts with real measurements rather than generic claims.
