Square Ring Bag Hardware 26.3mm Iron | DG-SR26

Quick Answer

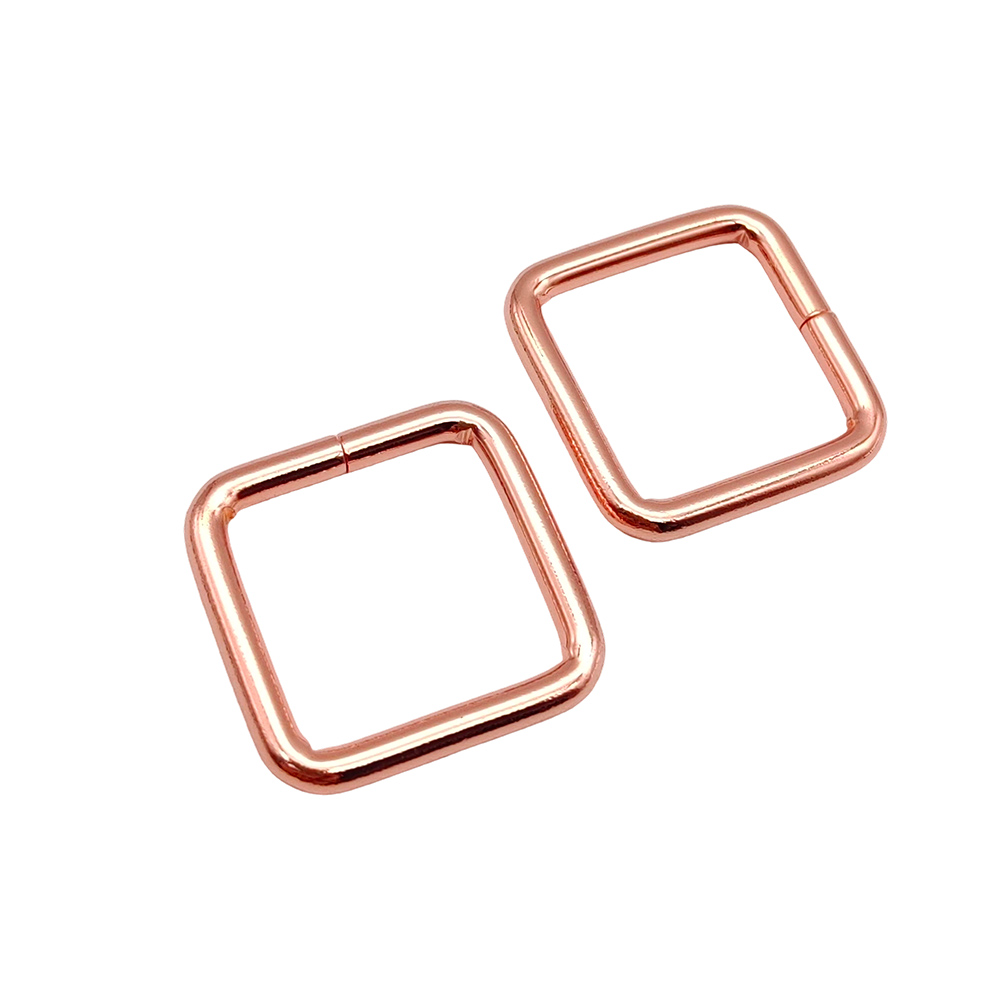

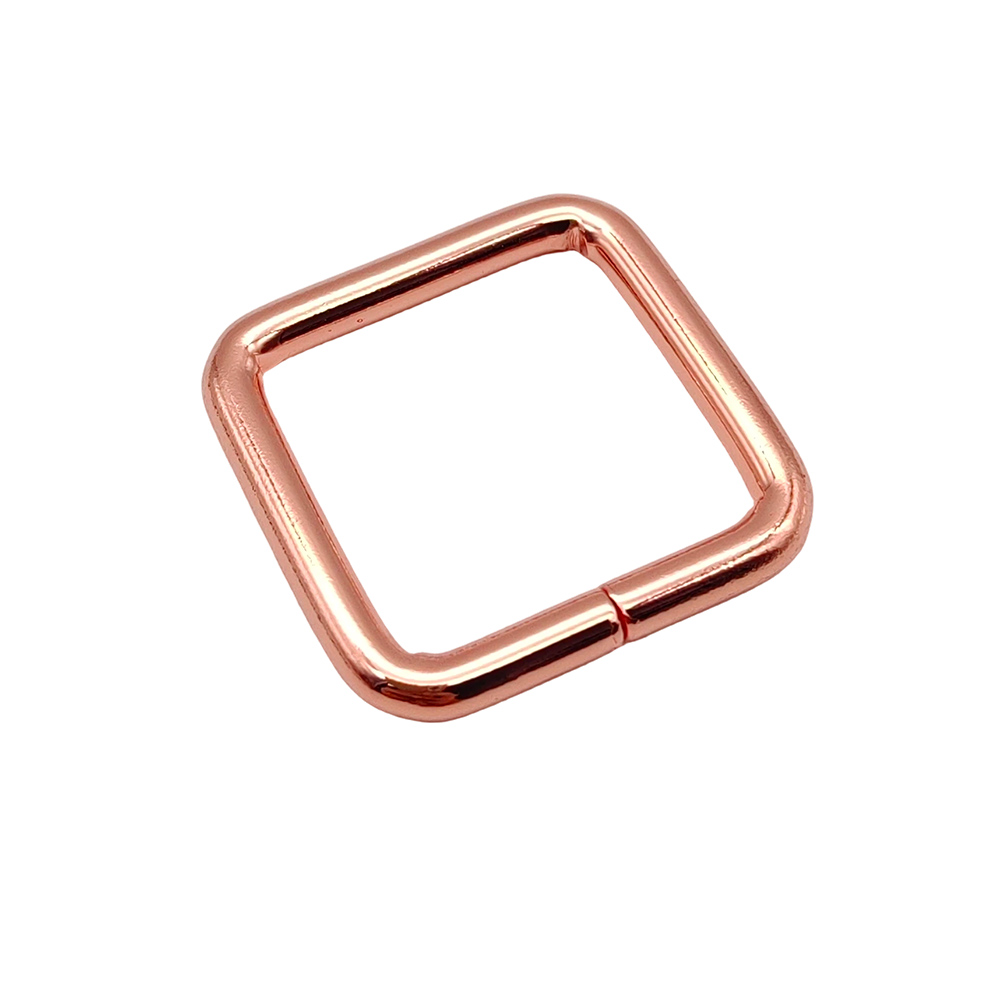

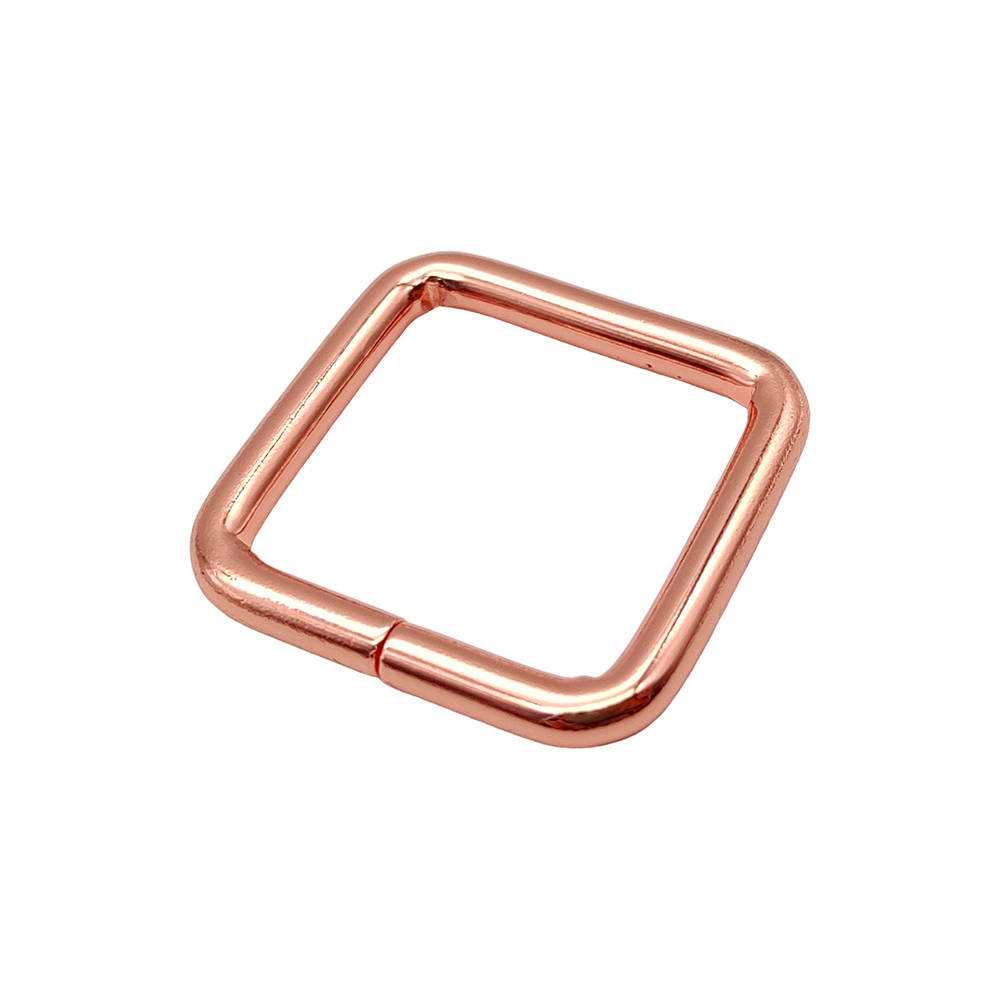

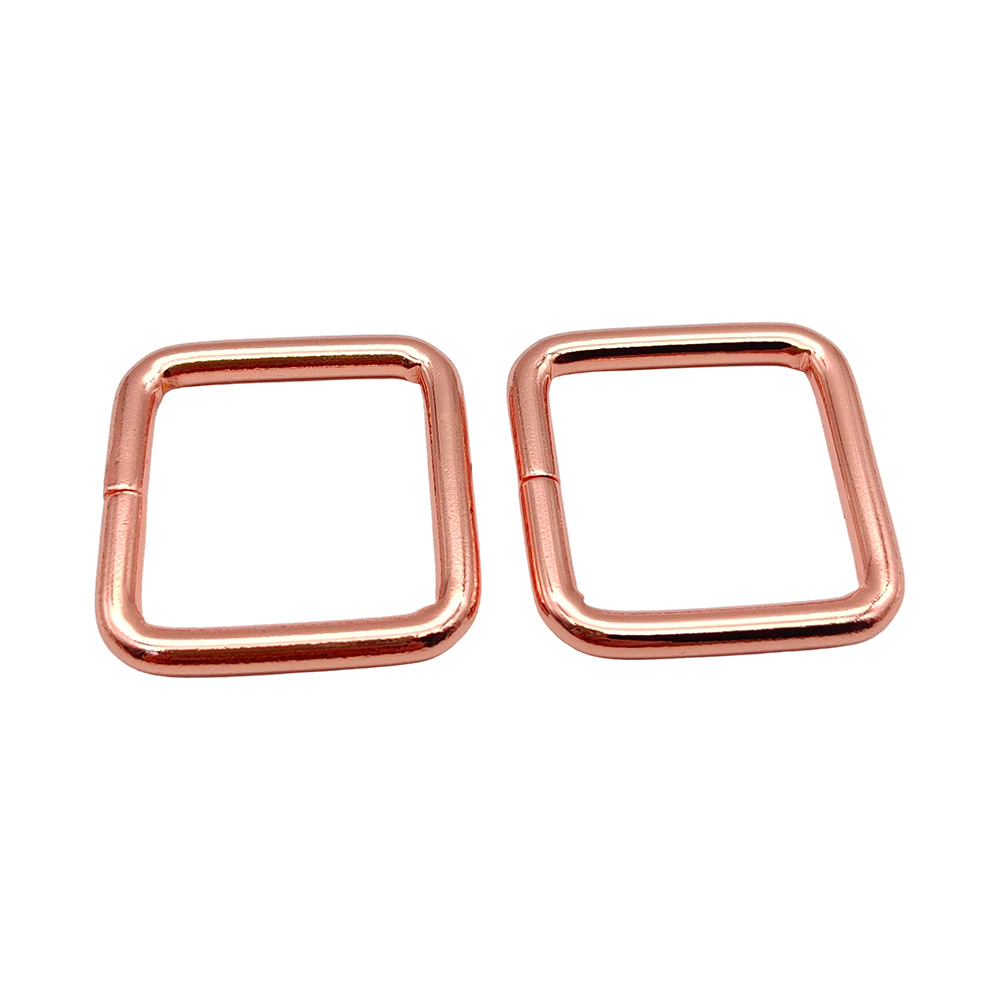

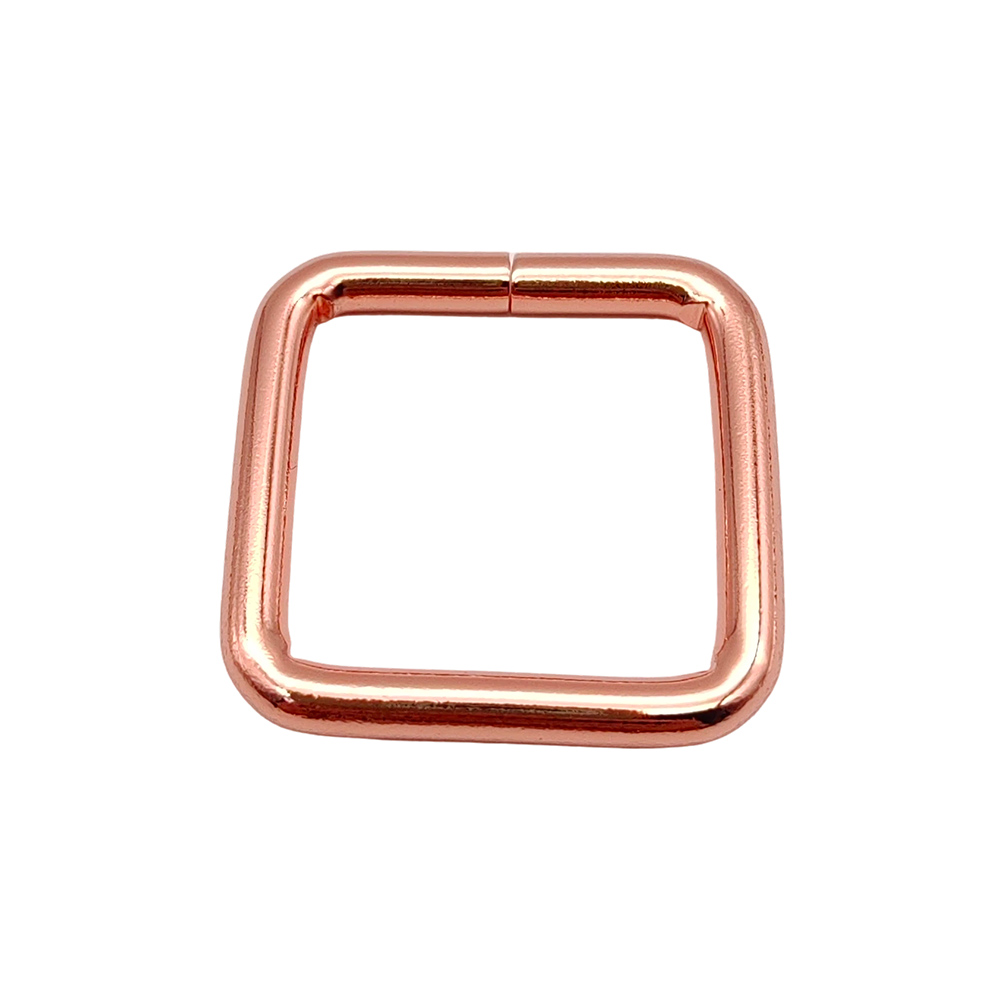

A square ring bag hardware is a closed metal loop used as a strap connector, handle attachment point, or webbing junction on handbags, purses, and leather goods. This DG-RG026 model is manufactured from iron through wire bending and welding, delivering a cost-effective solution with a 26.3 mm opening, 4 mm wire diameter, and 11.6 g weight. The rose-gold electroplated finish provides a clean appearance while the welded joint ensures a fully closed loop. Buyers choose this style when they need reliable strap mobility at a competitive price point, especially for mid-volume fashion and commercial bag production.

Key Takeaways

• Iron square ring bag hardware is formed by bending and welding, making it more affordable than die-cast zinc alloy versions.
• The 4 mm wire diameter and 26.3 mm opening suit common mid-width straps on handbags and crossbody bags.
• A visible weld seam is normal for bent iron rings and does not indicate a defect when properly finished.
• Zinc alloy alternatives offer seamless construction and higher perceived quality at a higher unit cost.
• Electroplating quality and weld integrity determine long-term durability more than the base metal alone.
• OEM customization covers finish, size, and packaging with free stock samples available.
• Nearly 20 years of manufacturing experience supports consistent plating and inspection standards.

Understanding Square Ring Bag Hardware in Handbag Design

One thing buyers often ask is why a simple square ring remains one of the most frequently specified components in handbag construction. The answer lies in its dual role: it creates a clean attachment point for straps while allowing controlled movement. Unlike a D-ring that encourages rotation, the square profile keeps the strap flatter and more aligned with the bag body. This geometry reduces twisting on shoulder bags and crossbody styles, which is why designers repeatedly return to square ring bag hardware for both functional and aesthetic reasons.

In our factory we see the same component used across luxury fashion lines and commercial OEM programs. The difference is rarely the basic shape; it is the material choice, forming method, and surface treatment that separate a reliable piece from one that fails after a few months of daily use.

Iron vs Zinc Alloy: Material and Process Differences

When customers compare suppliers, the first technical question is almost always about base material. This particular square ring is made from iron. Iron is formed by cutting wire to length, bending it into a square profile on a forming machine, and then welding the joint closed. The result is a functional closed loop at a lower material and processing cost. Because the ring is bent rather than cast, a weld seam is always present. After welding, the joint is ground and polished so the seam becomes less noticeable under plating, yet it remains a structural feature of the part.

Zinc alloy square rings follow a completely different route. Zinc alloy is die-cast or precision stamped into a seamless solid form. There is no weld. The metal flows into the mold under pressure, producing a denser, more uniform structure with sharper edges and higher dimensional consistency. Zinc alloy also accepts plating more evenly because the surface is free of weld discontinuities. The trade-off is higher material cost and higher tooling investment for custom sizes.

From a buyer’s perspective the choice is straightforward. Iron delivers acceptable strength and appearance at a lower price, making it suitable for fashion brands and volume programs where cost control is critical. Zinc alloy is preferred when the brief calls for a seamless look, tighter tolerances, or higher perceived quality. Neither material is inherently “bad”; each matches a different commercial requirement.

Quick Knowledge

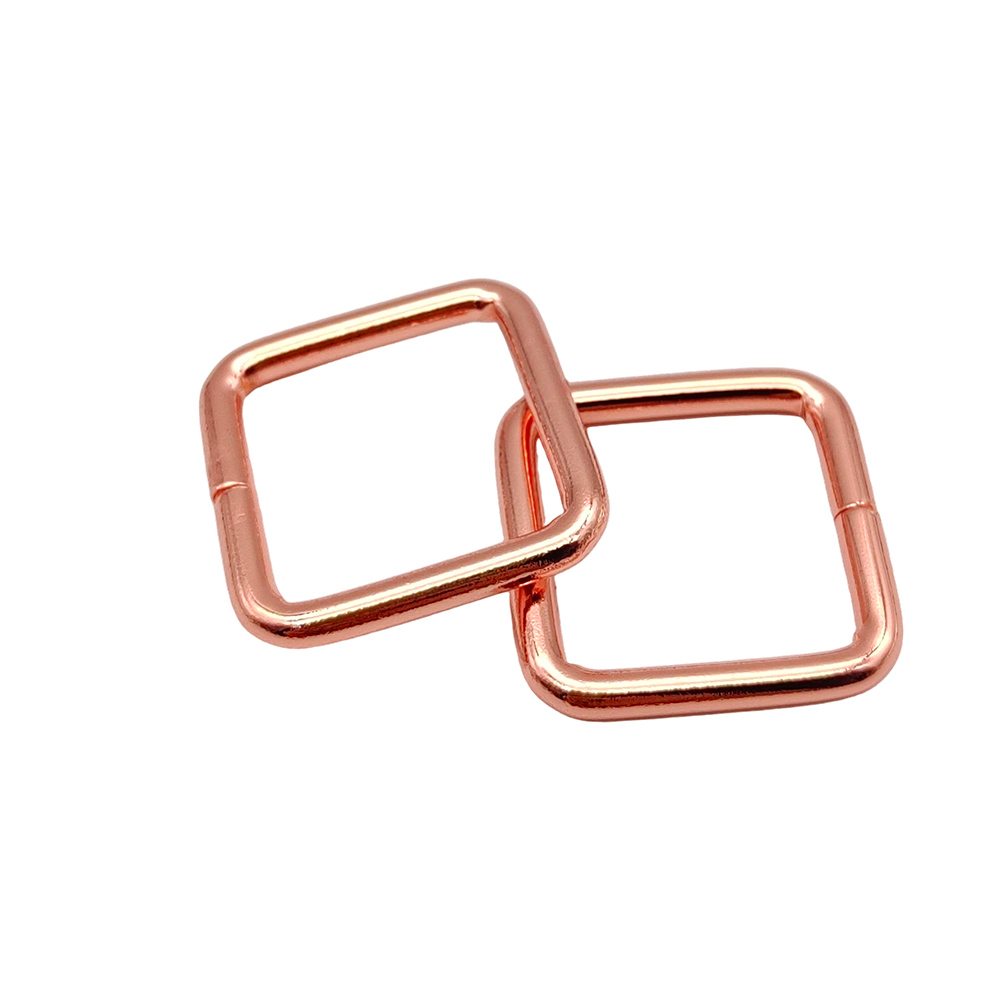

Why does an iron square ring have a visible seam?

The seam is the welded joint created after the wire is bent into shape. Proper grinding and polishing reduce its visibility, but it remains part of the manufacturing signature of bent iron hardware. A well-finished seam does not compromise strength when the weld penetration is complete.

When should a buyer choose iron over zinc alloy?

Choose iron when the project prioritizes cost efficiency, mid-volume production, and acceptable visual quality under electroplating. Choose zinc alloy when the design requires a seamless surface, tighter tolerances, or a higher price positioning.

Does the weld affect long-term durability?

Only if the weld is incomplete or poorly ground. In controlled production the joint is inspected for full penetration and then polished so the plating layer covers it evenly. Salt-spray testing remains the practical verification method for both iron and zinc alloy finishes.

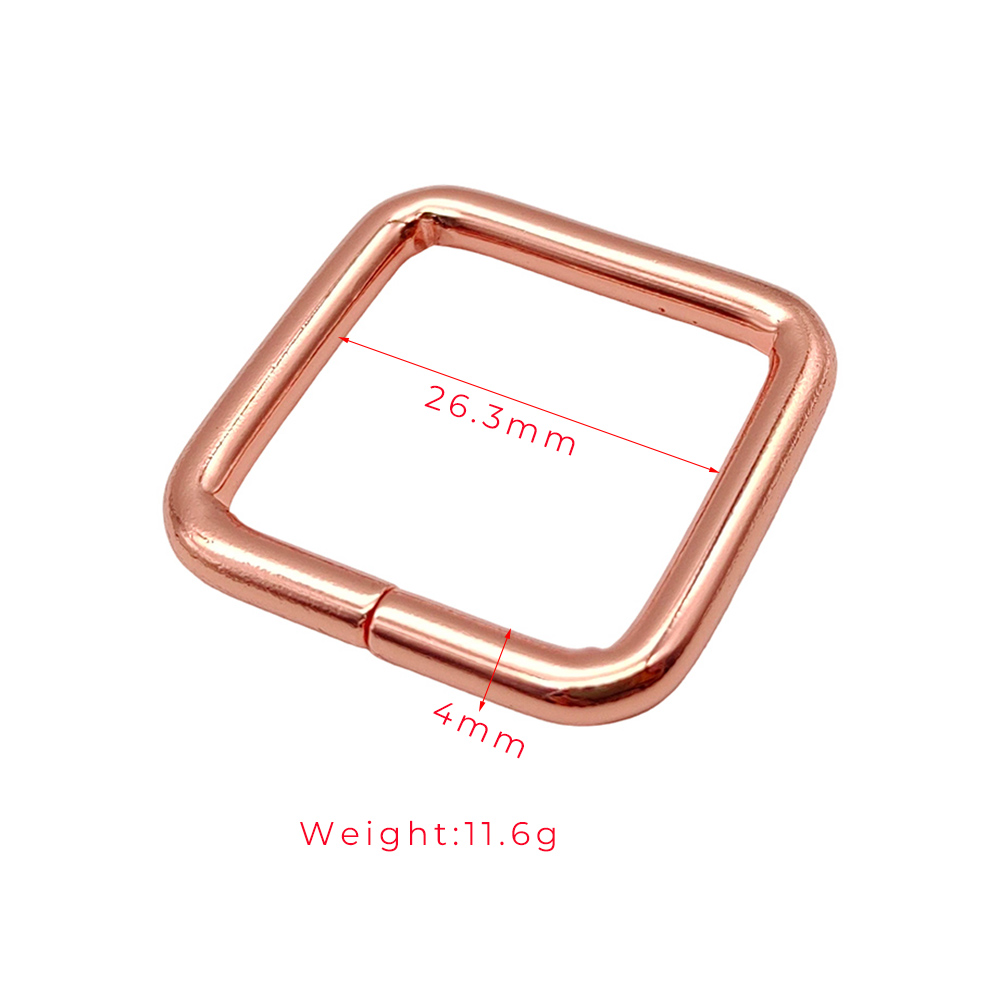

Technical Drawing Explanation – What the Dimensions Mean

The marked 26.3 mm dimension represents the approximate inner opening of the square. This measurement determines the maximum strap or webbing width that can pass through the ring without excessive friction. A 4 mm wire diameter provides both structural rigidity and a substantial visual presence on the finished bag. The overall weight of 11.6 g is light enough for fashion handbags yet heavy enough to feel solid when the strap is handled.

Buyers should also consider the outer envelope. The rounded corners reduce stress concentration on the strap and prevent the ring from catching on clothing or other hardware. During prototype development we routinely check that the inner corners allow free movement of the chosen strap thickness while the outer profile remains compatible with the bag’s design language.

Manufacturing Process – From Wire to Finished Ring

Raw iron wire is first cut to precise length. The wire is then formed on a dedicated bending machine that creates the square profile with consistent corner radii. The open ends are brought together and welded under controlled heat and pressure. After welding, the joint is ground flush and the entire ring is polished through successive stages to remove tool marks and prepare a uniform surface for plating.

Electroplating follows. Multiple polishing stages before plating help achieve consistent coverage across the curved surfaces and the former weld area. The rose-gold tone shown on this sample is produced by a carefully controlled copper-based plating system. After plating, each ring undergoes visual inspection and a sample batch is subjected to salt-spray testing. Only rings that pass both dimensional and surface checks proceed to packing in pearl foam and OPP bags inside export cartons.

In our factory the process is deliberately sequential. Skipping polishing or reducing plating thickness is the most common cause of early surface failure reported by buyers who source from less controlled suppliers.

Factory Expert Tips for Specifying Square Ring Bag Hardware

• Match the inner opening to the actual strap width plus a small clearance; 26.3 mm works well for many 20–25 mm straps.
• Request plating thickness data and salt-spray hours rather than relying on appearance alone.
• Inspect the weld area under magnification on first samples; incomplete penetration is the main quality risk with bent iron rings.
• For higher-end lines consider switching to zinc alloy when the design brief emphasizes a seamless look.
• Confirm packaging method early; pearl foam protection prevents plating scratches during ocean freight.

Common Buying Mistakes

• Choosing hardware only by finish color without checking base material and forming method.
• Ignoring the presence of a weld seam on iron rings and later treating it as a defect.
• Specifying inner dimension without measuring the actual strap thickness that will pass through.
• Accepting the lowest price without verifying polishing and plating process control.
• Ordering zinc alloy expectations while approving an iron sample, then discovering the cost difference too late.

Buyer Decision Guide

This iron square ring bag hardware is well suited for fashion brands, mid-volume OEM programs, and commercial bag lines that need reliable strap connectors at a competitive cost. It is less ideal for ultra-luxury collections that demand a completely seamless appearance or for technical outdoor gear that requires maximum strength-to-weight ratios. Small design studios and larger factories both use the same component successfully once the material trade-off is clearly understood.

OEM Customization Options

Custom mold development is available for non-standard sizes. Laser or embossed logo marking can be added on the face of the ring when volume justifies the tooling. Electroplating options include rose gold, gold, silver, gunmetal, antique brass, and custom Pantone-matched tones. Private-label packaging, barcode labels, hang tags, and retail boxes are routinely supplied. Sampling for custom finishes normally takes 5–7 days; production runs of 1000 pcs and above ship within the standard 10–15 day window.

Applications and Real Development Experience

During one recent OEM project a European fashion brand needed a cost-controlled strap connector for a new crossbody collection. The initial zinc alloy quotation exceeded the target cost structure. Switching to the iron bent-and-welded version with the same outer dimensions and rose-gold plating brought the unit price into range while still delivering the required visual finish under store lighting. The only adjustment was a slightly longer polishing cycle to minimize the appearance of the weld. The collection launched on schedule and the hardware has shown no elevated return rate after two full seasons.

Similar iron square rings appear on everyday handbags, weekend totes, and adjustable shoulder straps where the priority is consistent function rather than absolute seamless perfection.

Care and Maintenance

Iron-based hardware with electroplated finish should be kept dry during storage and transport. Prolonged exposure to high humidity or acidic environments can accelerate corrosion if the plating layer is damaged. Avoid abrasive cleaners; a soft cloth is sufficient for routine dusting. When bags are shipped, individual pearl-foam wrapping prevents metal-to-metal contact that can scratch the plating. In retail display, occasional light polishing maintains the rose-gold appearance.

FAQ

What is the difference between iron and zinc alloy square rings?
Iron rings are bent from wire and welded, resulting in a lower cost and a visible seam. Zinc alloy rings are die-cast or stamped without a weld, offering higher consistency and a seamless look at a higher price.

Does the weld seam affect strength?
A properly executed weld with full penetration and subsequent grinding does not reduce the functional strength of the ring under normal handbag loads.

What is the MOQ for this square ring bag hardware?
Standard MOQ is 1000 pcs, negotiable based on order details and finish requirements.

How long does sampling take?
Stock samples ship quickly; custom finish or size samples require 5–7 days.

Can you provide different plating colors?
Yes. Rose gold, gold, silver, gunmetal, antique brass, and custom colors are available through electroplating.

Is free sample available?
Free stock samples are available; custom sample fees are fully deductible from bulk orders. Courier charges are borne by the customer.

What packaging is used?
Pearl Foam + OPP Bag + Export Carton, or customized packaging upon request.

Do you support OEM logo or private label?
Yes. Laser marking, embossing, and full private-label packaging are routinely handled.

Why Choose DG Buddy

Nearly 20 years of continuous manufacturing experience means our team has already solved the common plating, welding, and dimensional issues that first-time buyers encounter. We provide engineering support during prototype stages, maintain consistent QC inspection, and keep communication responsive throughout the order cycle. Long-term partners value the ability to move from sample to bulk without unexpected process changes.

Related Categories

• Handbag Ring Hardware
• Bag Strap Connector Hardware

Related Products

• Metal D Ring for Handbags
• Bag Chain Connector

Ready to Move Forward

If you already have technical drawings or a target cost structure, send them over and we will confirm material, finish, and lead time within one working day. If you are still comparing iron versus zinc alloy options, we are happy to prepare side-by-side samples so your team can evaluate both under the same lighting and handling conditions. Free stock samples of the current iron square ring bag hardware are available now.
