Brand:DG Buddy
This zinc alloy spring o ring clasp is an openable round connector for handbags, removable straps, purse chains, bag charms and keychain accessories. The manually operated spring gate supports quick attachment without a separate snap hook. Nearly 20 years of manufacturing experience, free stock samples available, OEM customization supported
A spring o ring clasp is an openable round metal connector used for handbags, purse straps, bag chains, keychains, bag charms, and removable accessory systems. Unlike a fixed o ring, this component has a manually operated spring gate: press the gate inward to create an opening, attach a leather loop, chain link, strap ring, or charm, then release it to close. This 27.5mm zinc alloy style is designed for fashion hardware applications where buyers need a compact, detachable connection without adding a separate snap hook.
For bag development, the main selection points are not only the outer appearance. Buyers should check the usable inner opening, gate clearance, return action, ring thickness, plating consistency, and how the hardware works with the mating strap or chain. The pictured light gold version weighs approximately 20 g and has an approximately 27.5 mm inner opening, making it suitable for many medium-size handbag and purse accessory assemblies.
This spring o ring clasp has two working areas: the round ring body and the movable gate. The round body carries the connected leather loop, chain link, webbing tab, or accessory ring. The gate provides access to that space. When a user presses the gate inward, the internal spring compresses and creates an opening. Once the connected component is in place, releasing the gate allows the spring to return it to the closed position.
In handbag hardware, a smooth return does not simply make the component feel better. It helps prevent a partly closed gate from catching a chain link, damaging a plated surface, or allowing a charm connection to sit awkwardly. During sample review, operate the gate repeatedly and look at its closing line from the front and side. The gate should return consistently, align closely with the fixed body, and avoid sharp edges at the meeting point.
Buyers should also distinguish a spring gate ring from a swivel hook. This ring opens for attachment, but it does not include a rotating shaft. If the finished shoulder strap needs to reduce twisting during use, pair the ring with a compatible swivel snap hook rather than expecting rotation from the spring ring itself. DG Buddy offers separate swivel hook hardware for that purpose. Explore compact swivel snap hook hardware.

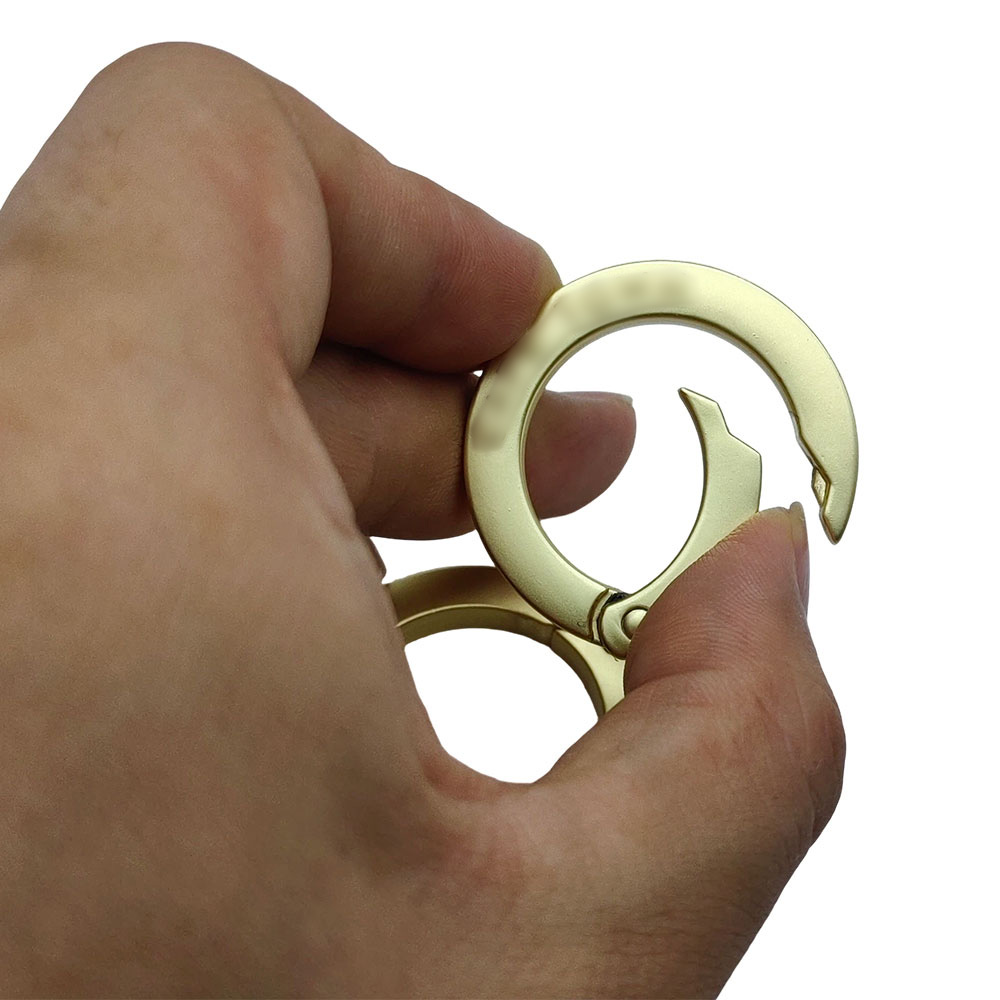

An opening o ring has a movable gate that lets the assembler attach or remove a compatible component after the bag, strap, or chain has already been made. A conventional closed o ring has no access point, so the leather loop, webbing, or chain must be assembled around it before the final seam, rivet, or closure is completed. This distinction is especially important for removable bag charms, convertible straps, and chain accessories.
The gate adds serviceability and styling flexibility. A designer can use the same ring as a bag-chain connector, a removable charm holder, a keychain attachment point, or a temporary strap connection. For a handbag collection with interchangeable accessories, the spring gate can reduce the need for multiple permanent hardware assemblies. The user must still confirm that the mating component fits through the actual gate opening rather than relying only on the inner diameter.
When comparing d-rings and o rings, shape and assembly method should guide the decision. A D ring has a flat side that sits neatly against a leather tab or webbing loop. A fixed O ring allows a connection to move around a circular path. This spring o ring clasp is an openable O-ring style that adds detachable access. It should be selected when convenience of connection matters more than a permanently closed ring.
| Comparison Point | Spring O Ring Clasp | Fixed O Ring | D Ring |
|---|---|---|---|
| Basic Shape | Round ring with movable spring gate | Closed round ring | D-shaped ring with straight and curved sides |
| Manual Opening | Yes | No | No |
| Detachable Connection | Suitable for chain links, charms, strap loops, and accessory rings | Requires pre-assembly before closing the bag component | Requires pre-assembly before closing the bag component |
| Gate Mechanism | Spring-loaded inward-opening gate | None | None |
| Typical Use | Removable straps, bag charms, chains, keychains | Permanent strap or chain connection | Leather tabs, webbing loops, strap attachment |
| Key Inspection Point | Gate opening, rebound, alignment, and spring fatigue | Ring shape, casting integrity, and surface finish | Flat-side fit, shape stability, and surface finish |
| Best for Convertible Designs | Yes | Limited | Limited |
| Assembly Flexibility | High | Medium | Medium |
This zinc alloy spring o ring uses Die Casting to create a substantial round body, a shaped gate area, and the detailed interfaces required for spring assembly. For fashion handbag hardware, Zinc Alloy is often selected because it supports styling freedom and can be polished before Electroplating. Compared with a simple bent-wire ring, a die-cast component can provide a broader, more sculptural profile that coordinates visually with turn locks, zipper pulls, buckles, metal logos, and decorative chain hardware.
Material selection should still be based on the application. A metal o ring for a lightweight handbag charm has different requirements from hardware used on a heavily loaded travel bag. Brass may be considered when a project requires a different base-metal character or a particular finish-development route. Stainless steel may be selected for environments where corrosion resistance is the primary concern. This product, however, is a zinc alloy fashion-hardware component and should not be presented as a climbing-grade or safety-rated connector.
A well-finished zinc alloy spring o ring depends on more than the casting itself. After trimming, the surface needs controlled Grinding and Polishing to reduce casting marks around curved areas and the gate joint. The component is then prepared for Electroplating. In a light gold finish, small surface defects can become visible under showroom lighting, so buyers should approve the ring together with the full hardware set rather than approving a single isolated sample.
| Material Consideration | Zinc Alloy Spring O Ring | Brass Ring Hardware | Stainless Steel Ring Hardware |
|---|---|---|---|
| Common Manufacturing Route | Die Casting, polishing, spring assembly, plating | Forging, machining, casting, or wire forming | Wire forming, stamping, machining, or casting |
| Shape Freedom | Suitable for shaped bodies and integrated gate details | Good, depending on process | Often more practical for wire-form or stamped forms |
| Fashion Finish Options | Broad plating and color coordination options | Natural brass and plated finishes possible | Often selected for steel appearance or functional requirements |
| Visual Weight | Can create a broad, solid handbag-hardware profile | Often associated with traditional premium hardware character | Usually more technical or utilitarian in appearance |
| Suitable Decision Factor | Fashion shape, cost control, plating coordination | Base-metal preference and finish requirement | Environmental exposure and functional requirement |
| Key QC Focus | Casting density, polish, gate fit, plating | Surface finish, forming consistency, plating | Forming quality, edge condition, material grade |
| Best Evaluated By | Approved sample plus full bag-hardware assembly | Approved sample plus finish reference | Application and environmental requirement review |
The approximately 27.5 mm inner opening of this 27.5mm spring o ring clasp is only one measurement in the selection process. Before confirming an order, measure the thickness and width of the mating component: a leather tab, folded webbing loop, chain link, charm loop, key ring, or strap-end connector. A component may fit through the nominal inside diameter but still fail to pass through the opening created by the spring gate.
Allow clearance for practical assembly. If a leather tab has folded layers, edge paint, stitching, or a riveted reinforcement, its effective thickness can be significantly greater than the raw leather thickness. Likewise, a decorative bag chain may have a link that is narrow in one direction but too tall in the other to enter the gate. During prototype development, we recommend checking the intended mating part with a physical sample instead of relying only on a two-dimensional drawing.

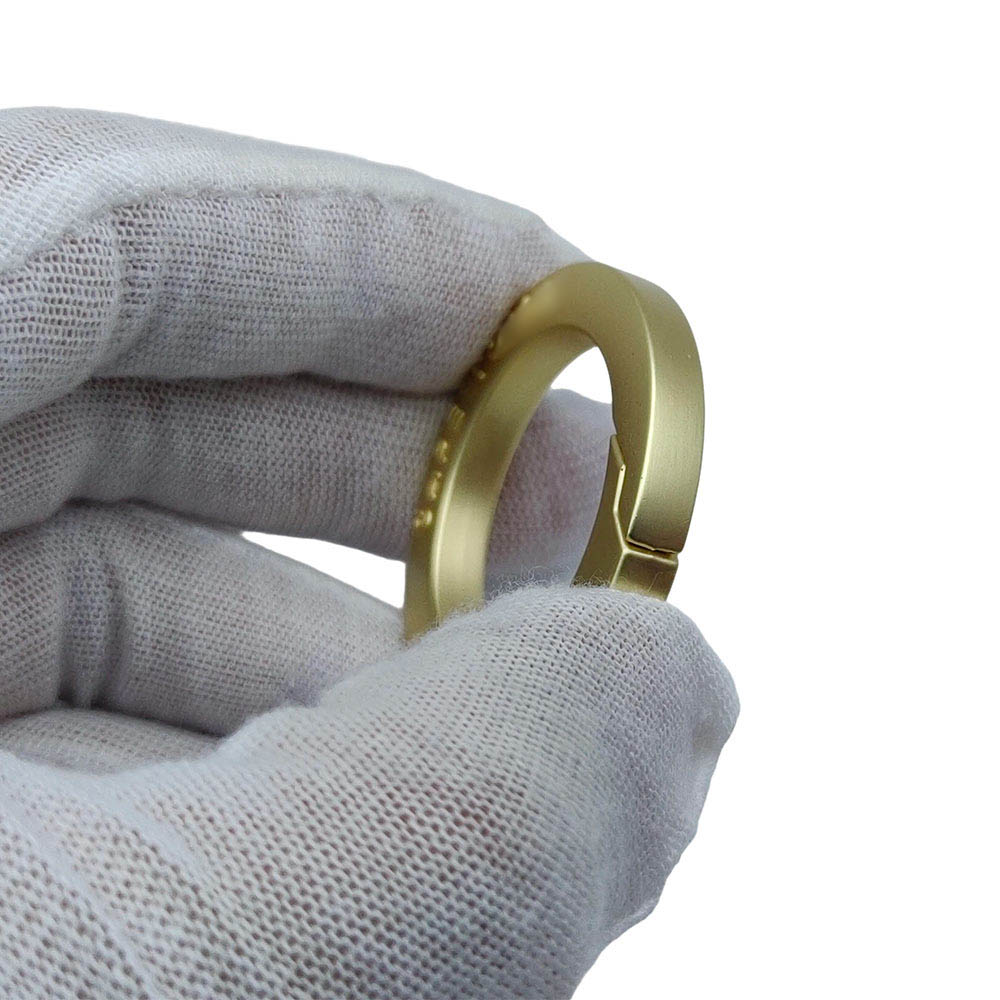

The approximate 5.2 mm ring thickness affects both visual proportion and component compatibility. Thicker ring sections can look more substantial beside a wide handbag strap or prominent turn lock, but they also reduce available inner space and may create a tighter fit with small chain links. Designers should evaluate the ring’s profile with the full bag rather than selecting only by a digital rendering.
A spring o ring clasp for bags is useful when the finished product needs a connection that can be opened by hand. In handbags and purses, it can hold a removable shoulder strap, a decorative chain, a hanging pouch, a bag charm, or a detachable key holder. For small leather goods, it can create an attachment point for a wristlet loop or removable accessory. In keychain hardware, the same spring-gate principle lets users add or remove a fob without opening a stitched or riveted assembly.
One common development situation involves a fashion brand designing a shoulder bag with a removable metal charm. A fixed o ring would require the charm to be assembled before final construction, limiting later styling changes. A spring ring clasp for bag chain attachment lets the brand attach the charm after the bag is completed, test several charm styles, and offer interchangeable add-ons without altering the bag body. The supplier should first confirm that the charm’s connecting loop passes through the gate comfortably.

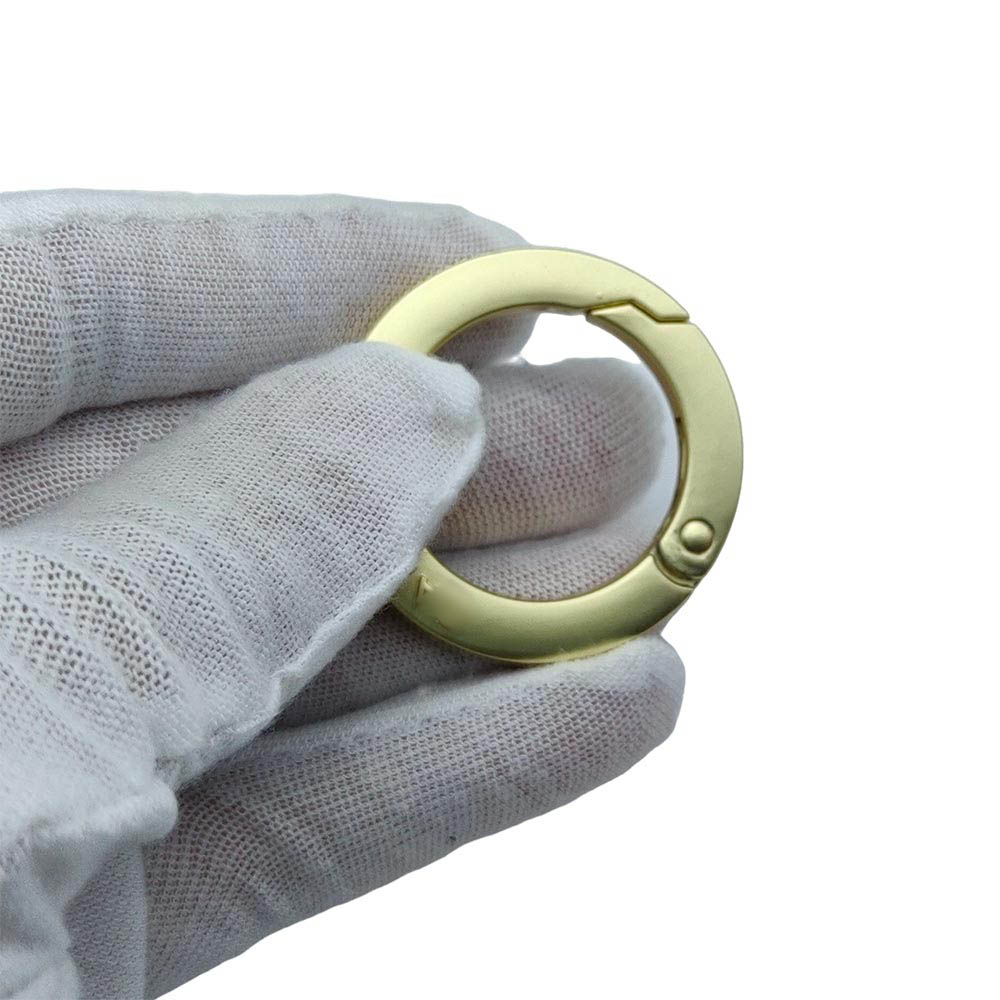

This product can also serve as an o ring for handbags when the buyer needs a round visual form with detachable access. For a structured handbag, it may connect a chain element to a leather tab. For a softer hobo bag, it may be used as an accessory point for a pouch or removable strap. It is not intended to replace a purpose-built swivel hook when a strap must rotate freely during use.
For brands building coordinated accessory collections, o rings for handbags can appear across several products: bag straps, detachable charms, keychain fobs, wallets, and small pouches. This creates a consistent hardware language. A handbag o ring with a spring gate can support that system while allowing the customer to change components after purchase.

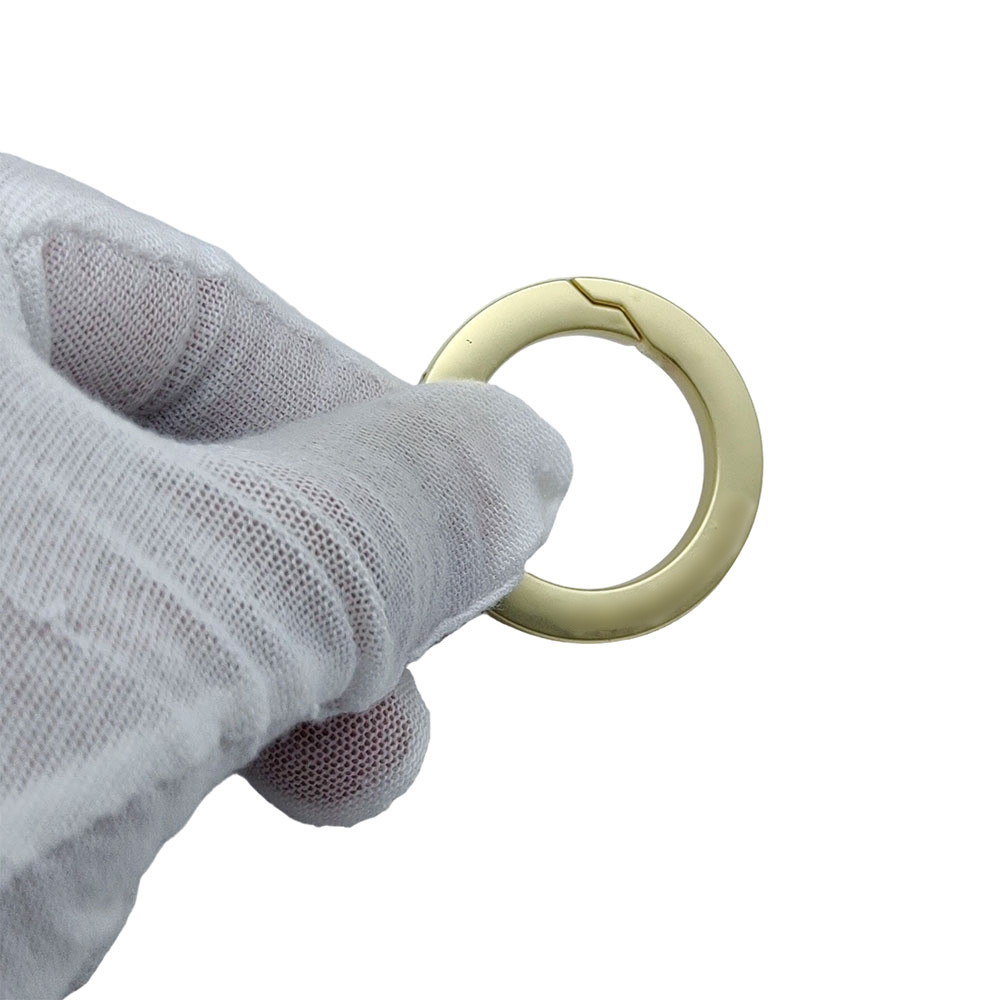

Suggested product-detail image placement: Show the front view, the gate in closed position, and a close-up of the movable gate joint. The image should make it clear that this is an openable round clasp rather than a fixed ring.
The image provides a useful starting point for product development, but the final production drawing should confirm every critical dimension. A technical drawing is not only a record of size; it is a tool for preventing assembly problems between the ring, the strap, the chain, and the final bag body.

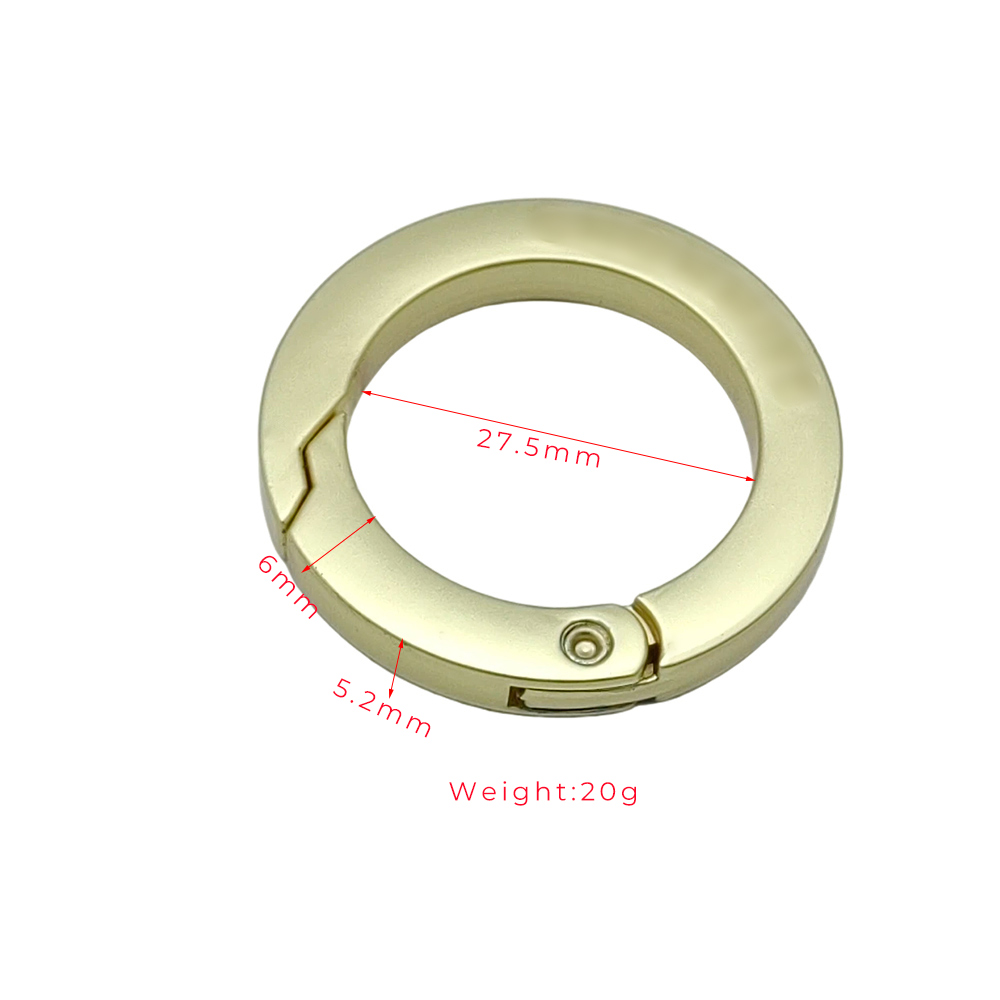

| Drawing Item | Image-Based Reference | Why Buyers Should Check It |
|---|---|---|
| Inner Opening | Approximately 27.5 mm | Determines whether a leather loop, webbing tab, chain link, or accessory ring can sit inside the ring body. |
| Ring Thickness | Approximately 5.2 mm | Influences appearance, casting mass, inner clearance, and compatibility with chain links. |
| Side Depth | Approximately 6 mm | Affects how the ring sits against leather, webbing, a chain link, or another piece of bag hardware. |
| Gate Location | Lower front section shown | The gate must remain accessible after the component is installed on the finished bag. |
| Gate Opening Width | Please confirm by approved drawing | Controls whether the mating component can actually enter the ring. |
| Outer Diameter | Please confirm by approved drawing | Controls visual proportion relative to the bag body, strap width, and companion hardware. |
| Weight | Approximately 20 g | Influences accessory feel, shipping weight, and suitability for smaller fashion bags. |
For a zinc alloy spring o ring clasp for handbags, the drawing should also identify the gate travel direction, the acceptable gap at the closure line, and any tolerance that affects spring installation. If a buyer plans to use a custom leather tab, sending a sample tab or a full-size CAD profile can reduce trial rounds and help confirm fit before bulk production.
Suggested technical-drawing image placement: Add a dimensioned image showing the inner opening, outer diameter, ring thickness, side depth, gate location, and usable gate-opening clearance.
For this product, manufacturing starts with Zinc Alloy material selected for the approved die-cast process. Molten alloy is injected into the custom mold to form the main ring body and gate-related features. Die Casting is valuable for this type of handbag hardware because the product needs a controlled round profile, a clean gate interface, and a consistent exterior shape across a bulk order.
After casting, excess material is trimmed. The parts then move through Grinding and Polishing stages. This preparation is important because the light gold surface will reflect small scratches, casting seams, pits, and uneven edges more visibly than a rougher antique finish. Particular attention should be given to the curved outer surface, the gate contact line, and recessed sections near the opening mechanism.
The spring gate is assembled after the relevant mechanical features are prepared. During this stage, the gate should be checked for smooth movement, stable return, and reasonable alignment with the main ring body. The component then receives the selected Electroplating finish. Depending on the project, finish evaluation may include color matching, surface adhesion review, and Salt Spray Testing based on the buyer’s agreed test method and specification.
Before packing, QC Inspection should cover dimensions, gate action, visible scratches, plating tone, closure alignment, and quantity. For light gold hardware, mixed-lot control is important: color variation can become apparent when the ring is placed beside a lock, zipper pull, buckle, or logo plate from a different production run. The final packaging method is Pearl Foam + OPP Bag + Export Carton, helping reduce part-to-part abrasion during transport.
Suggested factory-production image placement: Use a production image showing die casting, manual polishing, spring assembly, and finish inspection for zinc alloy handbag hardware.
| Buyer Type | Suitable? | Reason |
|---|---|---|
| Fashion Handbag Brand | Yes | Useful for removable charms, accessory chains, convertible straps, and coordinated metal details. |
| Luxury Accessory Label | Yes, after sampling | Suitable when finish matching, smooth gate action, and visual proportion are controlled across the hardware set. |
| OEM Bag Factory | Yes | Can simplify attachment of selected chains, charms, and detachable accessory components. |
| Small-Batch Designer | Yes | Suitable for collections requiring flexible accessory combinations and distinct bag hardware details. |
| Keychain or Gift Supplier | Yes | Useful for detachable fobs, hanging ornaments, and packaging accessories. |
| Heavy-Duty Outdoor Gear Brand | Needs separate engineering review | This fashion-hardware product should not be assumed suitable for safety-critical or climbing-related use. |
An openable o ring for bag straps is especially useful when the strap or accessory must be attached after the bag body is complete. However, a removable shoulder strap that carries the full weight of a bag needs a complete hardware-system review. The ring, leather tab, rivets, reinforcement material, snap hook, and strap construction must work as one assembly. A ring alone should never be assigned a load claim without confirming the final use condition.
DG Buddy supports OEM and ODM development for zinc alloy handbag hardware. For standard projects, buyers can select an existing ring size and adjust the finish, packaging, or matching accessory components. For a new collection, a custom mold can be developed to change the ring diameter, body thickness, gate geometry, visual profile, logo location, or companion connection point.
For OEM quotation, provide the target quantity, finish reference, intended application, technical drawing or sample, required inner opening, gate clearance requirement, and delivery destination. Free stock samples available; custom sample fees fully deductible from bulk orders. Courier charges are borne by the customer.
Light gold plated Zinc Alloy hardware should be protected from unnecessary abrasion during bag assembly, packing, storage, and transportation. Avoid placing loose metal components directly against one another. Pearl foam, individual OPP separation, and controlled carton packing help reduce friction marks on curved polished surfaces.
For end-product care, avoid prolonged contact with strong acids, solvents, or cleaning chemicals. Sweat, humidity, cosmetics, and residue from leather treatments can affect the visual condition of decorative plated hardware over time. Wipe the component with a clean, dry, soft cloth when necessary. Do not use abrasive pads or aggressive metal cleaners, as they can scratch the Electroplating surface.
Store unfinished hardware in a dry environment and keep light gold parts separated from darker finishes to avoid mix-ups during assembly. If the product will be combined with a chain, lock, or buckle, protect each component during transport so the gate and polished ring surface do not rub against sharp edges.
A spring O ring clasp has a movable, spring-loaded gate that can be pressed inward to create an opening. A fixed O ring is permanently closed and must be assembled into the bag, chain, or strap before the surrounding construction is completed. The openable design is useful for removable bag charms, keychain accessories, detachable chain elements, and selected strap systems. A fixed ring is generally more suitable where the connection should remain permanently closed.
It can be used in detachable handbag strap designs if the complete assembly is reviewed first. Confirm the bag weight, strap width, leather-tab reinforcement, mating hook or loop, gate clearance, and expected use frequency. The ring should not be evaluated alone. For a strap that needs twist reduction, pair it with a swivel snap hook rather than relying on the ring itself for rotation. Sample testing with the actual strap construction is recommended before bulk production.
The approximately 27.5 mm inner opening is the open space inside the circular ring body. It helps indicate the size of the strap loop, chain link, leather tab, or accessory component that can sit inside the ring. It does not automatically confirm that a part can be inserted through the spring gate. Buyers should also confirm the usable gate-opening width and test the mating component physically during sample development.
Yes, Zinc Alloy is commonly used for shaped handbag hardware because Die Casting can produce a consistent round profile, defined gate area, and decorative form. The material can be polished and electroplated to coordinate with other bag components. Suitability still depends on the product’s intended function. This item is designed for fashion accessory and handbag hardware applications, not as a safety-rated, climbing, or heavy-duty industrial connector.
Yes. DG Buddy can review a drawing, sample, CAD file, or reference image for a custom spring o ring clasp manufacturer project. The review should include target inner opening, outer size, ring thickness, gate location, required gate clearance, intended application, finish reference, logo requirement, packaging, and order quantity. A custom mold may be needed if the existing product dimensions or shape do not meet your collection requirements.
The MOQ for this individual hardware product is 1000 pcs, negotiable based on order details. Final MOQ may depend on whether the buyer selects an existing mold, requests a custom mold, requires a special plating finish, needs branded packaging, or combines this order with other handbag hardware components. Sharing the target quantity and finish at the inquiry stage helps us recommend the most practical production route.
Free stock samples available. If the required spring ring is available in stock, DG Buddy can arrange a stock sample for evaluation. For customized dimensions, a new mold, special finish matching, branded details, or project-specific assembly, a custom sample may be required. Custom samples require a sampling fee. Custom sample fees are fully deductible from bulk orders. Courier charges are borne by the customer.
Custom sample time is 5–7 Days. Production Time is 10–15 Days, and Delivery Time is 10–15 Days. These standard times apply after the key project details are approved, including the mold route, finish reference, sample confirmation, quantity, and packaging requirement. A custom development project may require additional communication before sampling if the gate structure, size tolerance, or companion component needs engineering review.
Yes, finish matching can be evaluated for a coordinated handbag hardware set. The most reliable method is to supply physical references or approve a sample set containing the spring O ring clasp, lock, zipper pull, buckle, logo plate, and chain where relevant. Light gold can vary under different lighting conditions, so buyers should avoid approving one loose component in isolation. Color, gloss, and surface texture should be reviewed as a complete assembly.
We maintain quality certification documentation and are happy to provide the current valid certificates upon request during your sourcing evaluation. For this product, buyers should also communicate any required inspection method, dimensional tolerance, finish expectation, sampling plan, or packaging standard before mass production. This helps the QC Inspection process focus on the product features that matter to the final bag application.
DG Buddy has nearly 20 years of manufacturing experience in handbag hardware, including rings, buckles, snap hooks, chains, locks, metal logos, zipper pulls, and custom metal components. For an openable spring ring, our role is not limited to supplying a plated part. We help buyers review how the ring works with the strap, chain, charm, leather tab, and other matching hardware.
During prototype development, practical questions often matter more than a catalog photo: Can the chain link enter through the gate? Will the light gold finish match the turn lock? Is the gate accessible after stitching the leather tab? Does the selected ring create enough clearance for a folded strap? These are the points that determine whether the final product feels intentional and functions as expected.
If you are sourcing a spring o ring clasp for a handbag, removable strap, chain accessory, keychain, or bag charm, send DG Buddy your drawing, target inner opening, strap or chain sample, plating reference, estimated quantity, and packaging requirement. We can review whether this approximately 27.5 mm zinc alloy style fits your assembly or whether an alternative size, finish, gate geometry, or custom mold would better suit the project.
If you are still comparing suppliers, begin with the parts that affect actual assembly: gate clearance, return action, finish matching, ring thickness, and the mating component. A workable sample set saves more development time than selecting hardware only from a product image. Contact DG Buddy for stock sample availability, OEM development support, and a quotation based on your final project specifications.
| Field | Specification |
|---|---|
| Product Name | Zinc Alloy Spring O Ring Clasp |
| Model | DG-RG028 |
| Material | Zinc Alloy |
| Weight | Approximately 20 g |
| Structure | Round ring body with a manually operated inward-opening spring gate |
| Operation Method | Press the spring gate inward to open; release to close automatically |
| Finish Shown | Light Gold Electroplated Finish |
| Other Finish Options | Gold, Light Gold, Silver, Gunmetal, Black, Antique Brass, Antique Nickel and Custom Finish |
| Inner Dimension | Approximately 27.5 mm |
| Ring Thickness | Approximately 5.2 mm, |
| Side Depth | Approximately 6 mm |
| Application | Handbags, purses, shoulder bags, crossbody bags, bag chains, removable straps, bag charms, wallets and keychains |
| Installation Method | Press the gate inward and attach a chain link, leather loop, webbing tab, strap ring, charm loop or compatible accessory component |
| Manufacturing Process | Die Casting, Trimming, Grinding, Polishing, Spring Assembly, Electroplating and QC Inspection |
| Surface Treatment | Electroplating; PVD or painted finishes may be evaluated according to project requirements |
| Customization | OEM / ODM size, custom mold, finish, logo, private label and packaging supported |
| Packaging | Pearl Foam + OPP Bag + Export Carton |
| MOQ | 1000 pcs (negotiable based on order details) |
| Sample Time | 5–7 Days |
| Production Time | 10–15 Days |
| Delivery Time | 10–15 Days |
