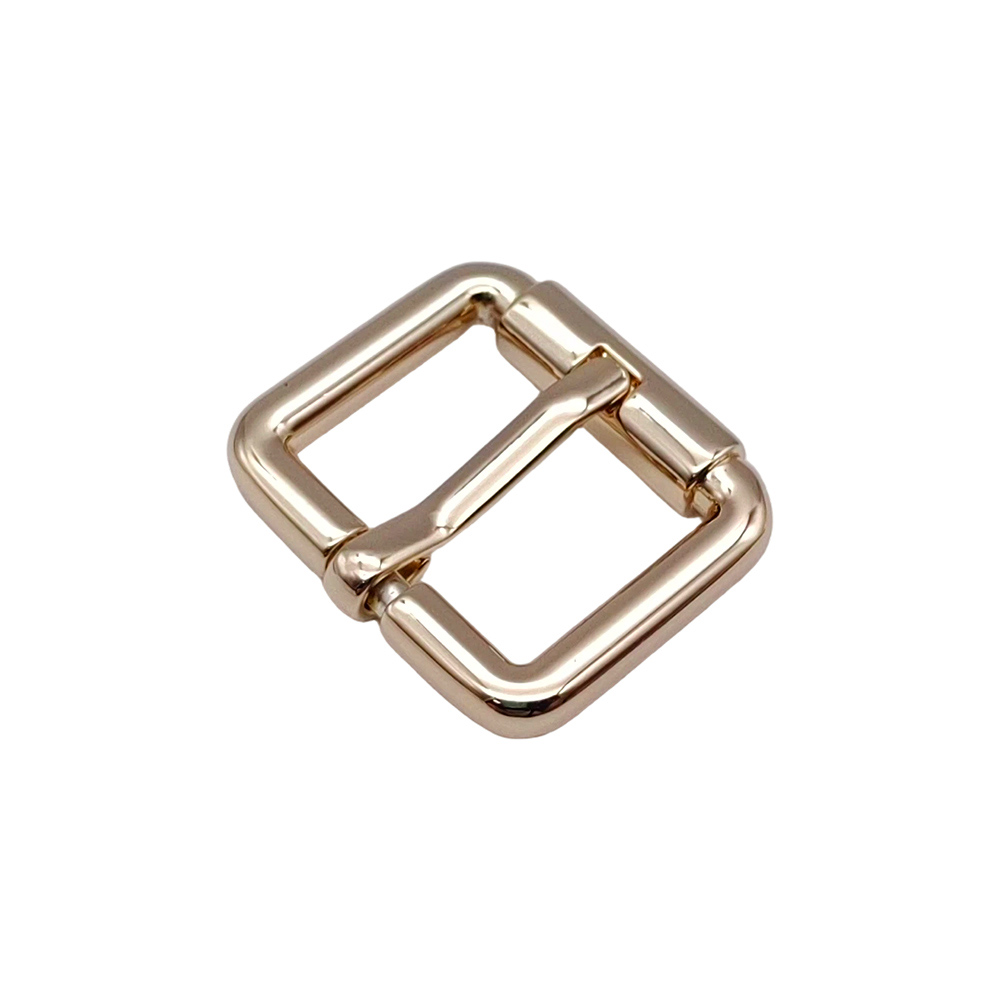

Metal Bag Buckle Gold Square Frame Pin Style | DG-BB025

Quick Answer

A metal bag buckle is a functional and decorative hardware component designed to adjust and secure straps on handbags, shoulder bags, crossbody styles and related fashion accessories. The gold square frame version presented here features a clean rectangular outer structure, a pivoting pin tongue and a polished gold-tone electroplated finish on a zinc alloy base. With an outer reference dimension of approximately 25.5 mm, an effective strap passage near 19.3 mm and a total weight of 18 g,

it offers a practical balance between visual presence and everyday usability. Buyers evaluating options for metal buckle for bags or handbag buckle applications frequently begin with this form factor because it combines reliable adjustment with a restrained, modern appearance suitable for contemporary collections.

Key Takeaways

• Square frame metal bag buckle with pin tongue provides secure and adjustable strap control.
• Zinc alloy die-cast body delivers consistent wall thickness and structural rigidity.
• Multi-stage polishing followed by gold electroplating produces a clean, retail-ready surface.
• 18 g weight conveys quality without adding unnecessary bulk to the finished bag.
• Internal clearance is sized for common handbag and shoulder bag strap widths.
• Full OEM support covers size adjustment, plating color, logo treatment and private-label packaging.
• Free stock samples are available; custom sample fees are fully deductible from bulk orders.

Understanding the Role of a Metal Bag Buckle in Modern Handbag Design

In contemporary handbag development the choice of hardware is rarely purely decorative. A well-selected metal bag buckle influences both the tactile experience of adjusting the strap and the overall visual balance of the finished piece. When the hardware is too large it dominates the design; when it is too light or loosely finished it can undermine the perceived quality of an otherwise carefully made bag. The square frame style with a central pin tongue occupies a useful middle ground: it remains visible enough to serve as a design accent while remaining compact enough for daily carry.

One thing buyers often ask during early sampling is how the hardware will behave after months of regular use. Strap edges can abrade against sharp corners, plating can wear at high-contact points, and a poorly retained tongue can allow gradual slippage. Addressing these points at the design stage reduces the risk of later returns and protects the brand’s reputation for quality. In our factory we therefore treat every metal bag buckle as both a mechanical component and a visible brand element.

Quick Knowledge

Functional bag hardware versus decorative belt styles

A decorative belt buckle is frequently designed around a large ornamental surface and may tolerate greater weight or bulk. In contrast, a bag buckle or bag strap buckle must maintain clear strap passage, controlled tongue movement and moderate mass so that it does not distort the silhouette of a soft handbag. The square frame pin style is engineered with these constraints in mind.

Why zinc alloy continues to be specified for metal buckle hardware

Zinc alloy offers excellent flow characteristics in die casting, allowing relatively thin yet rigid frame walls. It responds well to progressive polishing and accepts a wide range of electroplated finishes. For volume production of a zinc alloy belt buckle adapted to bag use, the material provides a practical combination of dimensional stability, cost efficiency and surface quality.

Surface preparation and gold-tone durability

The final appearance of a gold square belt buckle depends heavily on the condition of the base metal before plating. Multiple polishing stages remove tool marks and create a uniform surface that allows the gold layer to sit evenly. Without this preparation, high points on the frame or pin can receive thinner coverage and show wear earlier in the product life cycle.

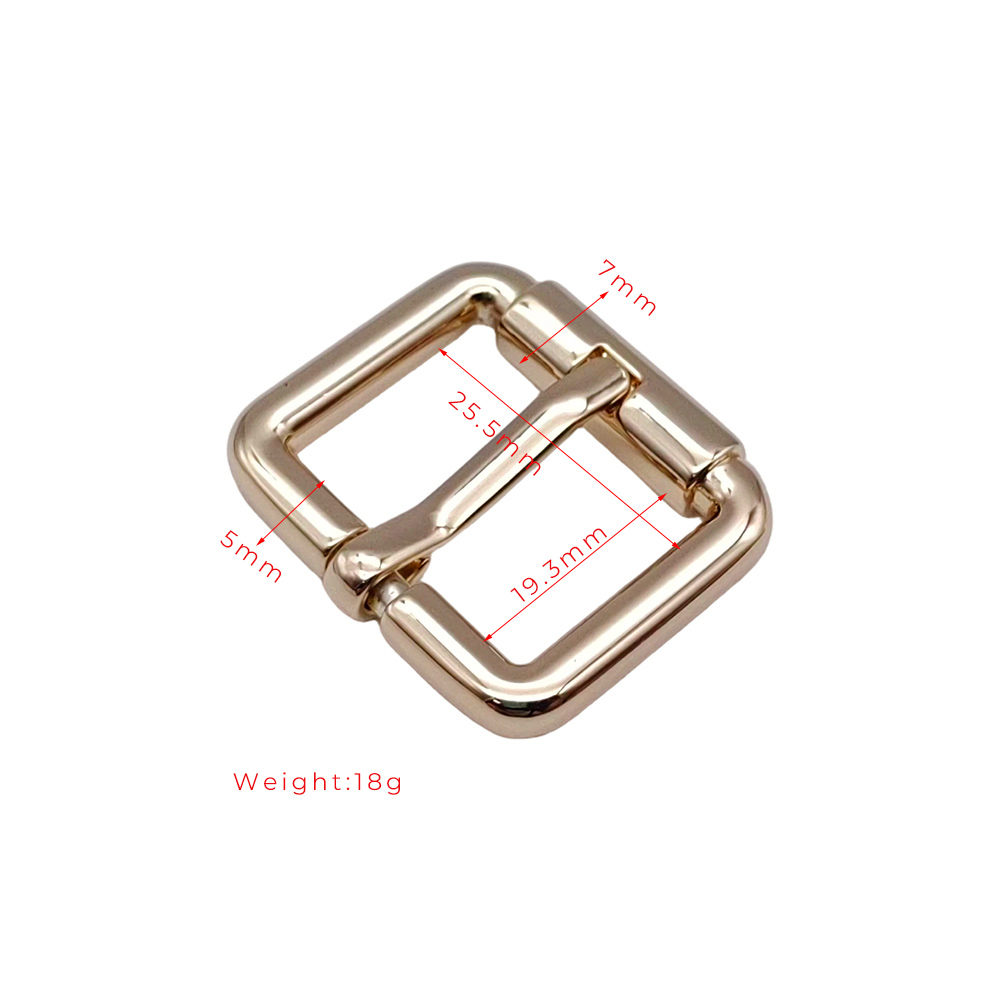

Technical Drawing Explanation – Why Each Measurement Matters

Technical drawings are the shared language between buyer and manufacturer. For this metal bag buckle the key dimensions each answer a specific practical question:

• 25.5 mm outer reference – Determines the visual scale of the hardware when it sits on the bag face or strap. A dimension that is even a few millimetres larger or smaller can change the perceived proportion of the entire design.
• 19.3 mm internal span – Defines the usable strap width. This measurement is more important than the outer size for a bag buckle strap application, because it governs whether the leather or webbing feeds smoothly and remains centred.
• Section heights of approximately 5–7 mm – Influence both the stiffness of the frame and the depth available for the pin to engage the strap securely under load.
• Total weight of 18 g – Provides a tangible quality signal. Extremely light hardware can feel insubstantial; excessive weight adds unnecessary load and can pull a soft bag out of shape.
• Corner radius – Softened corners reduce abrasion on strap edges and improve the tactile experience when the user adjusts length.
• Tongue length and pivot freedom – Control both the available adjustment range and the holding strength once the strap is tensioned.

When a buyer requests a square buckle belt or pin belt buckle solution for a specific strap thickness, these measured values become the starting point for any discussion of fit. Providing them clearly at the quotation stage reduces sampling rounds and prevents “almost right” problems later in production.

Material Selection and Surface Engineering

The base material is zinc alloy chosen for its casting behaviour and ability to hold fine detail in the frame and pin areas. After the parts leave the die-casting machine they are trimmed to remove gates and flash, then progress through a sequence of grinding and polishing operations. Each polishing stage uses progressively finer compounds so that tool marks are eliminated before any plating is applied.

Electroplating follows a controlled sequence of cleaning, activation, intermediate layers for adhesion and corrosion resistance, and the final gold-tone deposit. The exact stack is adjusted according to the target colour and the required durability. In practice this means that a bright gold finish and a slightly warmer champagne gold may share the same base casting but receive different final layers. The same approach supports nickel, gunmetal and antique finishes, allowing a single tool set to serve multiple colourways within a collection of metal buckles.

Manufacturing Process – From Raw Material to Packed Hardware

Production begins with carefully controlled melting and injection of the zinc alloy into precision moulds. Mould temperature, injection speed and holding pressure are monitored so that wall thickness remains consistent and porosity is minimised. After casting, each piece is trimmed, ground and polished. The polishing sequence is particularly important for a square metal buckle because the gold plating will magnify any remaining surface irregularities, especially on the curved outer edges and around the pin.

Once the surface is prepared, the pin is assembled. The pivot must move freely enough for comfortable adjustment yet remain captive under normal strap tension. After plating, every unit receives 100 % visual inspection for colour uniformity, surface defects and functional movement of the tongue. Accepted parts are then packed in pearl foam and individual OPP bags inside export cartons, or according to the customer’s private-label packaging specification.

Mold condition is reviewed at regular intervals. Wear on the frame corners or the pin slot can gradually alter strap clearance and plating distribution. Scheduled maintenance keeps long-term dimensional stability for repeat orders of the same bag metal buckle.

Factory Expert Tips for Specifying Metal Bag Buckles

• Always request the measured internal clearance of any metal strap adjuster and compare it directly with the finished thickness of your leather or webbing. A difference of one millimetre can change fit from ideal to marginal.
• Ask for retained plating samples from the approved batch. Colour matching on subsequent bulk runs of a gold-tone metal buckle is far more reliable when a physical reference piece is available.
• Test tongue action with the actual strap material. A pin buckle that feels smooth on thin webbing may bind or feel loose on thicker leather.
• When a collection requires multiple finishes, confirm that a single base casting can accept the full range of colours without visible differences in texture or edge definition.
• Decide the logo method—laser marking, embossing, debossing or oil-fill—during the sampling stage. Each process has different tooling implications and durability characteristics on metal buckle hardware.
• Consider the complete hardware set early. Matching a metal bag buckle with D-rings or chain connectors in the same finish reduces the risk of colour variation across the finished bag.

Common Buying Mistakes

• Selecting a metal buckle from photographs alone without verifying actual strap width and thickness compatibility.
• Treating a large decorative belt style as interchangeable with a functional bag buckle intended for soft handbags.
• Approving a hand-finished sample that does not represent the bulk plating and polishing process.
• Overlooking tongue retention strength on a square buckle design, only to discover gradual strap slippage after the bags reach customers.
• Leaving discussions of MOQ, tooling cost and realistic lead times until late in the development calendar.
• Assuming that every gold-tone finish offers identical durability and undertone across different suppliers.
• Failing to request retained samples, which makes colour matching on re-orders unnecessarily difficult.

Buyer Decision Guide – Matching the Hardware to the Project

This gold square frame metal bag buckle is well suited to fashion and contemporary handbag lines that require a clean, visible metal accent combined with dependable adjustment. It works effectively for brands that run medium-to-higher volumes and for OEM factories producing matching hardware sets across colourways. The moderate weight and controlled proportions make it appropriate for shoulder bags and crossbody styles where hardware must remain comfortable during extended wear.

It is less ideal for ultra-minimal designs that call for almost invisible components, or for heavy outdoor and travel applications where stainless steel or solid brass may be preferred for extreme corrosion resistance. When the primary requirement is a refined yet functional metal buckle bag solution for fashion use, the present specification aligns well with typical buyer expectations.

OEM Customization Path

Custom mould development allows adjustment of outer dimensions and internal strap clearance to match specific leather or webbing widths. Plating can be specified across a range of gold tones, nickel, gunmetal, antique brass and other finishes. Logo options include laser marking, embossing, debossing and oil-filled lettering. Private-label packaging, barcode labels, hang tags and retail boxes are available according to the brand’s requirements.

For collections that need coordinated hardware, the same process discipline is applied to related components so that colour, texture and edge quality remain consistent across the metal bag buckle, D-rings and any chain connectors used on the same bag.

Application Example from Development Work

A European handbag brand required a gold-tone adjuster that would sit cleanly on a 20 mm leather strap without adding bulk at the shoulder. Early samples sourced elsewhere had a slightly undersized opening that caused the leather edges to curl and created visible stress marks after only a few adjustment cycles. By refining the frame clearance and the radius on the pin we achieved smooth feeding and secure locking while preserving the intended visual weight.

The same base tool later supported nickel and gunmetal versions for subsequent seasonal collections. Because the underlying casting remained identical, the brand avoided additional tooling cost and maintained consistent proportions across the colour range. The hardware continues to be used on both shoulder bags and smaller crossbody styles within the same product family, demonstrating the versatility of a well-proportioned square metal buckle.

Care and Maintenance Recommendations

Gold-plated zinc alloy hardware benefits from simple protective habits. Keep the metal bag buckle dry when possible and avoid prolonged contact with sweat, perfume, sunscreen or acidic cleaners. After use, a soft dry cloth is usually sufficient to remove surface residues. During storage and transport, prevent the hardware from rubbing against abrasive surfaces or other metal components. These straightforward practices help maintain the original appearance of the buckle handbags hardware through the normal life cycle of the bag.

FAQ

What is the minimum order quantity for this metal bag buckle?
The standard MOQ is 1000 pcs, negotiable according to order details and the scope of any custom tooling required.

Are free samples available?
Free stock samples are available for evaluation. Custom samples require a sampling fee that is fully deductible from subsequent bulk orders. Courier charges are borne by the customer.

What are the typical lead times?
Sample time is 5–7 days for custom or moulded samples. Production time and delivery time are each typically 10–15 days after order confirmation and deposit.

Can the size or strap clearance be modified?
Yes. Custom moulds allow adjustment of both outer dimensions and internal clearance to suit specific strap widths and thicknesses.

Which surface finishes can be supplied?
The standard range includes gold (as illustrated), nickel, gunmetal, antique brass and rose gold. Additional custom tones can be developed when a reference sample is provided.

Is it possible to add a logo or brand mark?
Laser marking, embossing, debossing and oil-fill logo treatments are all available. Placement and method are confirmed during the sampling stage.

How durable is the gold plating for everyday handbag use?
The multi-stage polishing and electroplating sequence is designed for fashion hardware. Visual and functional checks are performed on every production lot; additional salt-spray or abrasion data can be supplied during the sourcing evaluation if required.

What packaging methods do you offer?
Standard packing is pearl foam + OPP bag + export carton. Fully customised packaging, including hang tags, barcode labels and retail boxes, is available on request.

Why Choose DG Buddy for Metal Bag Buckles

Nearly 20 years of continuous manufacturing experience in bag and fashion hardware means we understand both the engineering requirements of a reliable metal bag buckle and the commercial pressures faced by brand and OEM customers. Fast and transparent sampling, clear communication on tooling costs and lead times, consistent inspection from casting through final packing, and the ability to produce matching hardware sets are the practical reasons buyers continue to source metal buckles, bag strap buckle components and related accessories from us. Long-term cooperation is built on predictable quality and responsive technical support rather than on marketing claims.

Related Categories

Handbag Metal Buckle Hardware
Bag Chain Strap Hardware

Related Products

Metal D-Ring for Handbags
Swivel Snap Hook and Bag Chain Connector
Metal Logo Plate

Next Step

If you already have technical drawings or a confirmed target strap width, please share them and we will review compatibility with this metal bag buckle and recommend any necessary adjustments. If you are still comparing suppliers, we can prepare stock samples of the gold square frame version together with alternative finishes so that plating quality and hand-feel can be evaluated side by side. We are ready to discuss custom dimensions, colour matching, logo options and packaging solutions that align with your production timetable and brand standards.
