Small Swivel Snap Hook DG-SW027 for Handbag Hardware

Quick Answer

What is a small swivel snap hook? It is a compact Zinc Alloy connector with a spring gate, rotating shaft and center eye. Model DG-SW027 measures approximately 39.5 mm overall, weighs 23.7 g, and has a 12 mm upper inner opening. The lower swivel eye measures approximately 27 mm by 18.2 mm. This design is intended for handbags, bag straps, bag charms, sewn accessories and small leather goods where a strap needs to connect neatly while reducing twisting. It is a decorative and functional bag hardware component, not a certified lifting or personal-safety device. DG Buddy can review drawings, finish targets and assembly requirements for OEM development, including custom colors and custom dimensions.

Key Takeaways

• Compact Zinc Alloy body with a center eye and rotating connector.
• Rainbow electroplating creates a colorful finish across curved surfaces.
• The visible product is approximately 39.5 mm long and weighs 23.7 g.
• The swivel action helps a connected strap move with less twisting.
• Confirm opening size, spring return, tolerance and finish before bulk production.
• MOQ is 1000 pcs, negotiable according to order details.
• Free stock samples are available; custom sample fees are deductible from bulk orders.

How the Center Eye and Spring Gate Work Together

A gate snap hook is normally selected when the user needs quick attachment without permanently opening a ring or sewing loop. On this model, the spring gate closes the front opening while the lower center eye connects to a strap, cord, ring or sewn component. The eye rotates with the hook assembly, so the attached part can change orientation during use instead of forcing the strap to twist at one fixed point.

When buyers compare a clasp snap hook with a snap hook clasp, the practical difference is often the search wording rather than the hardware itself. For procurement, the important checks are gate alignment, spring return, shaft play and the usable opening. A sample should be opened repeatedly by hand and checked for a clean return to the closed position. The hook should feel controlled rather than loose, gritty or difficult to operate.

Size Selection for Sewing and Bag Development

The phrase swivel hook sewing is relevant when the hook will be connected to a sewn strap, folded webbing, leather tab or fabric loop. The lower opening is approximately 27 mm by 18.2 mm, but the usable sewing space depends on material thickness, folded edges, reinforcement and stitching clearance. The 12 mm upper opening should be checked against the ring, cord or strap that will pass through it. A paper drawing is useful, but a physical sample gives a more reliable view of access, movement and visual proportion.

This compact size is a practical starting point for a small swivel snap hook and a small swivel eye snap hook used on handbags, key straps, bag charms and fashion accessories. It may not be appropriate for applications that require a tested working load. Buyers should provide the strap width, material thickness, expected handling force and target safety requirement before requesting a custom size.

Quick Knowledge: Choosing the Right Hook Type

What is the difference between a fixed and rotating eye?

A fixed eye keeps the connected strap in one orientation. A rotating eye allows movement around the swivel shaft, which can improve comfort and reduce twisting in a moving bag or accessory. The rotating option usually adds parts and assembly steps, so the buyer should evaluate movement, noise and durability rather than selecting it only for appearance.

What are common snap hook types?

Common snap hook types include fixed-eye snap hooks, swivel-eye snap hooks, center-eye hooks, trigger-style hooks and dog hooks with locking sleeves. The right choice depends on access, rotation, opening size, load requirement, finish and assembly method. A small decorative hook should not be described as a lifting component unless its performance has been tested for that purpose.

Why does the center eye matter?

The center eye determines how a strap, ring or cord sits under the hook. It also affects sewing clearance and the visual balance of a handbag attachment. If the eye is too small, assembly becomes slow; if it is too large, the hardware can look loose or rotate excessively on a narrow strap.

Zinc Alloy, Finish and Surface Engineering

Zinc Alloy is commonly selected for fashion hardware because Die Casting can create rounded bodies, recessed details and integrated connector geometry. After casting, trimming removes excess material. Grinding and Polishing refine parting lines and curved surfaces before assembly and Electroplating. The supplied sample shows a rainbow finish, where color consistency depends on surface preparation, rack position, bath control and handling between processes.

Compared with Brass, Zinc Alloy can offer more flexible cast shapes and a lighter design route for many handbag components. Stainless Steel may be preferred where corrosion resistance or a specific mechanical requirement is central, but the material choice should follow the application, finish target and cost structure. DG Buddy can review a target color, reference sample or Pantone direction, but final color matching should be approved from a physical sample because curved plating reflects light differently from flat panels.

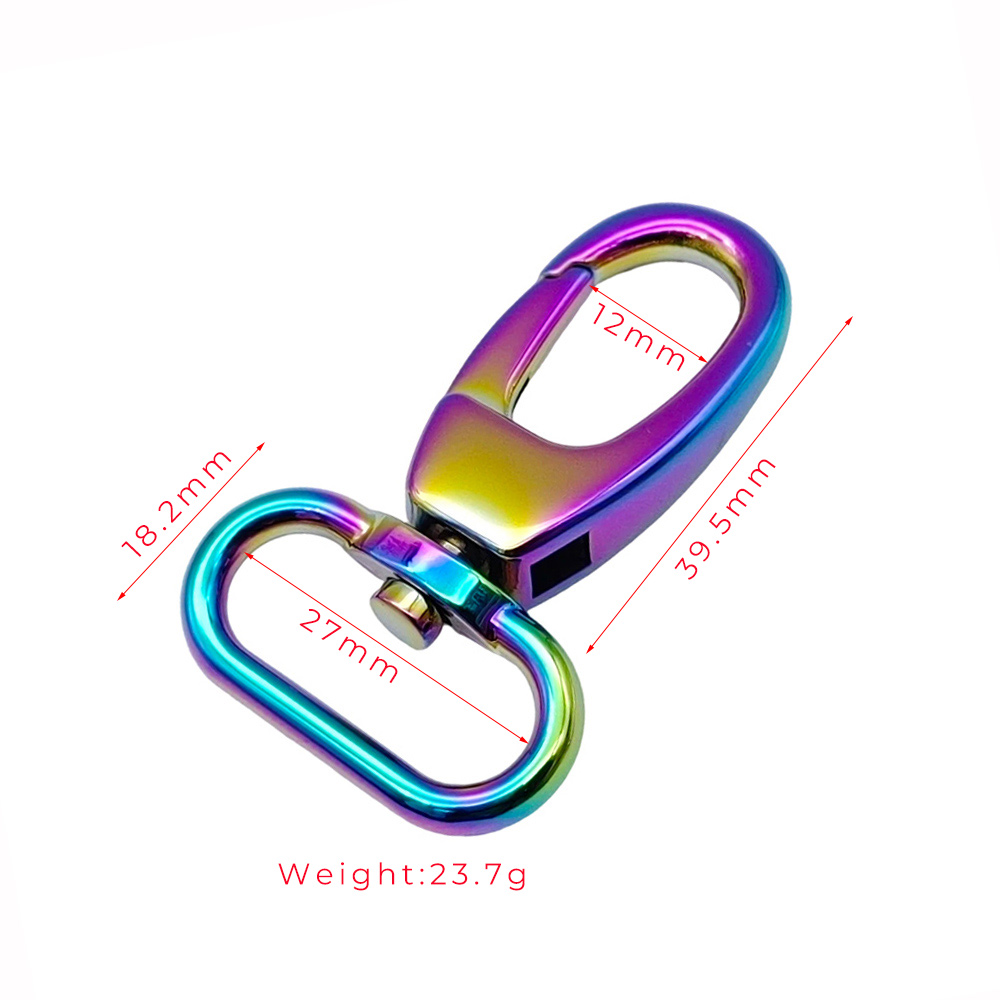

Technical Drawing Explanation

The supplied drawing provides several dimensions that are useful during product development. Each number answers a different assembly question:

• Overall Length, 39.5 mm: controls the visible scale of the hardware on the finished bag.
• Upper Inner Opening, 12 mm: indicates the approximate clearance for a ring, cord or connector.
• Lower Eye Length, 27 mm: helps confirm the available connection area for a strap or leather tab.
• Lower Eye Width, 18.2 mm: affects side clearance and the visual proportion of the attachment.
• Weight, 23.7 g: helps product teams estimate the hand feel and total accessory weight.
• Wire Diameter: is not stated in the supplied image and should be confirmed because it affects strength, appearance and gate fit.
• Thickness: is not separately marked and should be checked where the hook meets a narrow strap or ring.
• Swivel Shaft Position: should be verified against the center line to prevent uneven movement or a visibly tilted hook.

Factory Manufacturing Route and QC Inspection

In our factory, the production route is arranged around the risks that buyers see in the finished part. Raw Material is checked before Die Casting so the body fills consistently. Trimming removes flash around the gate and eye. Grinding and multiple Polishing stages reduce visible lines on curved areas; this matters because plating will not hide a rough casting. The parts are assembled only after the body and moving components meet the agreed dimensional requirements.

Electroplating follows cleaning and surface preparation. Rainbow finishes require controlled process conditions because small differences in polishing or rack contact can change the final color. Salt Spray Testing may be arranged when the buyer has a defined requirement. Final QC Inspection checks dimensions, gate return, swivel movement, color consistency, scratches, burrs and packing condition. A 100% visual inspection is particularly useful for colorful decorative hardware because a small surface mark can be visible on a premium accessory.

Factory Expert Tips for Reducing Returns

• Approve the physical sample before approving color across a large production lot.
• Test the hook with the actual strap thickness, not with an unloaded sample ring.
• Ask for a dimensional drawing that identifies the usable opening, not only the outside size.
• Protect plated parts with Pearl Foam during packing to reduce contact scratches.
• Define acceptable color variation with reference samples before production starts.
• Inspect spring return and swivel movement after plating, because finishing can affect fit.

Common Buying Mistakes

• Choosing hardware by color alone without checking opening and strap compatibility.
• Assuming a decorative snap hook has a tested lifting or safety load.
• Comparing suppliers only by unit price while ignoring mold, plating and inspection costs.
• Using a generic drawing that does not show the center eye, thickness or tolerance.
• Skipping a physical sample when the finish has strong color or reflective effects.
• Failing to specify packaging, which can cause scratches during export transportation.
• Changing the strap material after approval without rechecking the gate and eye.

Buyer Decision Guide for OEM and Private Label Orders

For a first quotation, send the target quantity, strap width, strap material, required finish, logo request, packaging preference and delivery destination. If the hook will be sewn, include the folded strap thickness and stitch layout. If the design is not final, DG Buddy can compare the standard 39.5 mm option with a custom dimension and explain whether a Custom Mold is justified.

A suitable supplier should explain its Die Casting capability, polishing route, Electroplating controls, assembly inspection and packaging method. Ask how samples are approved, how color references are retained and how nonconforming pieces are separated. For Private Label work, confirm whether carton marks, OPP bag labels and customized packaging can be managed within the production schedule.

• Material: Zinc Alloy is shown; confirm alternatives only when the design requires them.
• Lead Time: sample time is 5–7 Days; production and delivery are 10–15 Days.
• MOQ: 1000 pcs, negotiable based on order details.
• OEM: finish, dimension, packaging and mold discussions are supported.
• Packaging: Pearl Foam + OPP Bag + Export Carton or Customized Packaging.
• Surface Finish: rainbow plating is shown; approve a physical color sample.
• Logo: confirm whether marking is needed and where it can be placed.
• Quality Inspection: define gate, swivel, dimension and cosmetic criteria.
• Factory Capability: review casting, finishing, assembly and export packing together.

Buyer Story: From Sample Review to Bulk Approval

A handbag development team usually begins with a visual reference and a strap sample. During prototype development, the useful question is not simply whether the hook looks attractive. The team checks if the 12 mm opening accepts the selected ring, whether the lower eye gives enough sewing clearance, and whether the rainbow finish remains consistent beside the bag material. After a sample adjustment, the purchasing manager can approve the drawing, finish reference, inspection points and packaging together. This sequence reduces late changes because design, engineering and procurement are working from the same physical evidence.

Applications and Product Fit

This component is suitable for handbag straps, small leather goods, bag charms, key straps, fashion accessories and selected sewn accessory projects. It can also work as a decorative connector where rotation improves the user experience. It should not be specified for towing, lifting, fall protection or other safety-critical applications without separate engineering validation and a tested rating.

For a coordinated product range, buyers may combine this hook with a bag chain connector, metal D ring or handbag hardware. Product teams can also review the OEM bag hardware collection and request the hardware catalog during sourcing evaluation.

FAQ for Purchasing Teams

Is this hook suitable for a handbag?

Yes. The dimensions, center eye and decorative finish make it suitable for many handbag, bag charm and small leather goods designs. Confirm the strap and ring dimensions with a physical sample.

Can the finish be changed?

OEM finish discussions are available. Common options may include different bright, dark, antique or colored directions, but availability and color consistency must be confirmed from samples.

Does the product include a key ring?

No key ring is shown in the supplied image. The quoted configuration should be confirmed if additional rings, straps or accessories are required.

Can the center eye be customized?

It can be reviewed as an OEM requirement. Custom dimensions may affect tooling, casting fill, spring clearance and assembly, so a drawing is recommended before quotation.

What is the MOQ?

The standard MOQ is 1000 pcs, negotiable based on order details.

Are samples available?

Free stock samples available. Custom sample fees are fully deductible from bulk orders. Courier charges are borne by the customer.

What is the production schedule?

Sample Time is 5–7 Days for a custom or development sample. Production Time is 10–15 Days, and Delivery Time is 10–15 Days. The final schedule depends on specification and order details.

How should plating quality be checked?

Check color consistency, recessed areas, gate clearance, scratches, burrs and movement after finishing. If required, define a Salt Spray Testing method and acceptance level before production.

Does DG Buddy provide quality documents?

We maintain quality certification documentation and are happy to provide the current valid certificates upon request during your sourcing evaluation.

Related Products

• Metal D Ring for strap and ring connection.
• Bag Chain Connector for coordinated handbag assemblies.
• Metal Logo Plate for branded accessory development.

Request a Sample or OEM Quotation

If you already have a technical drawing, strap sample or finish reference, send it with the target quantity and application. If you are still evaluating suppliers, ask DG Buddy to review the dimensions, spring gate, swivel shaft, surface finish, packaging and inspection points together. Free stock samples available; custom sample fees fully deductible from bulk orders. Nearly 20 years of manufacturing experience, free stock samples available, OEM customization supported.

Request a quotation from DG Buddy or share your specification for a practical sample and production review.
