Swivel Eye Snap Hook, Gunmetal Zinc Alloy Oval Ring | DG-SH038

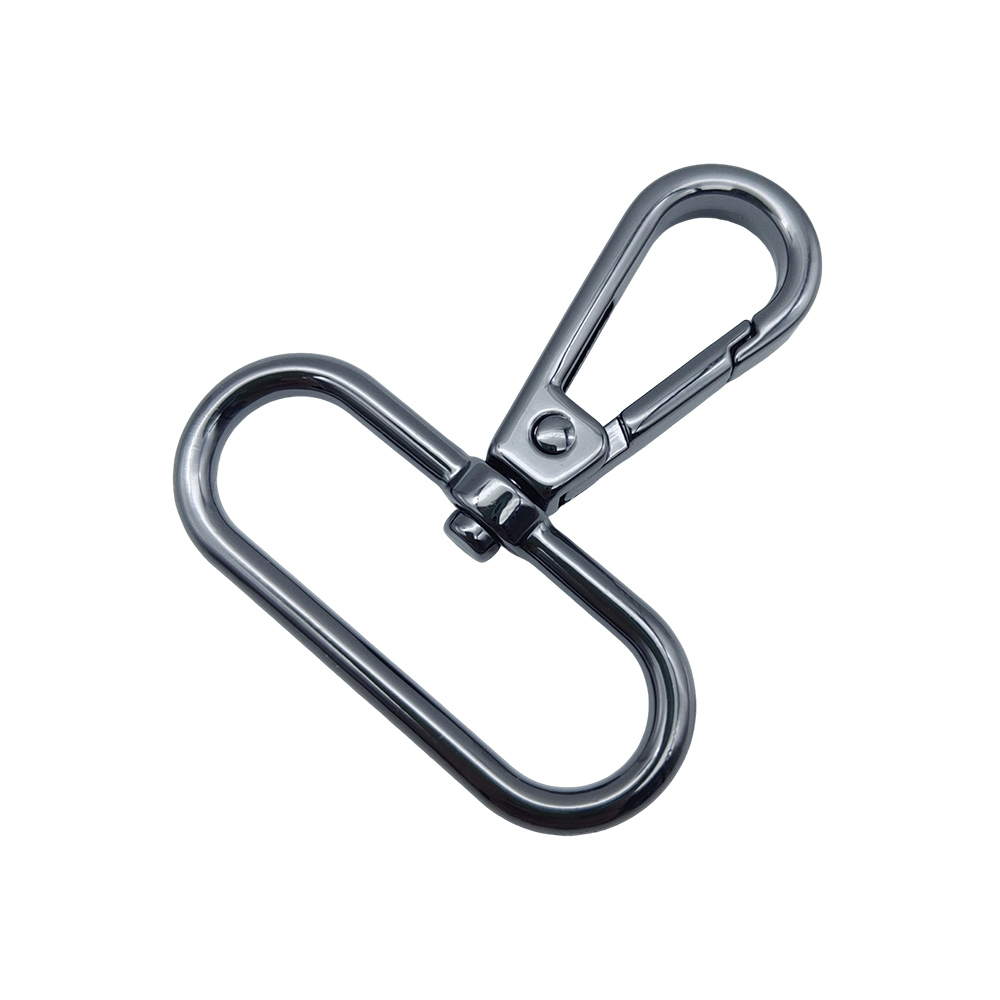

Quick Answer: A swivel eye snap hook is a compact bag and strap connector that combines a spring-gate hook with a rotating 38 mm oval eye. DG-SH038 uses a gunmetal zinc alloy body, a 10 mm hook opening, approximately 3.2 mm material thickness, 50.7 mm overall height, and a 12.3 g unit weight. The rotating shaft helps webbing and leather straps remain aligned instead of twisting during use.

Key Takeaways for Buyers

• The 38 mm oval eye is designed for webbing, leather straps, cord ends, and compatible bag hardware.
• The spring gate gives the hook a practical one-hand connection point for handbags, shoulder straps, pet leads, and small utility products.
• The rotating joint separates strap movement from the hook body, which is useful when a bag or lead changes direction frequently.
• Gunmetal zinc alloy provides a dark metal appearance suited to contemporary, outdoor, and fashion accessory designs.
• OEM finish matching, packaging, samples, and private-label development can be discussed before bulk production.

What This Hardware Is and How It Works

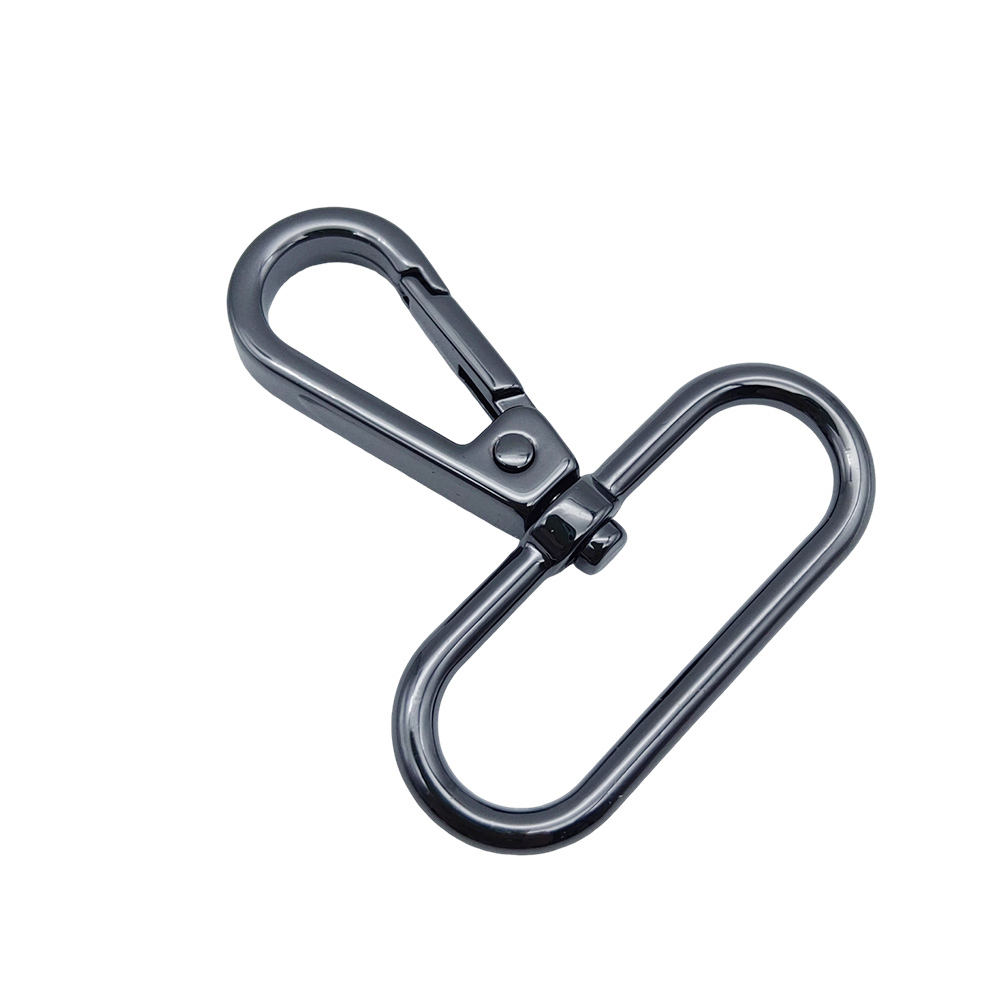

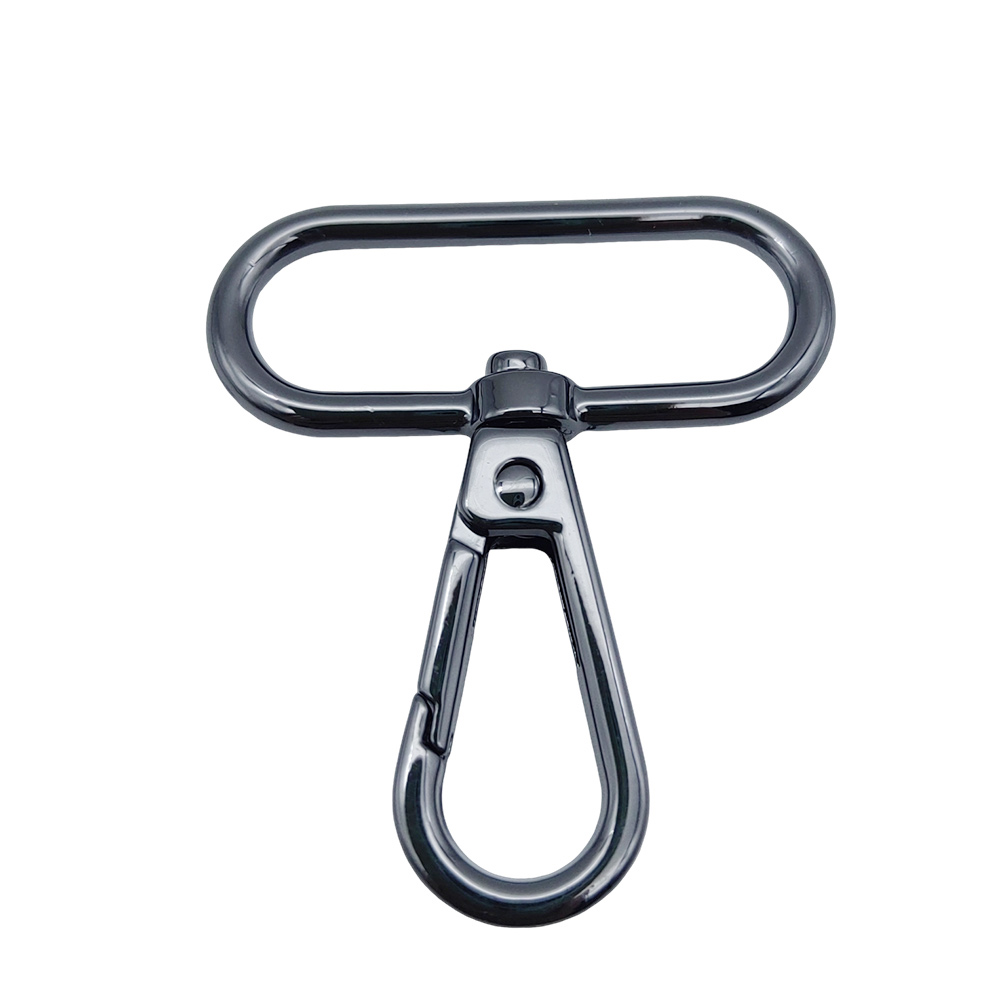

Buyers may see this component described as a swivel lobster clasp, a swivel clasp, or one of several spring snap hooks. The names refer to overlapping functions, but the structure matters more than the label. DG-SH038 has a spring-gate hook at the top and a horizontal oval ring at the bottom. The hook closes against its nose under spring pressure, while the lower ring is connected through a swivel shaft. This arrangement allows a strap end to rotate relative to the hook.

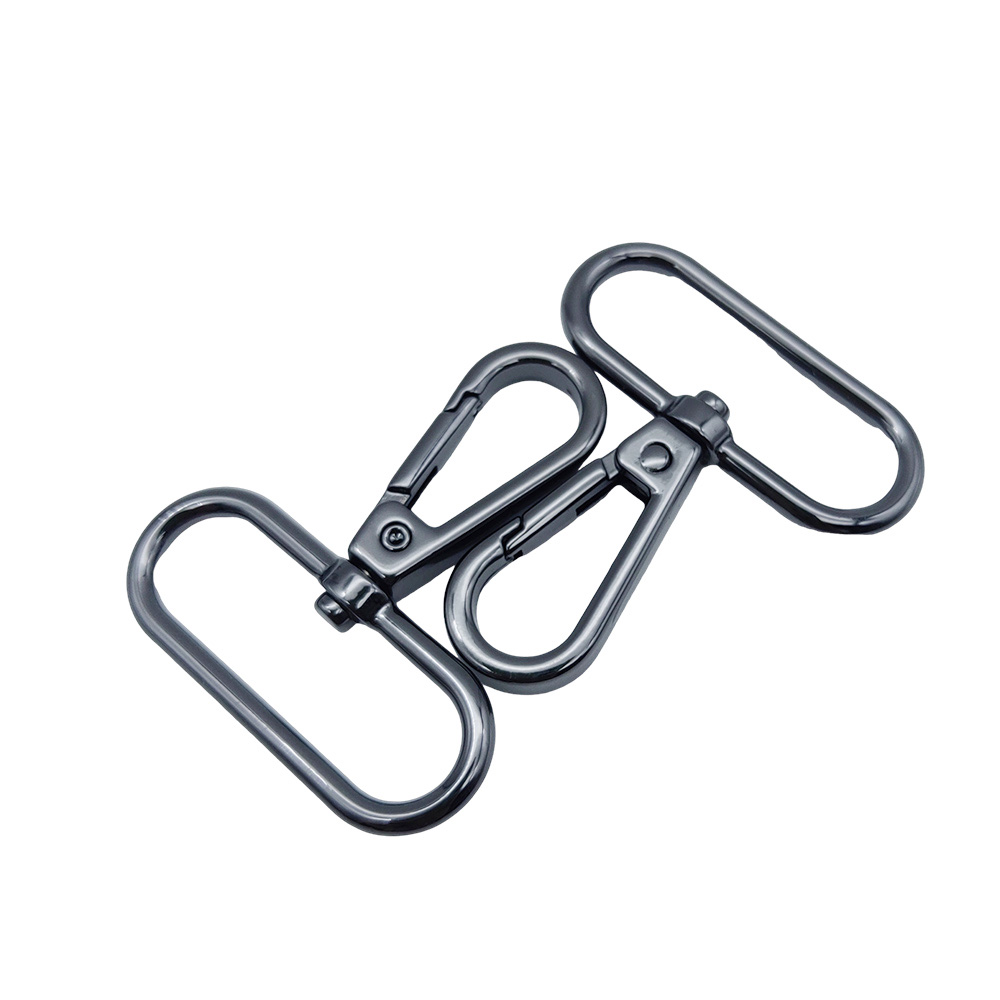

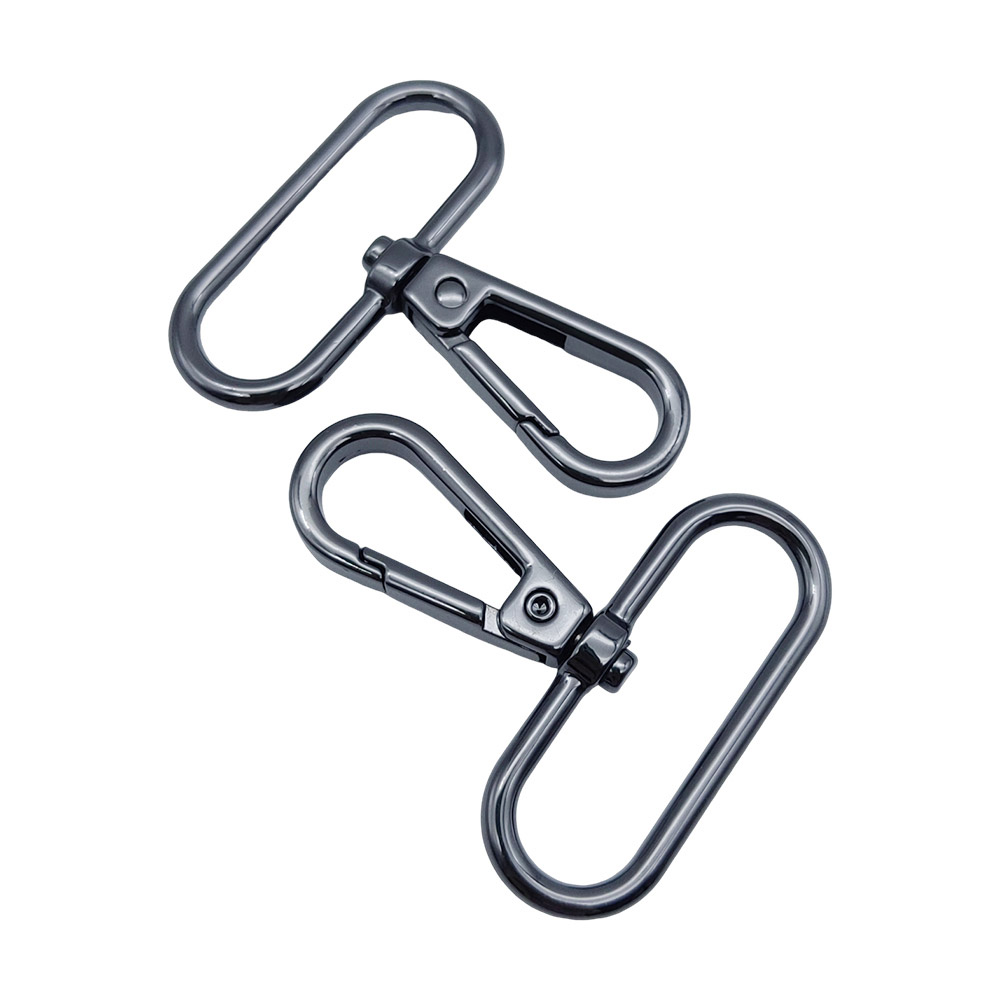

For a bag developer, that movement is the practical difference between a fixed snap and a rotating connector. A fixed connector can force the strap to fold or twist when the bag turns. A swivel clasp gives the strap more freedom to settle naturally. This is why swivel snaps for purses and swivel snap hooks for straps are common search terms among handbag and strap-hardware buyers.

Dimensional Reference for DG-SH038

Engineering Analysis: Hook, Gate, Eye, and Swivel Shaft

The working elements should be evaluated separately. The spring gate controls the opening and closing action. Its return should be positive without scraping the hook nose. The hook opening must be checked against the mating ring or loop; a larger opening is not automatically better if it weakens the nose profile or changes the appearance. The 38 mm oval eye is the load-transfer area for the strap and should be reviewed together with the actual webbing width and folded thickness.

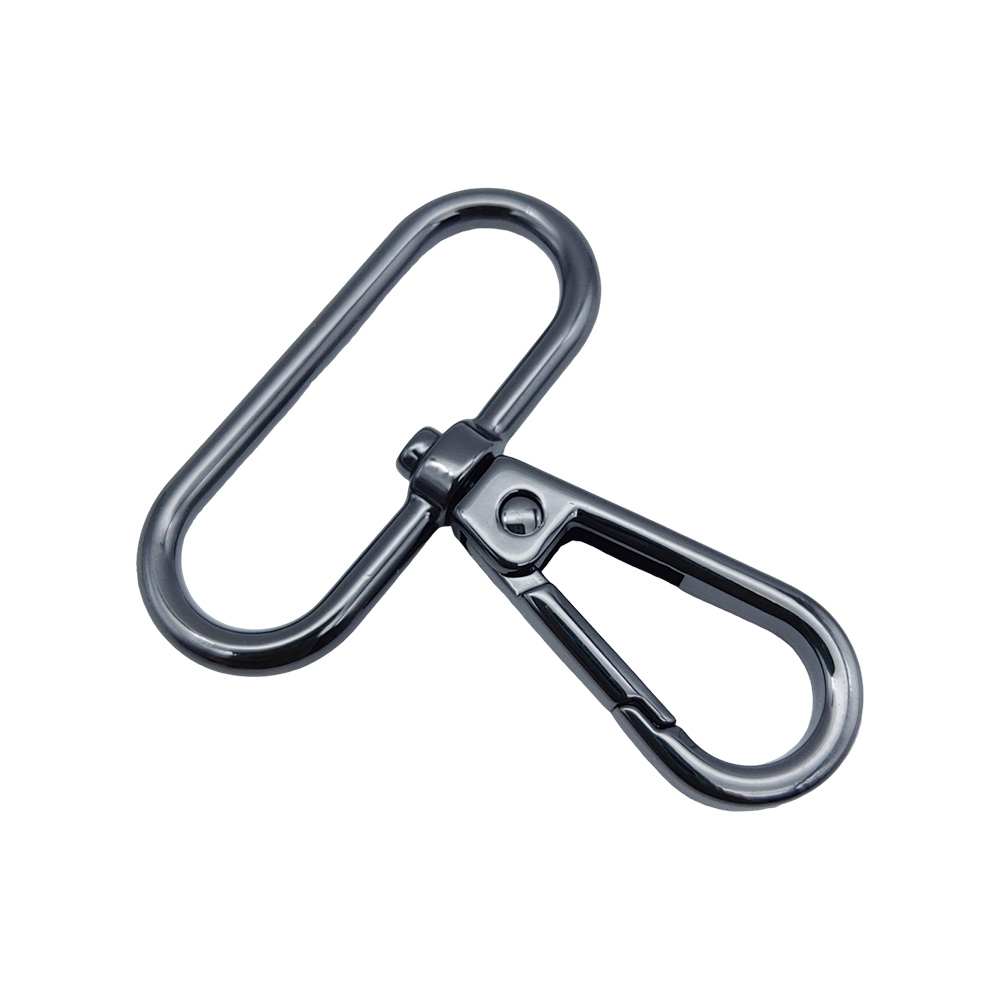

The swivel shaft is the movement-control element. During prototype development, buyers should rotate the eye through its usable range and check for binding, excessive side play, or contact marks. On a metal swivel hook, the shaft, eye alignment, and hook body need to sit on the same centerline so the hardware does not pull the strap sideways. A snap hook swivel clasp with smooth rotation is especially useful on shoulder bags, removable handles, camera straps, and pet leads.

The image reference shows a compact, rounded hook profile rather than a heavy climbing connector. It should therefore be specified as bag and accessory hardware unless a separate load test, application test, and safety review support another use. The supplier quotation should state the intended application instead of assuming that all types of snap hooks have the same working load.

Material and Surface Selection

Zinc alloy is commonly selected for this geometry because die casting can form the hook body, eye transition, rounded edges, and recessed details in one repeatable part. The normal production route includes die casting, trimming, deburring, polishing, cleaning, electroplating, assembly, and QC inspection. The surface sequence matters: multiple polishing stages help reduce visible casting marks before plating, particularly around the curved eye and the hook shoulder.

When buyers compare metal swivel lobster clasps, ask whether the finish is electroplated gunmetal, painted, or another surface system. A gunmetal lobster clasp should be evaluated for color consistency on the front, side, underside, and recessed areas. For a new color, the factory can review a physical color reference or approved sample. Brass and stainless steel may be considered for other product requirements, but the material change affects tooling, weight, cost, and finish behavior; it should not be treated as a simple color substitution.

Where to Use It

• Handbags and purses: Use the eye with a strap or tab and the hook with a D ring, loop, or bag body ring. A purse lobster clasp is selected when a removable strap needs a visible, easy-to-operate connection.
• Leather goods: The rounded profile can complement leather shoulder straps, wristlets, bag charms, and small cases when the eye size matches the folded leather thickness.

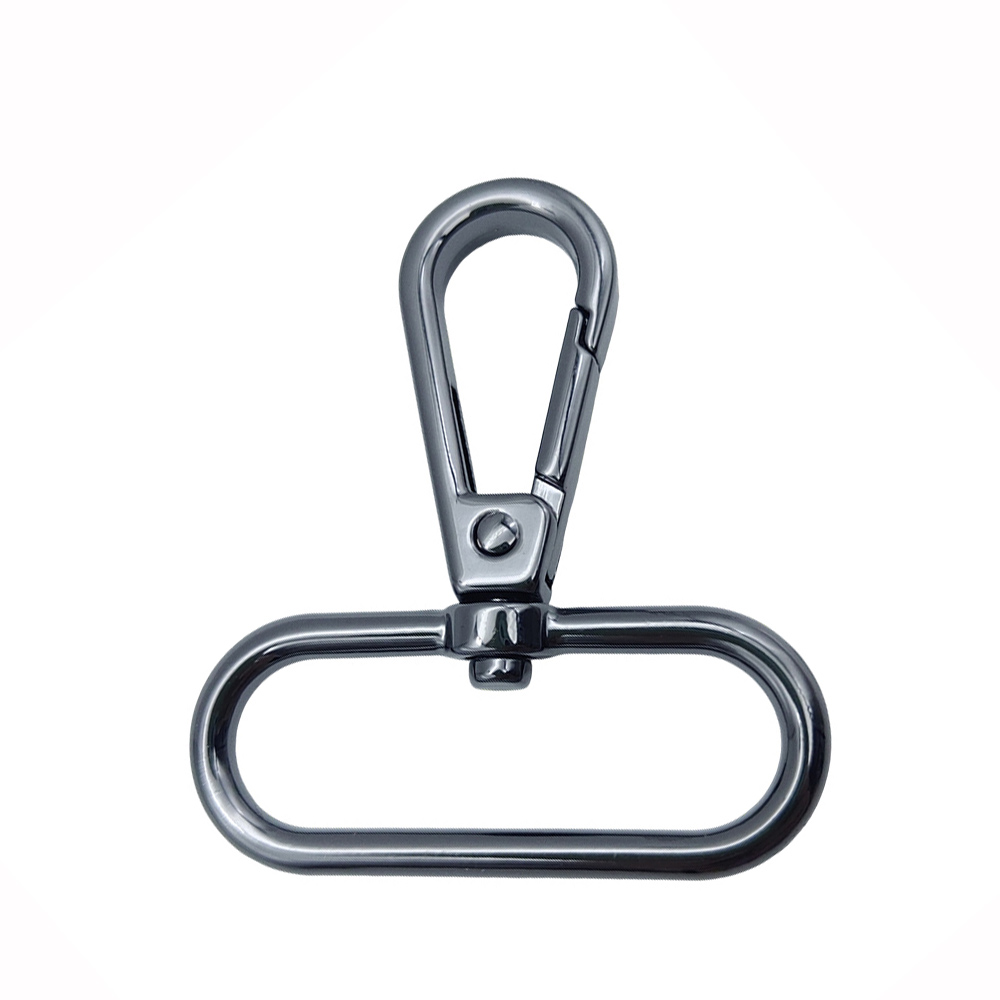

• Webbing products: A webbing snap hook is suitable when the strap is sewn, folded, or threaded through the oval eye. Confirm finished webbing width, not only nominal width.
• Pet accessories: A dog leash swivel snap hook can be considered for pet leads after the buyer confirms the required load, safety margin, and application test. This product page does not replace a safety certification or load-rating document.
• Small utility and lifestyle products: The hook can connect detachable pouches, luggage accessories, bag straps, and light-duty equipment where the dimensions and intended load are suitable.

Choosing Among Common Snap-Hook Terms

Search terminology can be confusing. Snap clip hooks usually describes a clip-style connector with a spring closure. A spring gate snap hook emphasizes the gate mechanism. A swivel spring hook highlights the rotating connection. A metal swivel hook is a broad material-and-function phrase, while a swivel spring snap hook describes both the spring closure and the swivel action. These terms are useful for discovery, but a purchase decision should be based on drawing dimensions, mating hardware, finish, spring action, rotation, and application testing. Buyers comparing wholesale swivel snap hooks should request the same dimensional and finish information from each supplier.

For bag hardware, a bag snap hook may be acceptable when the buyer needs a general attachment component. For a bag with a detachable strap, the more specific question is whether the hook opening and oval eye match the D ring, strap width, folded edge, and sewing construction. Buyers comparing lobster clasps for handbags should also check whether the clasp profile suits the bag scale and whether the eye can be sewn or threaded securely. For a custom program, provide the drawing, target finish, logo requirement, packaging requirement, and expected order quantity so the engineering team can confirm feasibility.

Buyer Guide: Checks Before Ordering

1. Confirm the mating part. Measure the bar diameter or ring wire diameter that will enter the 10 mm opening. Check clearance after plating, not only from a 2D drawing.
2. Confirm strap construction. Send the actual webbing or leather sample when possible. A 38 mm eye may fit a nominal strap width but not a thick folded tab.
3. Check movement. Rotate the eye and operate the gate repeatedly. Look for a consistent return, clean contact, and no sharp edge that can cut fabric or leather.
4. Review the finish standard. Define the gunmetal color, gloss level, visible-face standard, and acceptable variation. Request a production-like sample for approval.
5. Define the application. Handbag hardware, a pet lead, and a utility strap have different test requirements. Do not use a generic supplier description as a load rating.
6. Review packaging and inspection. Agree on Pearl Foam + OPP Bag + Export Carton, carton quantity, scratch protection, and the QC inspection points before production.

Common Buying Mistakes

One common mistake is ordering by the phrase swivel snaps wholesale without confirming the exact eye size. Another is comparing the visible outer length while ignoring the usable opening and strap passage. Buyers also sometimes approve a plating color from a single front-view photo; curved and recessed surfaces can look different after production. A third mistake is treating a pet-use request as equivalent to a handbag request. If the component will be used on an animal lead, tell the factory at the quotation stage so the sample and test discussion can match the real risk.

OEM Development and Factory Process

DG Buddy has nearly 20 years of manufacturing experience in metal bag hardware and related accessories. For an OEM program, the normal sequence is drawing or reference sample review, material and structure confirmation, mold assessment, prototype sampling, finish approval, pre-production confirmation, die casting, polishing, electroplating, assembly, and final QC inspection. If a logo, revised eye shape, special gate, or new finish is required, the engineering team can assess whether the change needs a custom mold or a process adjustment.

Free stock samples available; custom sample fees fully deductible from bulk orders. Custom samples require a sampling fee, and courier charges are borne by the customer. The standard MOQ for individual hardware is 1000 pcs (negotiable based on order details). Sample time for a custom or molded sample is 5–7 Days; stock samples are usually faster after availability is confirmed. Production Time is 10–15 Days and Delivery Time is 10–15 Days, subject to order details and destination.

Quality and Inspection Points

• Check casting completeness around the hook nose, spring-gate seat, eye transition, and swivel housing.
• Check burr removal and edge comfort where the component contacts leather, webbing, or a user’s hand.
• Check gate return, closure alignment, and repeated opening action on approved samples.
• Check swivel movement, shaft assembly, side play, and visual alignment.
• Check gunmetal plating coverage and color consistency across exposed and recessed surfaces.
• Check dimensions, weight, packaging protection, and quantity against the approved specification.

FAQ

What is the difference between a fixed snap and a swivel eye snap hook?

A fixed snap keeps the attachment orientation more constant, while a swivel eye snap hook allows the lower eye and strap to rotate around the shaft. The rotating design can reduce strap twisting when the connected product changes direction.

Can this be used as a lobster clasp for bags?

Yes, the structure is suitable for bag and strap applications when the mating ring, strap width, finish, and intended load are compatible. A sample fit check is recommended before bulk approval.

Is the gunmetal finish customizable?

OEM finishes can be reviewed against a physical reference or approved sample. Color, gloss, plating route, and surface expectations should be confirmed before production.

What information should be included in a quotation request?

Send the model, quantity, application, mating ring, strap or leather dimensions, finish reference, packaging needs, logo requirements, destination, and whether stock or custom sampling is required.

Can I request a sample before placing an order?

Yes. Free stock samples available. Custom sample fees are fully deductible from bulk orders. Custom sample fees require approval, and courier charges are borne by the customer.

Related Hardware and Sourcing Support

For a complete bag program, buyers may also compare compatible D rings, strap buckles, bag chain connectors, and leather strap hardware. These components should be reviewed as a set because ring wire diameter, strap thickness, plating tone, and opening clearance affect the finished assembly. DG Buddy can review drawings, reference samples, finish targets, and packaging requirements during supplier evaluation.

Request a Quote

If you are sourcing a standard 38 mm oval-eye hook, send your target quantity and finish for a quotation. If you are developing a new handbag, pet accessory, or strap system, send the drawing or physical sample together with the mating hardware. We can review the 10 mm opening, 3.2 mm reference thickness, swivel movement, spring action, and OEM changes before confirming the sampling route.

For buyers comparing swivel snaps wholesale options, the most useful next step is a production-like sample rather than a catalog photo. Contact DG Buddy to confirm availability, sample terms, customization, inspection points, and the best production plan for your application.
