DG-TD020-Triangle D-Ring Buckle – Zinc Alloy Slide Ring for Pet Harness Hardware

Quick Answer

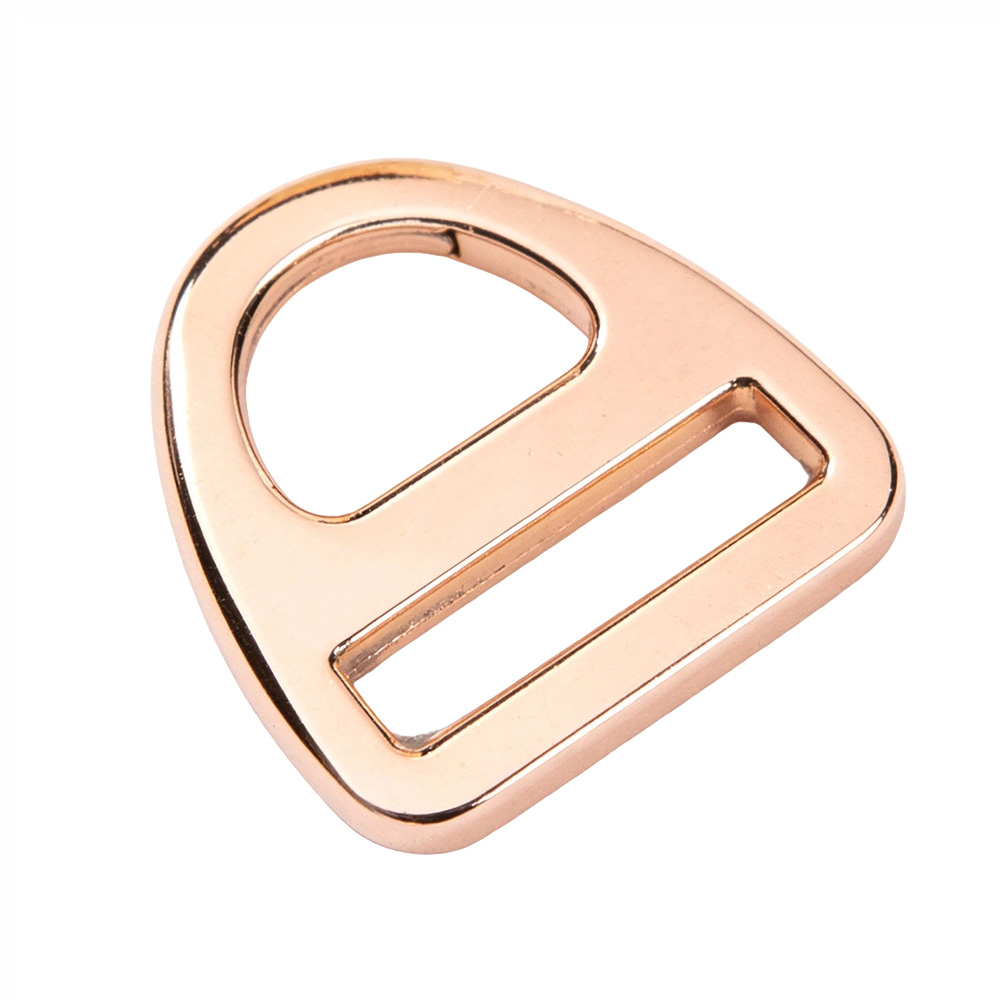

A triangle D-ring buckle is a die-cast zinc alloy hardware piece shaped like a rounded triangle, with a slotted lower bar for threading webbing and an open upper loop for attaching a leash clip or swivel hook. Unlike a standard D-ring, the triangle D-ring buckle combines a webbing slide and an attachment ring into a single casting, which is why it has become common on dog harnesses, collars, and adjustable straps. At DG Buddy, this part is produced in zinc alloy through die casting, then polished and electroplated to the finish a customer specifies.

Key Takeaways

• Triangle D-ring buckles combine a webbing slide and a D-ring in one casting, replacing two separate parts.
• Inner diameter and slot width must match the webbing width, not just look similar in a photo.
• Zinc alloy is the standard material for this shape because it holds fine detail during die casting.
• Wall thickness, not just overall size, determines how much pulling load the piece can handle.
• Edge finishing inside the slot affects whether webbing frays over months of use.
• Free stock samples are available; custom sizes require a sampling fee that is deducted from bulk orders.
• Standard MOQ for this hardware is 1000 pcs, negotiable depending on order details.

Triangle D-Ring vs Standard D-Ring: What Buyers Often Get Confused About

What is a triangle D-ring buckle

A triangle D-ring buckle is technically a hybrid part. The lower bar functions the same way a tri-glide or slide buckle does — webbing feeds through it and can be adjusted or fixed in place with stitching. The upper loop functions the same way a D-ring does — it gives a leash clip, swivel hook, or lanyard something round to hook onto. One thing buyers often ask us is why not just use a separate slide and a separate D-ring. The answer is usually cost and assembly time: one casting instead of two parts and one extra sewing step.

Why the shape matters more than it looks

The rounded top and flatter bottom aren’t just stylistic. The rounded top keeps a hook or clip from binding at a sharp corner, which matters when a dog pulls suddenly on a leash. The flatter bottom bar gives webbing a wider contact surface than a round wire D-ring would, which spreads out stress instead of concentrating it on one point of the strap.

Triangle D-ring vs tri-glide slide

A tri-glide only adjusts webbing length and has no separate attachment point. A triangle D-ring buckle does both jobs, which is the main reason it shows up so often on harness backs and collar rings instead of a plain tri-glide.

Zinc Alloy vs Other Materials for This Hardware

For most dog harness and collar programs, zinc alloy is the right call — it takes plating well and keeps unit cost down at volume. If a customer is developing a line for large working breeds with constant hard pulling, we usually recommend discussing a thicker wall profile or a stainless steel version instead of just assuming zinc alloy will handle it.

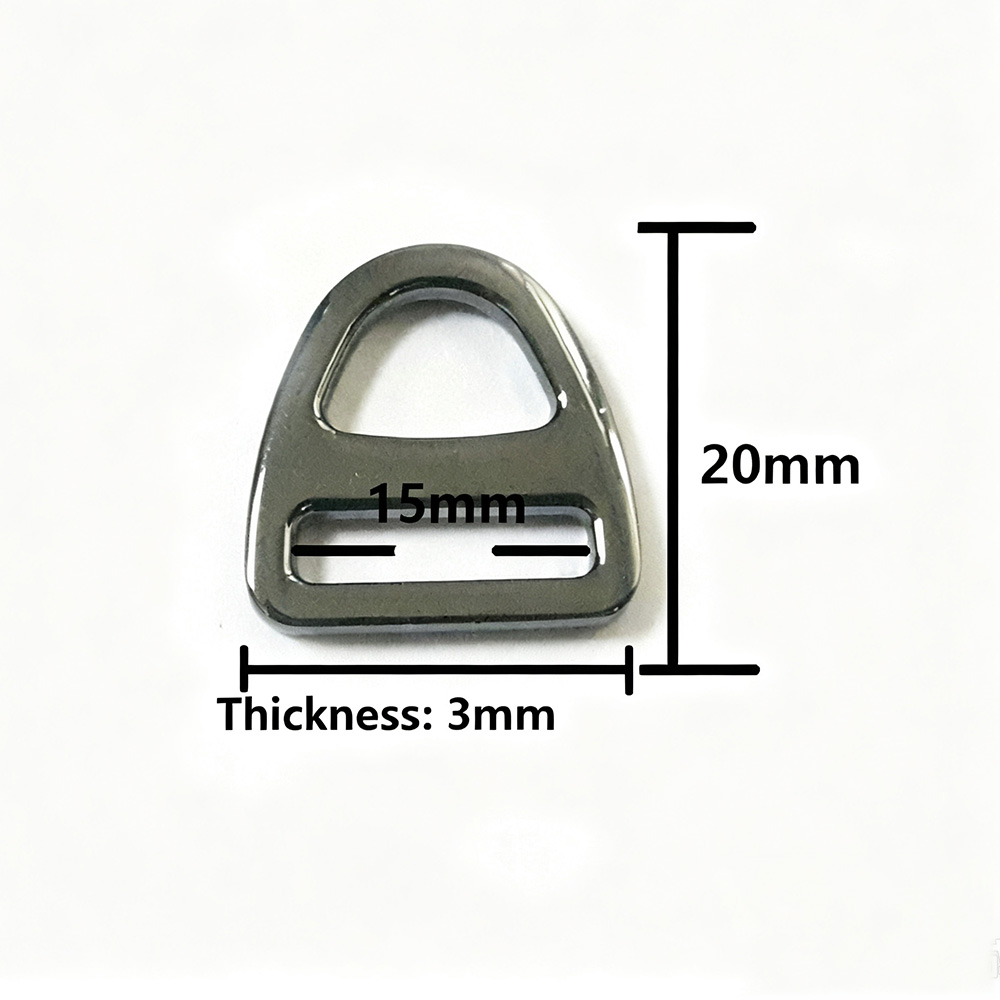

Reading the Technical Drawing: Why Each Dimension Matters

• Overall Height (20mm on this model): Sets how much clearance the leash clip has to move without binding.
• Slot Width (15mm): Must be equal to or slightly greater than the finished webbing width, or the strap won’t feed through during sewing.
• Thickness (3mm): The single biggest factor in breaking load; a small increase here has a bigger effect than increasing overall size.

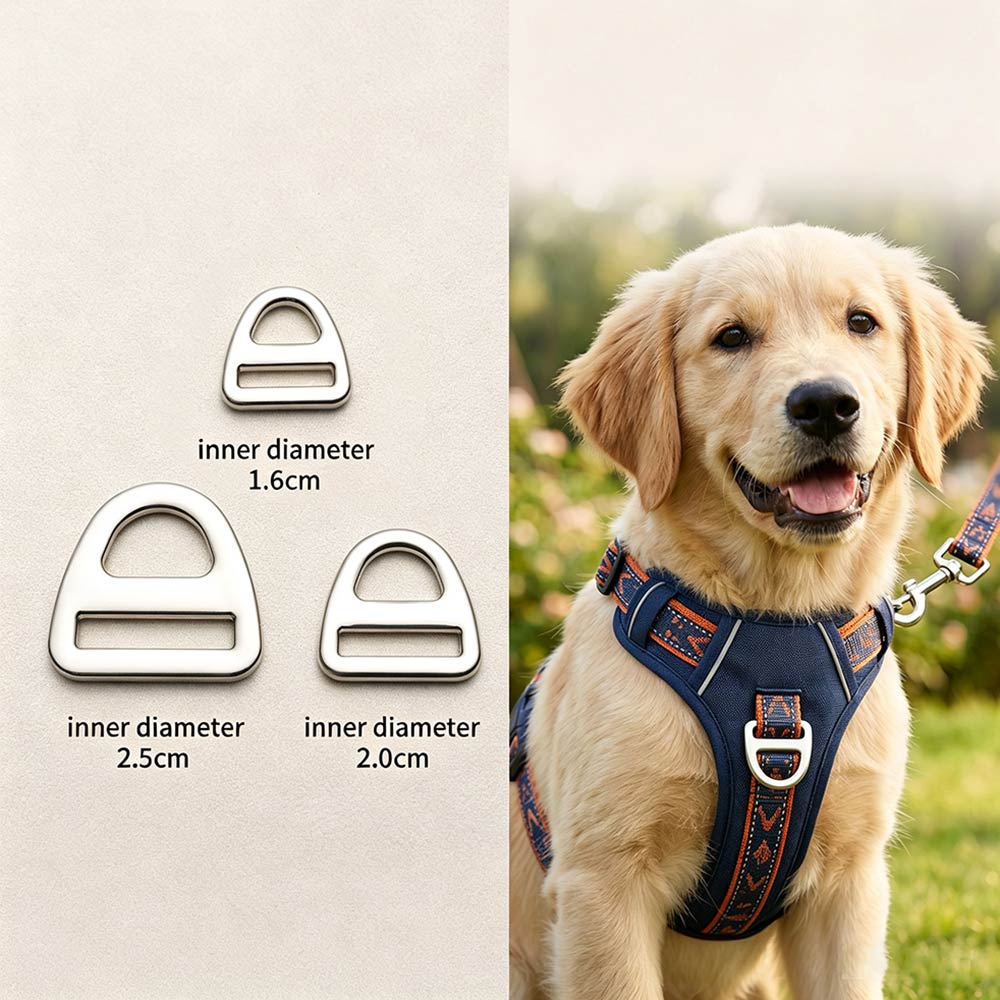

• Inner Diameter (16mm / 20mm / 25mm range): Determines how many strap layers or how large a swivel hook eye can sit inside the loop.
• Bottom Bar Length: Affects how the webbing folds around it and how much surface area distributes pulling force.
• Corner Radius: A rounded inner corner reduces stress concentration and lowers the chance of webbing wear at that point.

When customers send us a drawing, this is usually where we start the conversation — not the finish, not the logo, but whether the slot width actually matches the webbing they’ve already sourced.

Inside Our Factory: How This Part Is Actually Made

Raw zinc alloy ingots go into the die casting machine first, where the triangle shape and slot are formed under pressure in one shot. After casting, parts go through trimming to remove the flash left at the mold seam line. From there we run multiple stages of polishing, not one pass, because a single polishing stage tends to leave the recessed slot area and the curved outer edge with different levels of shine — running it through several stages evens that out before plating.

Electroplating comes next, and parts are hung rather than barrel-plated for this shape, since barrel plating can round off the slot edges we’re trying to keep sharp and even. After plating, we run salt spray testing on sample batches to check corrosion resistance under accelerated conditions, and every batch goes through 100% visual inspection before packing, not just spot-checking, because a die-cast triangle shape is easy to miss small casting voids on if you’re only sampling.

Factory Expert Tips

• How to choose slot width: Measure your finished webbing width after any edge folding, not the raw roll width — folded webbing is usually 1-2mm narrower.
• How to choose plating for outdoor pet products: Nickel plating generally outperforms bright chrome for long-term outdoor wear resistance on pet hardware.
• How to avoid scratching during shipping: Ask for individual pearl foam separation on polished/mirror finishes, not just bulk bagging, if the piece is a visible design element.
• How to evaluate a supplier’s casting quality: Ask for a sample under magnification at the inner slot corners — porosity or pitting shows up there first, before it shows anywhere else on the part.
• How to reduce return rate on harness programs: Test the actual sewn sample with your real webbing before committing to bulk tooling, not just the loose hardware piece.

Common Buying Mistakes

• Choosing a size based on a catalog photo instead of the stated slot width in millimeters.
• Assuming all “zinc alloy” listings use the same wall thickness — they don’t, and thickness drives strength more than the alloy name does.
• Ignoring plating type and only comparing price per piece.
• Not requesting a sewn sample before ordering bulk webbing to match the hardware.
• Overlooking mold capability when a custom inner diameter is needed — not every factory can adjust an existing mold economically.

Who This Hardware Is Best Suited For

Pet product brands developing mid-range to premium harnesses and collars are the best fit for this part, since it lets them combine a slide and a D-ring into one visible hardware point without adding assembly steps. Small-batch designer brands testing a new collar line can start with our stock sizes before committing to custom tooling. Larger OEM factories building private-label harness programs typically move to a custom inner diameter and matched plating once volume justifies it. This part is less suited to extreme working-dog applications where constant heavy pulling load is expected — for that use case we’d usually point a customer toward a thicker-wall or stainless steel option instead.

OEM Customization

Beyond the stock sizes shown here, we support custom mold development for non-standard inner diameters, laser or emboss logo marking on the flat face of the loop, and a full range of electroplating finishes to match an existing hardware set on a harness or collar line. Packaging can be adjusted to a customer’s private label requirements, including barcode and hang tag placement, and we can advise on retail box compatibility if the part is being sold as a standalone accessory rather than pre-installed on a finished product.

Real Application: From Webbing Width to Finished Harness

A European pet accessories brand we worked with came to us with a harness design where the triangle ring kept twisting on the back panel after a few weeks of use. When we looked at their sewn sample, the webbing width was slightly narrower than the slot, which let the hardware rotate instead of sitting flat. We adjusted the slot width by half a millimeter on a new mold insert and asked them to run a tighter bar tack at the base — a small, unglamorous fix, but it solved the complaint their customers had been sending back in returns.

Care & Maintenance

Zinc alloy hardware holds up well in everyday outdoor use, but a few things shorten its life faster than others. Repeated exposure to dog sweat and saliva around the collar area can accelerate plating wear over time, so a quick wipe-down after heavy use helps. Storing wet harnesses in sealed bags traps humidity against the metal and speeds up any early corrosion at the plating edges. During transport or bulk storage, keeping pieces separated rather than loose in a bin reduces surface-to-surface scuffing, which matters most on bright or mirror finishes. Routine cleaning with a dry or lightly damp cloth is sufficient — avoid harsh acidic cleaners, which can dull plated finishes faster than normal wear would.

FAQ

What is the MOQ for the triangle D-ring buckle?

Standard MOQ is 1000 pcs, negotiable based on order details such as finish, custom sizing, and total order value across multiple hardware items.

Do you offer free samples?

Stock samples in our standard sizes and finishes are free. Custom samples, such as a new inner diameter or a non-standard plating color, require a sampling fee, which is fully deducted from your bulk order once confirmed. Courier charges are borne by the customer.

Can you develop a custom mold for a new size?

Yes. We regularly develop custom tooling for inner diameters, slot widths, and wall thickness outside our standard range. Sample time for a new mold or custom sample is typically 5-7 days.

What is your production and delivery time?

Production time runs 10-15 days, and delivery time is typically 10-15 days depending on destination and shipping method.

Can you add a logo to this part?

Yes, laser marking, embossing, and debossing are all options on the flat loop face, depending on your logo complexity and the part’s surface area.

What plating options are available?

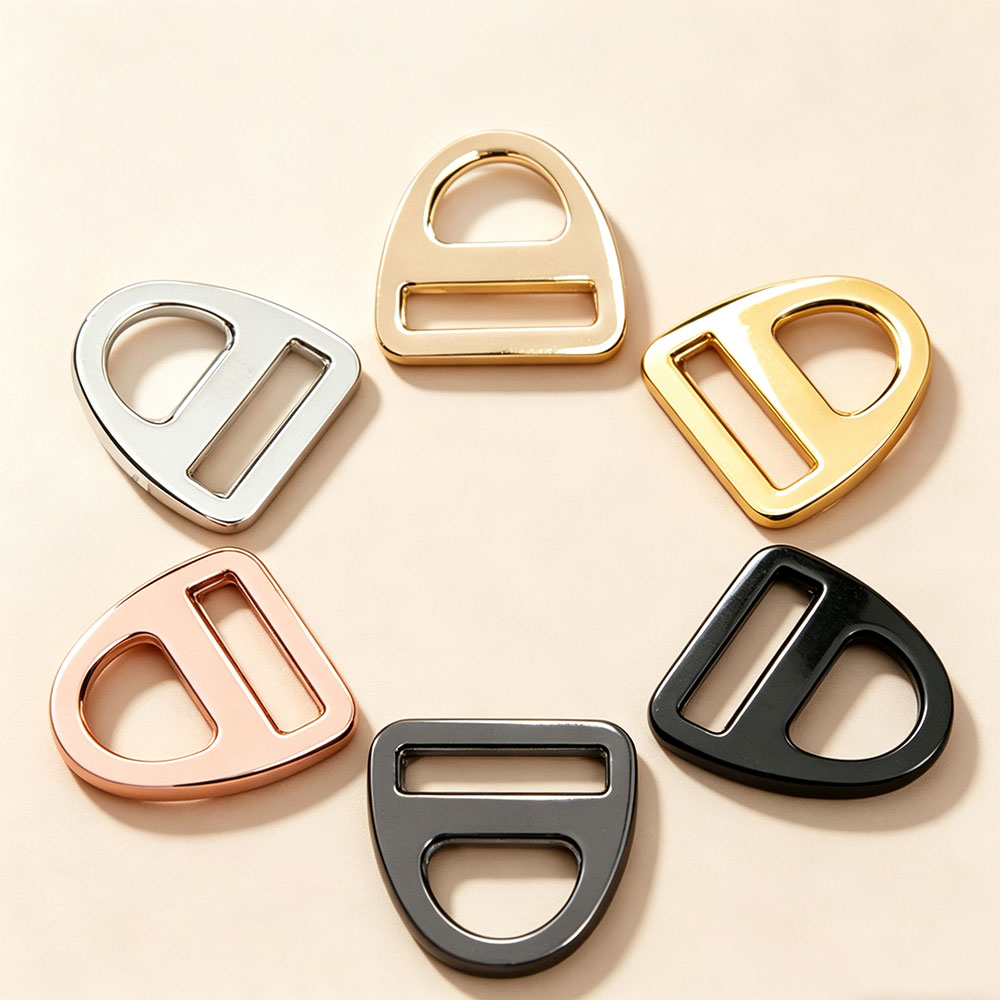

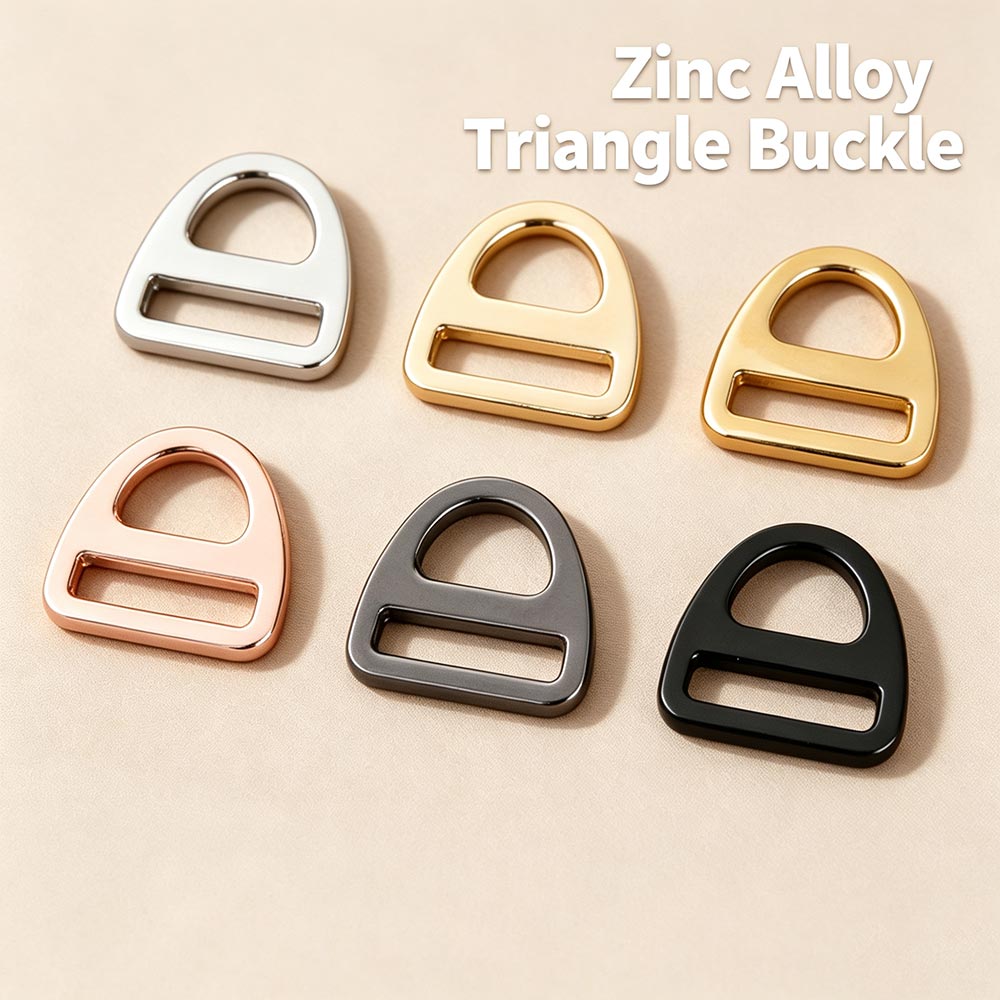

Common options include nickel, gunmetal/black, and matte silver, with custom plating colors available on request for larger orders.

How is this hardware packaged?

Standard packaging is pearl foam plus OPP bag plus export carton. Customized packaging, including private label boxes and hang tags, is available on request.

Do you provide quality certifications?

We maintain quality certification documentation and are happy to provide the current valid certificates upon request during your sourcing evaluation.

Why Work With DG Buddy

We’ve been running this factory for close to two decades, which mostly shows up in small ways — knowing which plating holds up on outdoor pet products, catching a slot-width mismatch before it becomes a customer complaint, or having tooling on hand for common inner diameters so a new customer doesn’t have to pay for a mold they don’t need. Our engineering team reviews drawings before sampling starts, not after, so early questions get caught early. Every batch goes through 100% inspection before packing, and our team stays responsive through sampling, production, and any adjustments that come up along the way — the kind of ongoing back-and-forth that OEM programs usually need.

Related Categories

• Metal Ring Hardware
• Metal Buckle Hardware

Related Products

• Swivel Snap Hook
• Metal D-Ring
• Tri-Glide Slide Buckle
• Metal Logo Plate

If you already have technical drawings for this size, send them over and we can confirm tooling compatibility before you commit to a sample order. If you’re still evaluating suppliers and want to compare plating and wall thickness options side by side, we’re happy to put together a small sample set so you can test fit with your own webbing before deciding.
